6
Initial Setup & Assembly
Assemble Turbo
1. Assemble the turbo. Install the bracket (A, Figure 5)
and upstop (B) as follows:
NOTE: Upstop (B. Figure 5) has short and long leg. The
difference is the thickness of bracket (A). Place long leg
on housing and short leg on top of bracket. Washer(s)
may need to be added under each leg of upstop if deflec-
tor contacts housing. See ADJUSTMENTS.
2. Install 1/4-20 x 7/8 capscrew (C) from inside turbo
housing. Place upstop (B) on capscrew and secure
with I/4-20 locknut (D).
3. Install 1/4-20 x 2-1/4" full thread capscrew (E)
through upstop (B), bracket (A), and housing. Secure
with 1/4-20 locknut. End of capscrew should touch
bottom housing surface.
4. Install 1/4-20 x 3/4 capscrew (F) to secure bracket to
housing. Secure with 1/4-20 locknuts (F).
Complete INITIAL INSTALLATION by proceeding with
the steps listed under NORMAL INSTALLATION.

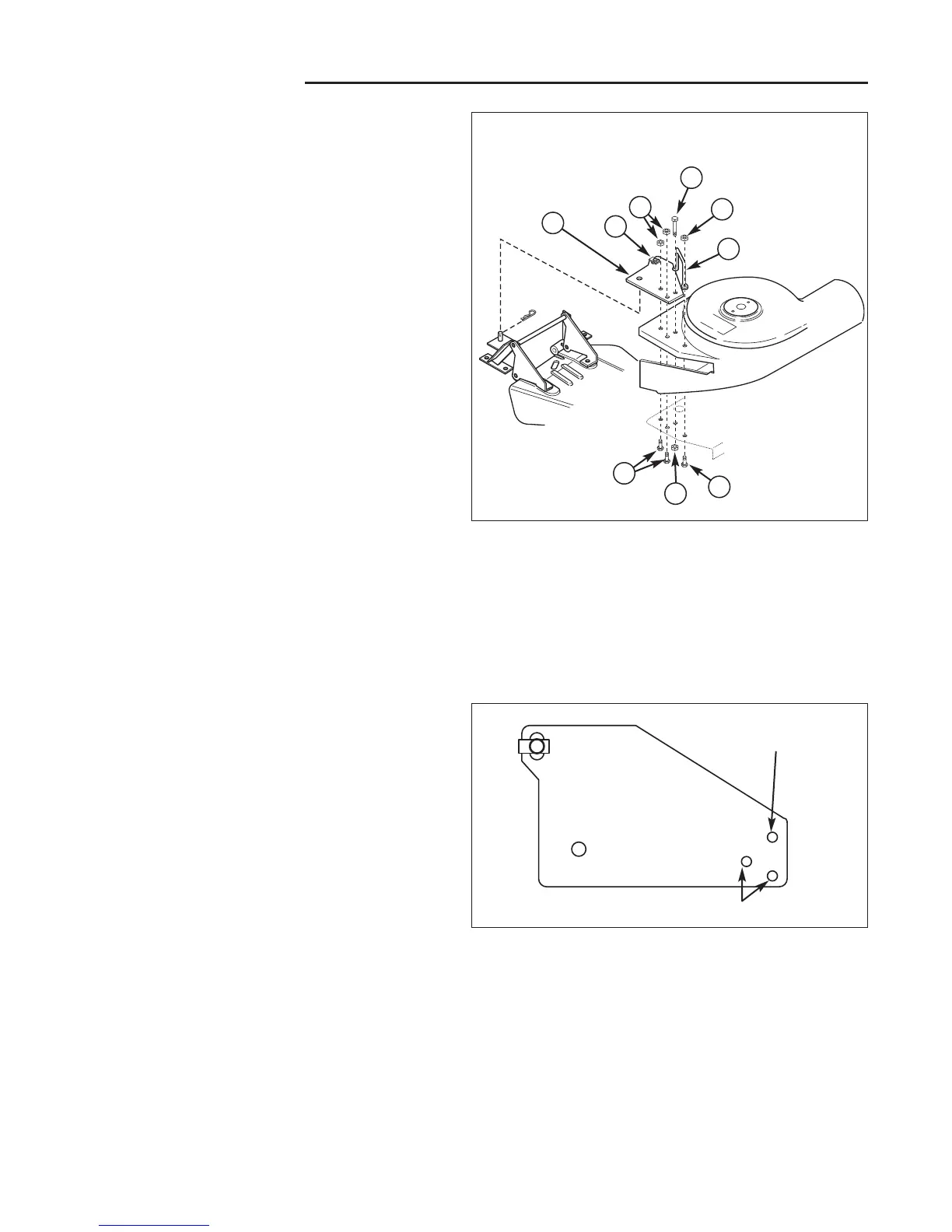

Figure 5. Assemble Turbo
A. Bracket
B. Upstop
C. Capscrew, 1/4-20 x 7/8
D. Locknut, 1/4-20
E. Capscrew, 1/4-20 x 2-1/4
F. Capscrew, 1/4-20 x 3/4
G. Speednut, 5/16
Figure 6. Bracket Hardware Placement
Upstop Capscrew
Bracket Capscrews
A
B
D
D
E
C
F
D
G
