Maintenance
Add Oil
1. Place engine level.
2. Clean the oil fill area of any debris.
3. See Specifications section for oil capacity.
4. Remove the dipstick (C, Figure 13) and wipe with clean
cloth.
5. Pour the oil slowly into the engine oil fill (D). DO NOT
overfill. Wait one minute and recheck the oil level.
6. Install and tighten dipstick.
7. Remove the dipstick and check the oil level. It should be
at the top of the full indicator (E) on the dipstick.
8. Install and tighten dipstick.
D
C
E

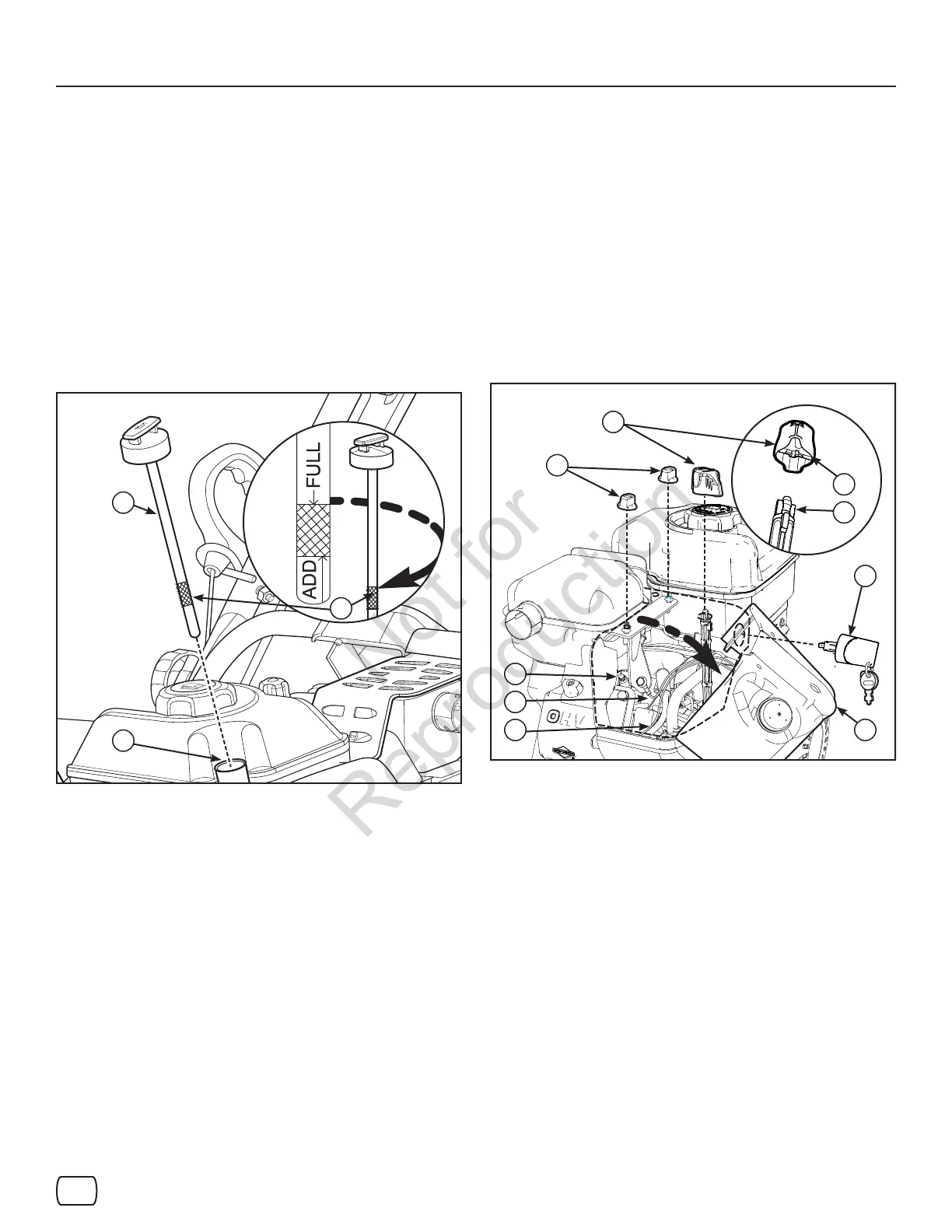

Figure 13
Access the Spark Plug
To access the spark plug, the snow hood must be removed
as follows:
1. Remove the ON/OFF key (A, Figure 14) or pull out the
from children.
2. Grasp the choke control (B) and pull up to remove.
3. Remove the mounting screws (C).
4. Carefully remove the top part of the snow hood (D). DO
NOT disconnect the primer hose (E) or the key wire (F).
5. Remove the spark plug (G) and replace (see
Specifications).
A
C
DE
F
G
B
I
H
Figure 14
6. Before installation of the snow hood, make sure the
primer hose and the key wire are connected.
7. Mount the top of the snow hood to the snow hood base.
Make sure the top interlocks with the base. Secure with
mounting screws .
8. Align the slots (H, Figure 14, Inset) in the choke knob
with the tabs on the choke shaft (I) and push down to
install. If knob is not installed correctly, the choke will
not operate.
9. DO NOT install the ON/OFF or Push/Pull key until you
are ready to start the engine.
