INSTALLATION
Weight Mount Installation
(Citation series)
Install Weight Carrier
1. Install the weight carrier (A, Figure 25) onto the
front of the unit and secure with the 1/2-20 x
1-1/4” bolts (B), 1/2” washers (C) and 1/2-20 nylon
lock nuts (D).
NOTE: Use outer holes in the weight carrier for the
Citation Series as shown.
2. Install the counter weights (E) in the weight carrier
and secure with the retaining pin (F) and hairpin
clips (G).

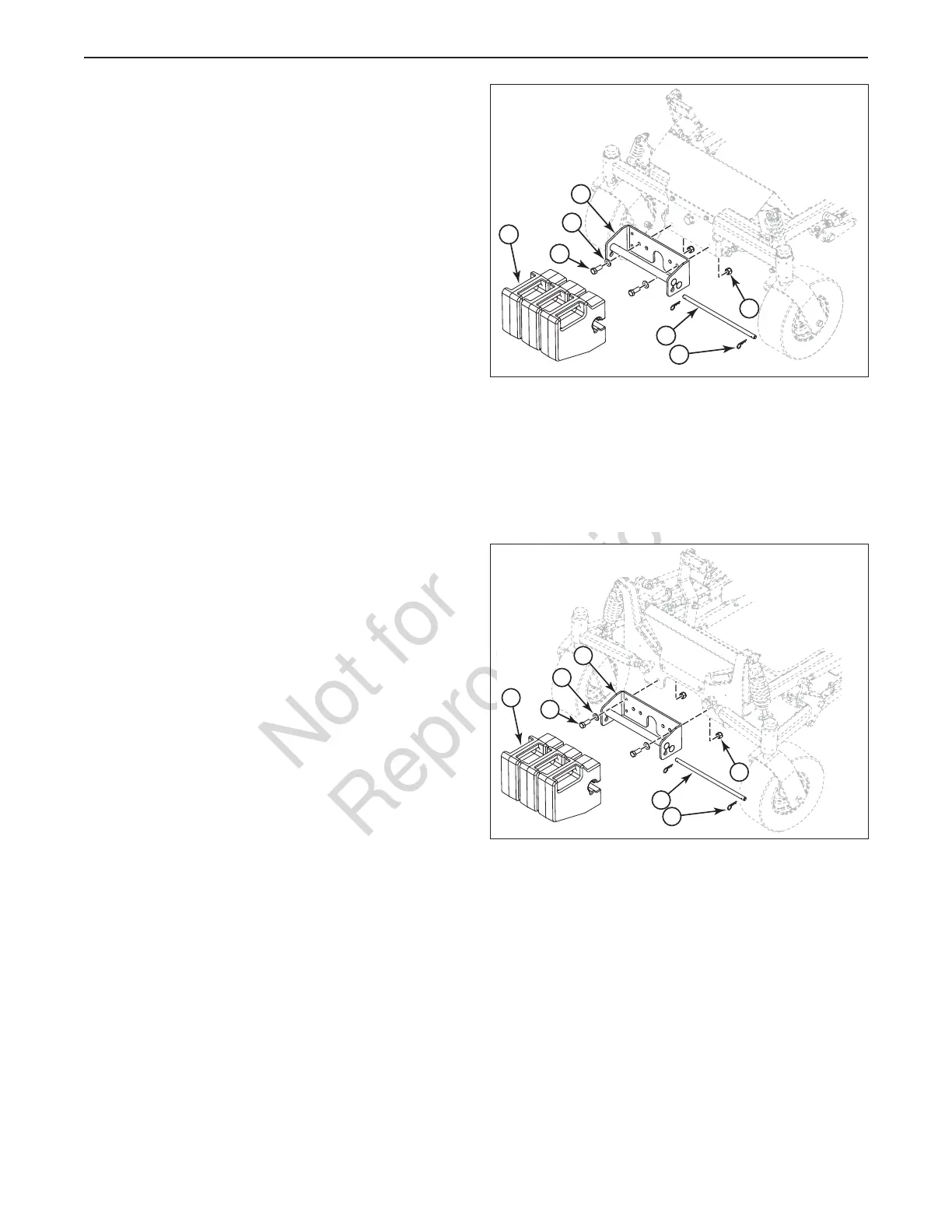

Figure 25. Install Weight Carrier
A. Weight Carrier
B. 1/2-20 x 1-1/4” Bolt
C. 1/2” SAE Washer
D. 1/2-20 Nylon Lock Nut
E. Weight
F. Retaining Pin
G. Hairpin Clip
Weight Mount Installation
(Cobalt Series)
Install Weight Carrier
1. Install the weight carrier (A, Figure 26) onto the
front of the unit and secure with the 3/8-16 x
1-1/4” bolts (B), 3/8” washers (C) and 3/8-16”
nylock flange nuts (G).
NOTE: Use top holes in the weight carrier for the
Cobalt Series as shown.
2. Install the counter weights (D) in the weight carrier
and secure with the retaining pin (E) and hairpin
clips (F).
Figure 26. Install Weight Carrier
A. Weight Carrier
B. 3/8-16 X 1-1/4” Bolt
C. 3/8” SAE Washer
D. Weight
E. Retaining Pin
F. Hairpin Clip
G. 3/8-16 Nylock Flange Nut
A
C
B
E
F
D
G
A
C
B
D
E
G
F
