Citation - 52” & 61” Mower Decks
7

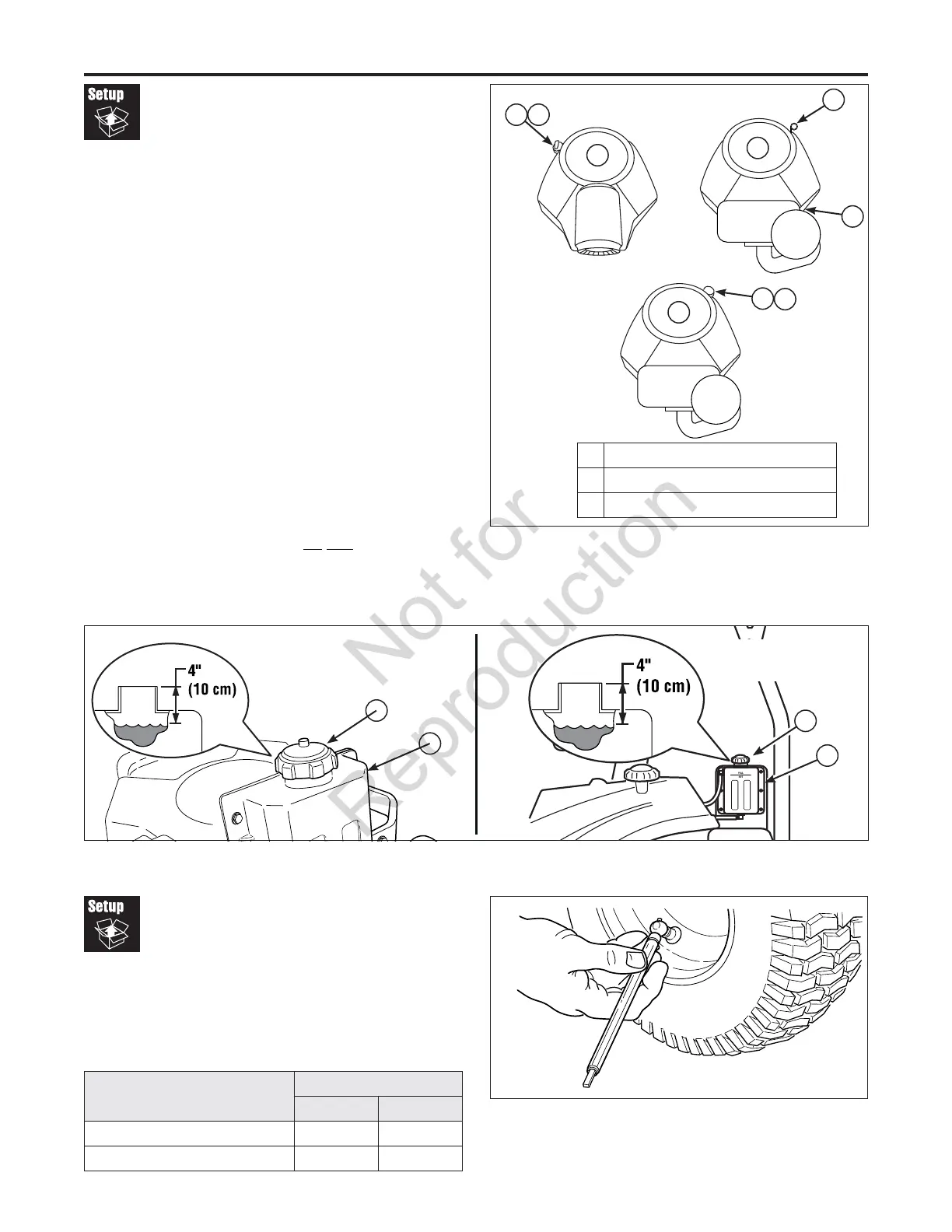

Check
Fluid Levels
Check Engine Oil Level
1. Use the engine oil dipstick (A, Figure 11) to check the
engine oil level. If necessary add engine oil through the
crankcase oil fill (B). Check the engine manufacturer’s
owner’s manual for oil recommendations.
Check Hydraulic Oil Level
NOTE: Do not open the hydraulic oil reservoir unless oil is
being added.
1. Before removing the reservoir cap, make sure the area
around the reservoir cap and the fill neck of the reservoir
is free of dust, dirt, or other debris.
2. Unscrew the reservoir cap (B, Figure 12).
3. Look down the filler neck of the hydraulic oil reservoir
(A) and observe the oil level. When cold, the oil level
should be approximately 4” (10 cm) below top of the
filler neck.
4. If necessary, add either Mobil 1™, 15W-50 synthetic oil
or Castrol Syntec™ 5W-50 oil. DO NOT use conventional
oils.
5. Reinstall the reservoir cap.
Figure 13. Checking Tire Pressure
Check Tire Pressures
Tire pressure should be checked periodically, and
maintained at the levels shown in the chart. Note that these
pressures may differ slightly from the “Max Inflation”
stamped on the side-wall of the tires. The pressures shown
provide proper traction, improve cut quality, and extend tire
life.
Figure 12. Checking Hydraulic Oil Level
A. Hydraulic Oil Reservoir
B. Reservoir Cap
A
B
Models w/ Center
Mounted Hydraulic Tank
A
B
Models w/ Side
Mounted Hydraulic Tank
Tire Pressure
psi bar
Front 25 1.72
Rear 15 1.03
A B
A
B
A
B
1
2
3
1 Briggs & Stratton Commercial Turf
2 Briggs & Stratton Vanguard
3 Kawasaki
Figure 11. Pre-start Checks
A. Dipstick
B. Oil Fill
