OPERATING
CONTROLS
&
INSTRUMENTS

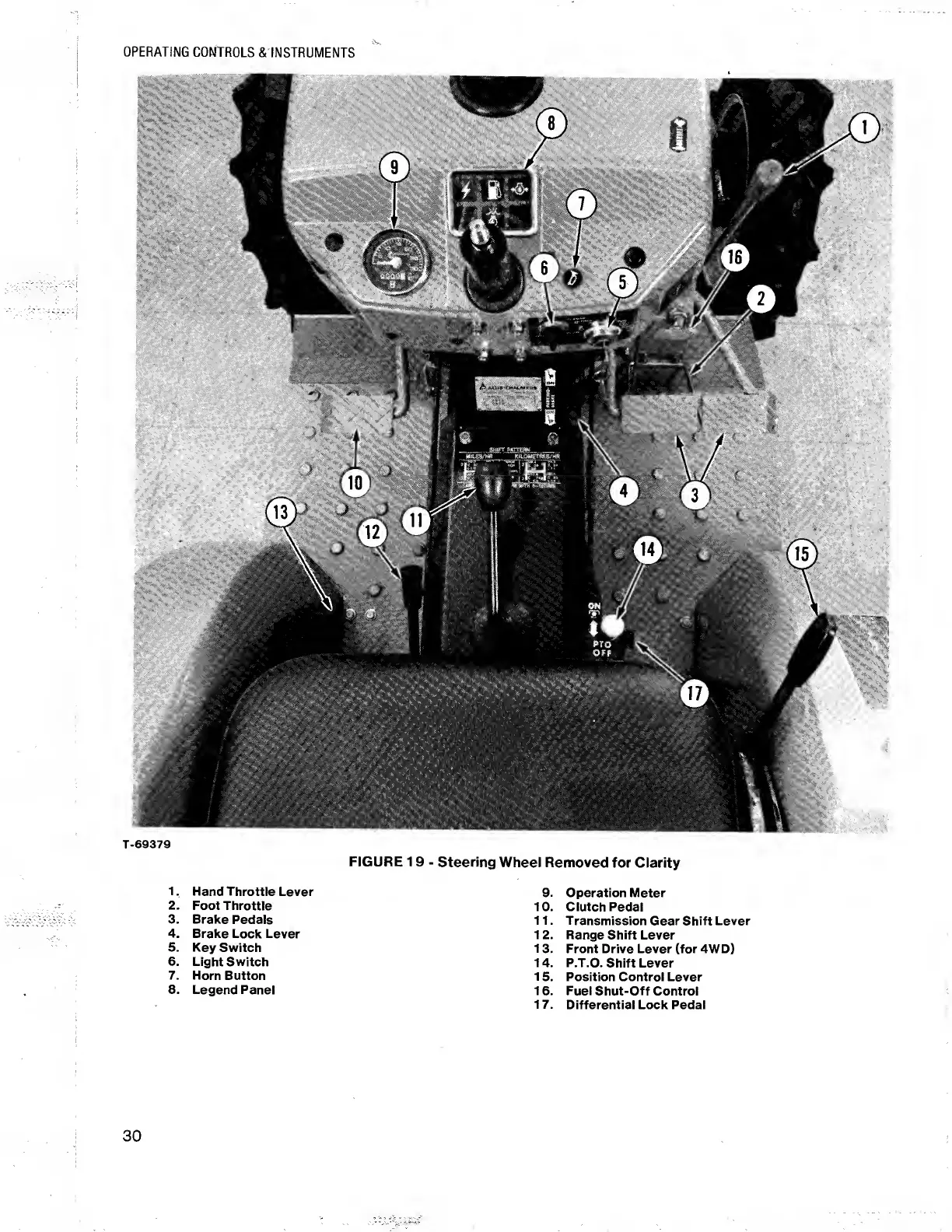

FIGURE
19
-
Steering
Wheel
Removed
for
Clarity
1.
Hand
Throttle
Lever
2.
Foot
Throttle
3.
Brake
Pedals
4.
Brake
Lock
Lever
5.
Key
Switch
6.
Light
Switch
7.
Horn
Button
8.
Legend
Panel
9.
O
peration
Meter
10.
Clutch
Pedal
11.
Transmission
Gear
Shift
Lever
12.
Range
Shift
Lever
13.
Front
Drive
Lever
(for
4WD)
14.
P.T.O.
Shift
Lever
15.
Position
Control
Lever
16.
Fuel
Shut-Off
Control
17.
Differential
Lock
Pedal
30
