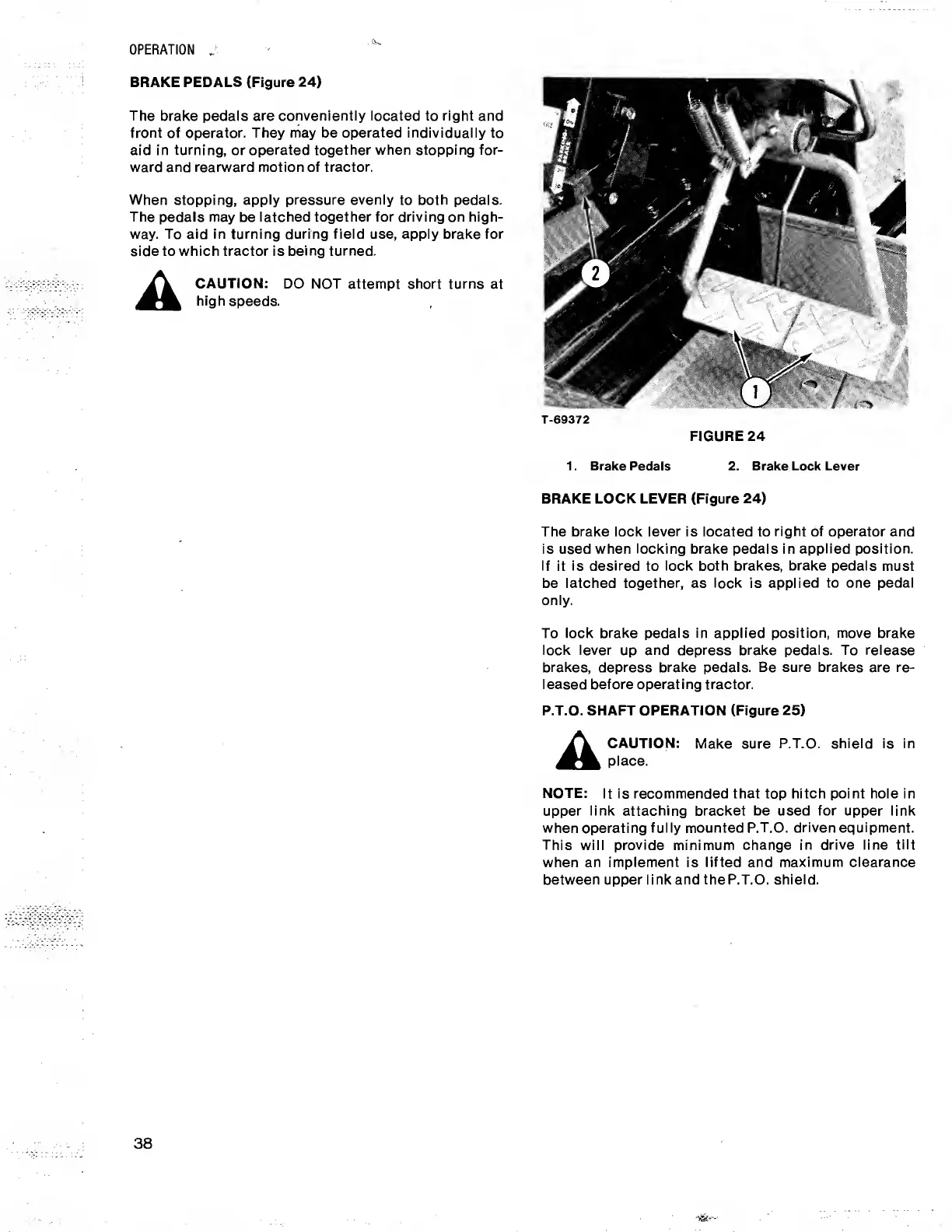

OPERATION
.
BRAKE
PEDALS
(Figure
24)
The
brake
pedals
are
conveniently
located
to
right
and
front
of
operator.
They
may
be
operated
individually
to
aid
in
turning,
or
operated
together
when
stopping
for¬
ward
and
rearward
motion
of
tractor.
When
stopping,
apply
pressure
evenly
to
both
pedals.
The
pedals
may
be
latched
together
for
driving
on
high¬
way.
To
aid
in
turning
during
field
use,
apply
brake
for
side
to
which
tractor
is
being
turned.
CAUTION:
DO
NOT
attempt
short
turns
at
high
speeds.
T-69372
FIGURE
24
1.
Brake
Pedals
2.
Brake
Lock
Lever
BRAKE
LOCK
LEVER
(Figure
24)
The
brake
lock
lever
is
located
to
right
of
operator
and
is
used
when
locking
brake
pedals
in
applied
position.
If
it
is
desired
to
lock
both
brakes,
brake
pedals
must
be
latched
together,
as
lock
is
applied
to
one
pedal
only.
To
lock
brake
pedals
in
applied
position,
move
brake
lock
lever
up
and
depress
brake
pedals.
To
release
brakes,
depress
brake
pedals.
Be
sure
brakes
are
re¬
leased
before
operating
tractor.
P.T.O.
SHAFT
OPERATION
(Figure
25)
CAUTION:
Make
sure
P.T.O.
shield
is
in
place.
NOTE:
It
is
recommended
that
top
hitch
point
hole
in
upper
link
attaching
bracket
be
used
for
upper
link
when
operating
fully
mounted
P.T.O.
driven
equipment.
This
will
provide
minimum
change
in
drive
line
tilt
when
an
implement
is
lifted
and
maximum
clearance
between
upper
link
and
theP.T.O.
shield.
38
