MISCELLANEOUS,
OPTIONAL,
AND
EXTRA
EQUIPMENT

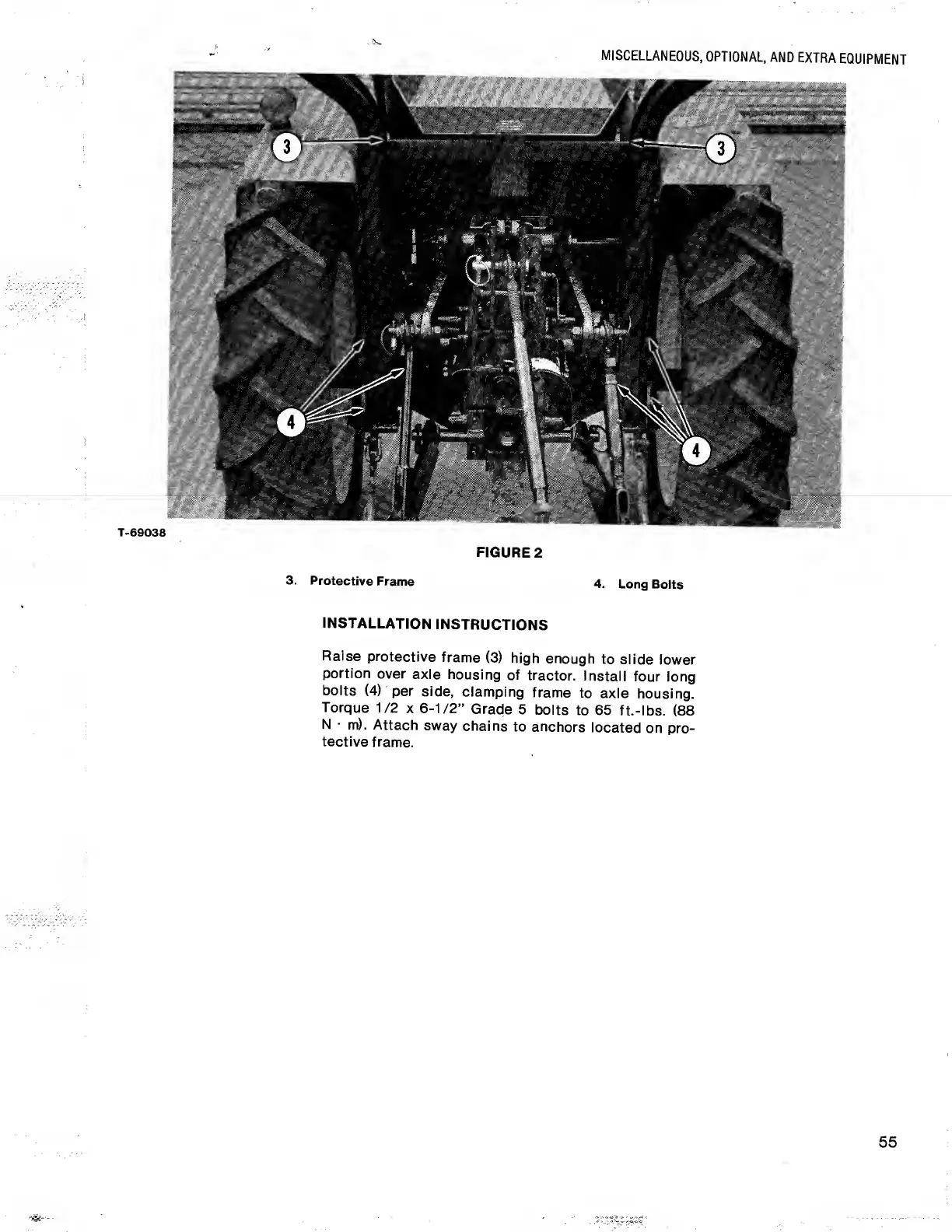

FIGURE
2
3.
Protective
Frame
4.
Long
Bolts
INSTALLATION
INSTRUCTIONS
Raise
protective
frame
(3)
high
enough
to
slide
lower
portion
over
axle
housing
of
tractor.
Install
four
long
bolts
(4)
per
side,
clamping
frame
to
axle
housing.
Torque
1/2
x
6-1/2”
Grade
5
bolts
to
65
ft.-lbs.
(88
N
■
m).
Attach
sway
chains
to
anchors
located
on
pro¬
tective
frame.
