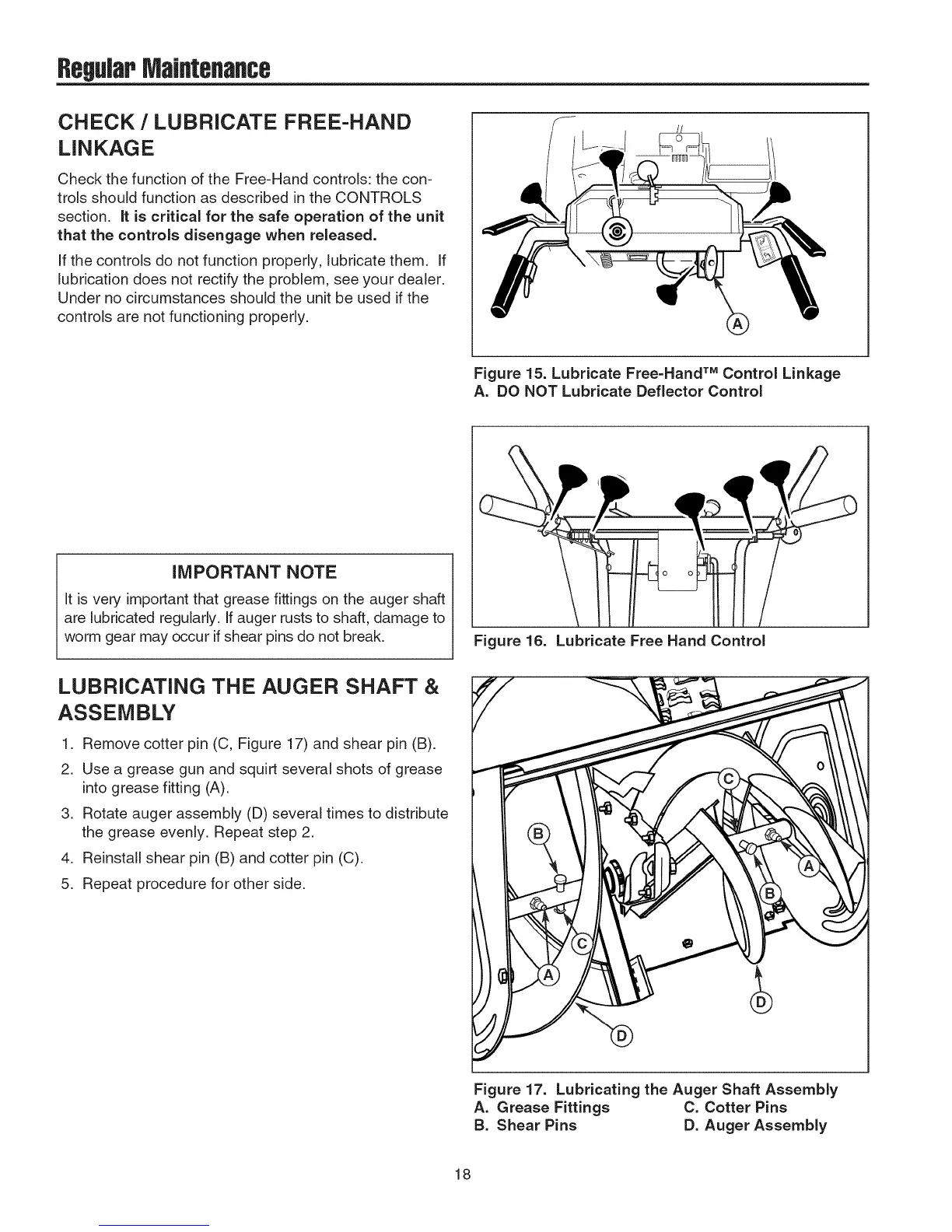

ReBWPMaintenance
CHECK / LUBRICATE FREE-HAND
LINKAGE
Check the function of the Free-Hand controls: the con-
trois should function as described in the CONTROLS
section. It is critical for the safe operation of the unit
that the controls disengage when released.
If the controls do not function properly, lubricate them. If
lubrication does not rectify the problem, see your dealer.
Under no circumstances should the unit be used if the
controls are not functioning properly.
Figure 15. Lubricate Free-Hand TM Control Linkage
A. DO NOT Lubricate Deflector Control
IMPORTANT NOTE
It is very important that grease fittings on the auger shaft
are lubricated regularly. If auger rusts to shaft, damage to
worm gear may occur if shear pins do not break.
LUBRICATING THE AUGER SHAFT &
ASSEMBLY
1. Remove cotter pin (C, Figure 17) and shear pin (B).
2. Use a grease gun and squirt several shots of grease
into grease fitting (A).
3. Rotate auger assembly (D) several times to distribute
the grease evenly. Repeat step 2.
4. Reinstall shear pin (B) and cotter pin (C).
5. Repeat procedure for other side.
Figure 16. Lubricate Free Hand Control
®
Figure 17. Lubricating the Auger Shaft Assembly
A. Grease Fittings C. Cotter Pins
B. Shear Pins D. Auger Assembly
18
