Simplicity Baron XL - Engine Group - 18 HP & 20 HP Briggs & Stratton VANGUARD Twin

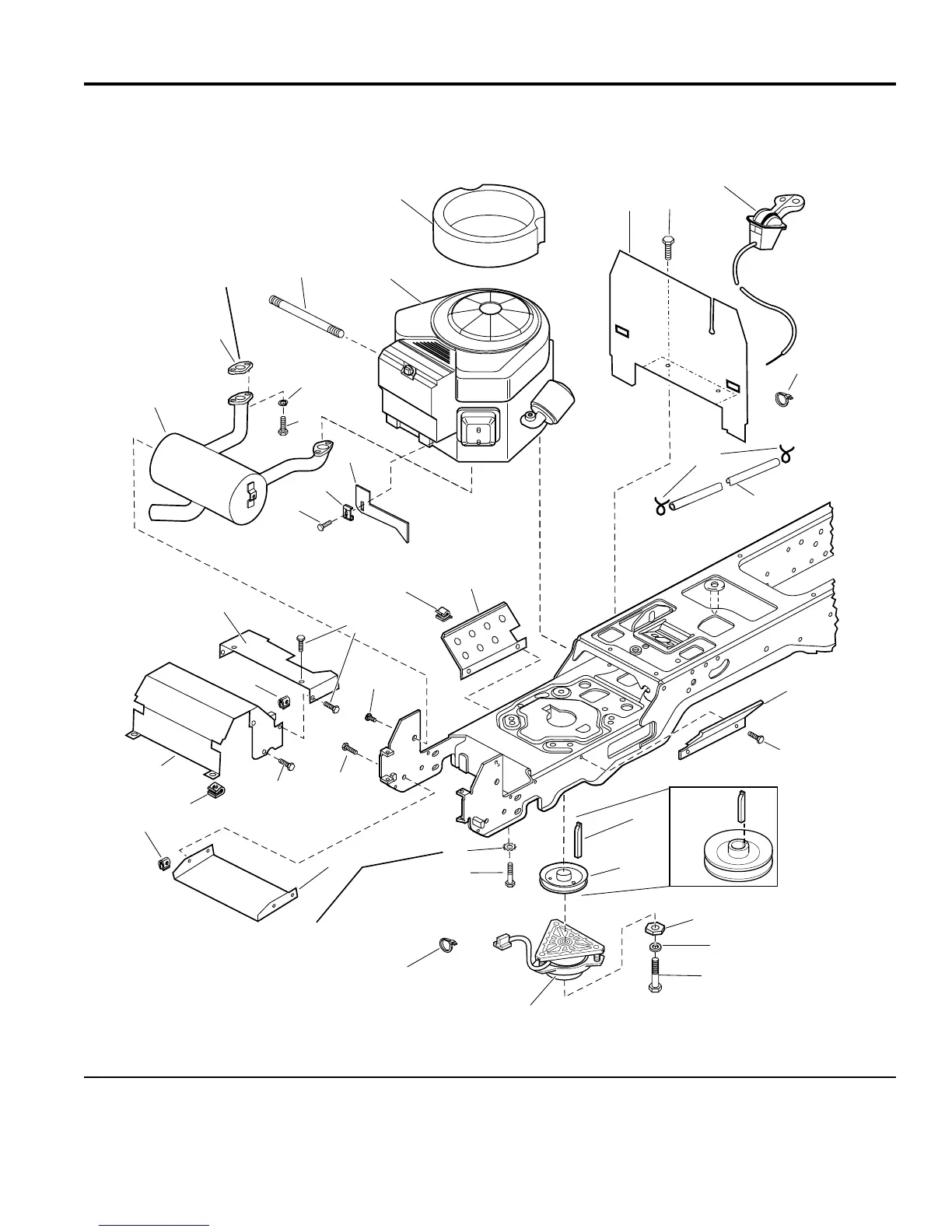

Engine Group - 18HP & 20HP Briggs & Stratton, VANGUARD Twin
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Engine Manufacturer
Gasket & Hardware,
Torque to 18 ft. lbs.
(25 Nm)
Tie clutch wire
to keep away
from pulley.
Torque to
45-50 ft. lbs.
(61 - 68 Nm)
Torque to
19-23 ft. lbs.
(26 - 31 Nm)
Note:
Orientation
of All Keys
Install between Frame &
Ground cable on RH
rear engine capscrew.
Tie cables to Left
Hand side fo shield.
23
21
25
18
24
22
19
26
20
33
30
27
34
29
28
8
12
16
9
11
13
10
15
32
19
30
35
2
1
4
18
31
17
14
32
5
6
3
7
986833
The above parts group applies to the following Mfg. Nos.:
2005
10
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694671 - Baron XL
1694673 - Baron XL
TP 400-4198-00-BR-SM
