Regular Maintenance
WARNING
Gasoline is highly flammable and must be
handled with care. Never fill the tank when the
engine is still hot from recent operation. Do not
allow open flame, smoking or matches in the
area. Avoid over-filling and wipe up any spills.
Do not remove fuel filter when engine is hot, as
spilled gasoline may ignite. DO NOT spread hose
clamps further than necessary. Ensure clamps
grip hoses firmly over filter after installation.

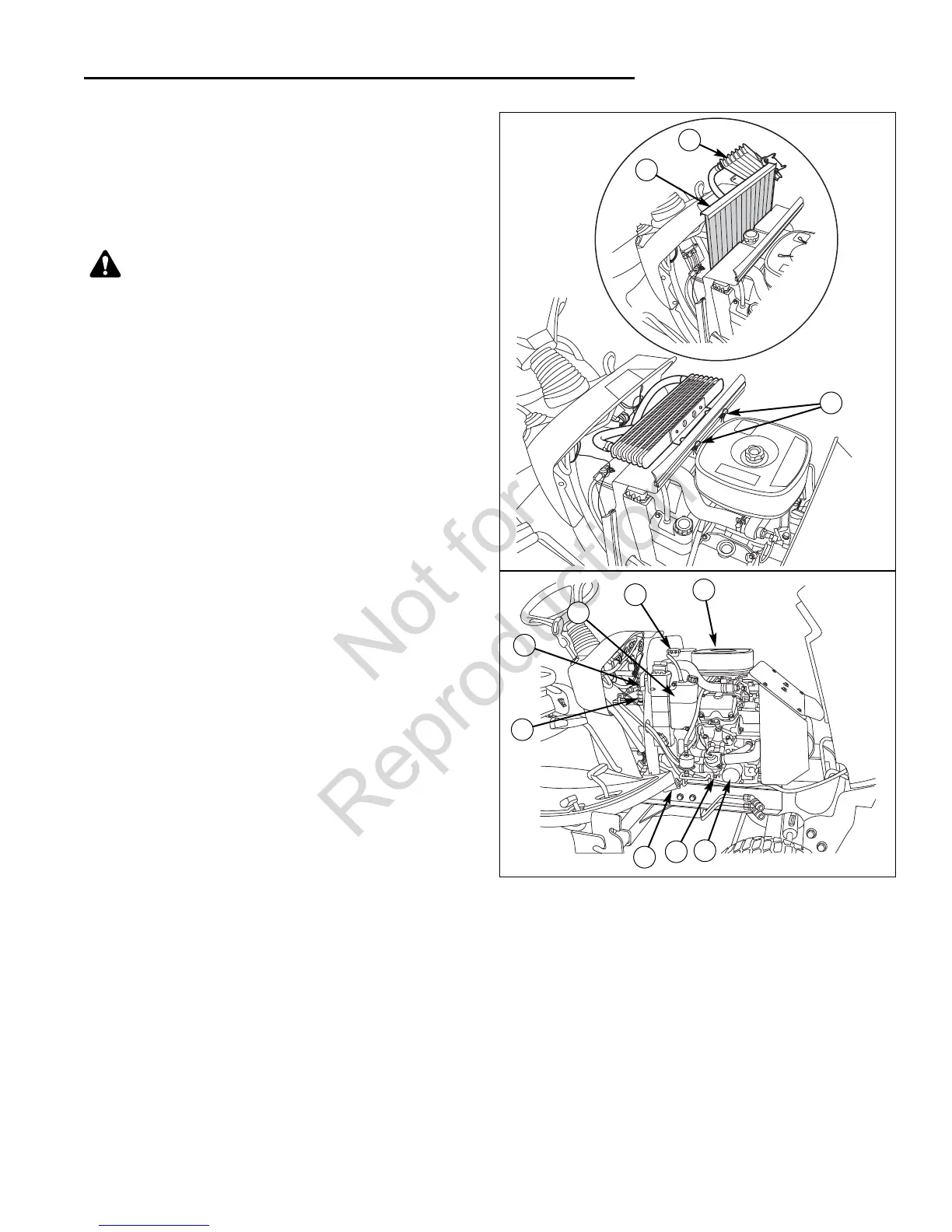

Figure 26. Engine - Kawasaki Models
A. Air Filter
B. Radiator Fill Cap
C. Transmission Oil Cooler
D. Radiator Screen
E. Cooling System Drain Plug
F. Fuel Filter
G. Oil Filter
H. Oil Drain Valve (Bottom LH Side of Engine)
I. Coolant Reservoir
J. Hair Pin Clips
D
D
J
E
F
B
I
C
C
A
G
CHANGE FUEL FILTER -
GAS MODELS
Service Interval: Every 100 Hours, or As Necessary
Models with Kohler engines see E, Figure 24. Models
with Kawasaki engines see F, Figure 26. If the filter is
dirty or clogged, replace as follows:
1. Disconnect the negative battery cable.
2. Place a container below the filter to catch spilled fuel.
3. Using a pliers, open and slide hose clamps from fuel
filter.
4. Remove hoses from filter.
5. Install new filter in proper flow direction in fuel line.
6. Secure fuel line with hose clamps.
7. Reconnect the negative battery cable when finished.
CHANGE ENGINE COOLANT - LIQUID
COOLED MODELS ONLY
See Engine Manual for antifreeze recommendations and
change intervals. See Figures 25 & 26 for drain plug
locations.
