Simplicity Snow Plow/Dozer Blade User Manual

42” Snow Plow/Dozer Blade
7. Insert front of push bar (A, figure 7) into pivot
frame on rear of blade. Then install king pin (C)
down thru holes in
hitch and pivot frame. Secure
king pin (C) with spring clip (D).
8. Using king pin as the pivot, swivel push bar to
align holes for pivot pin (E). Then install pivot pin
downward thru holes in blade and push bar. The
pivot pin can be installed in any of three holes,
depending on desired blade angle.
3
:.,
j.. :
I

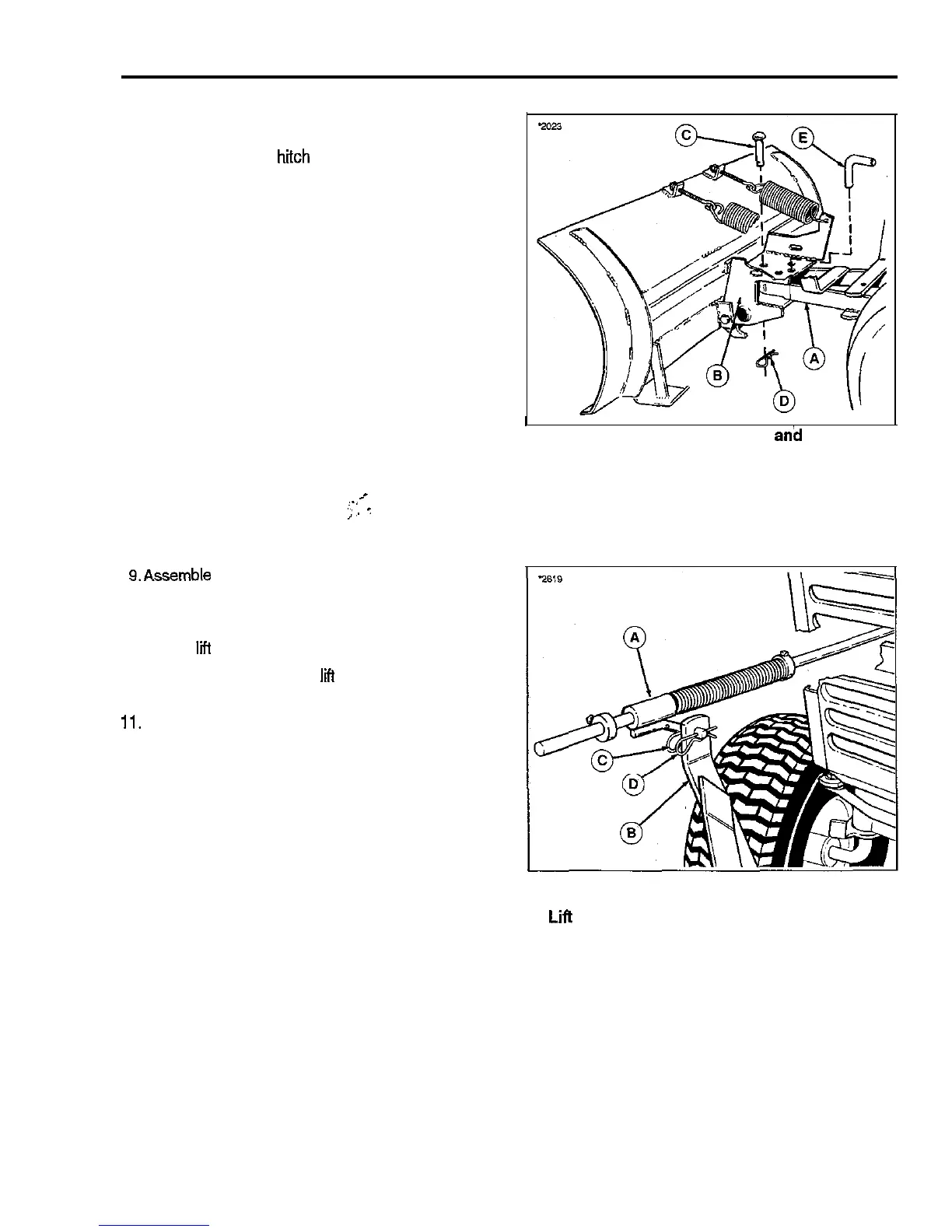

Figure 7. Dozer Blade Assembled and Installed
A. Push Bar D. Spring Clip
B. Pivot Frame E. Pivot Pin
C. King Pin
9,Assemble lift rod as shown in figure 8. (The
exploded view illustration is shown in figure 1.)
Insert tip of rod guide (A, figure 8) thru hole in lift
arm (B) of push bar. Trap the rod guide on each
side of
lift arm with spring clips (C and D).
10. Connect rear of lift rod to lift lever mounted on
tractor using the spring clip.
il. Perform adjustments, see page 9.
Figure 8.
A. Rod Guide
B.
Lift Arm (Push Bar)
C. Outer Spring Clip
D. Inner Spring Clip
7
