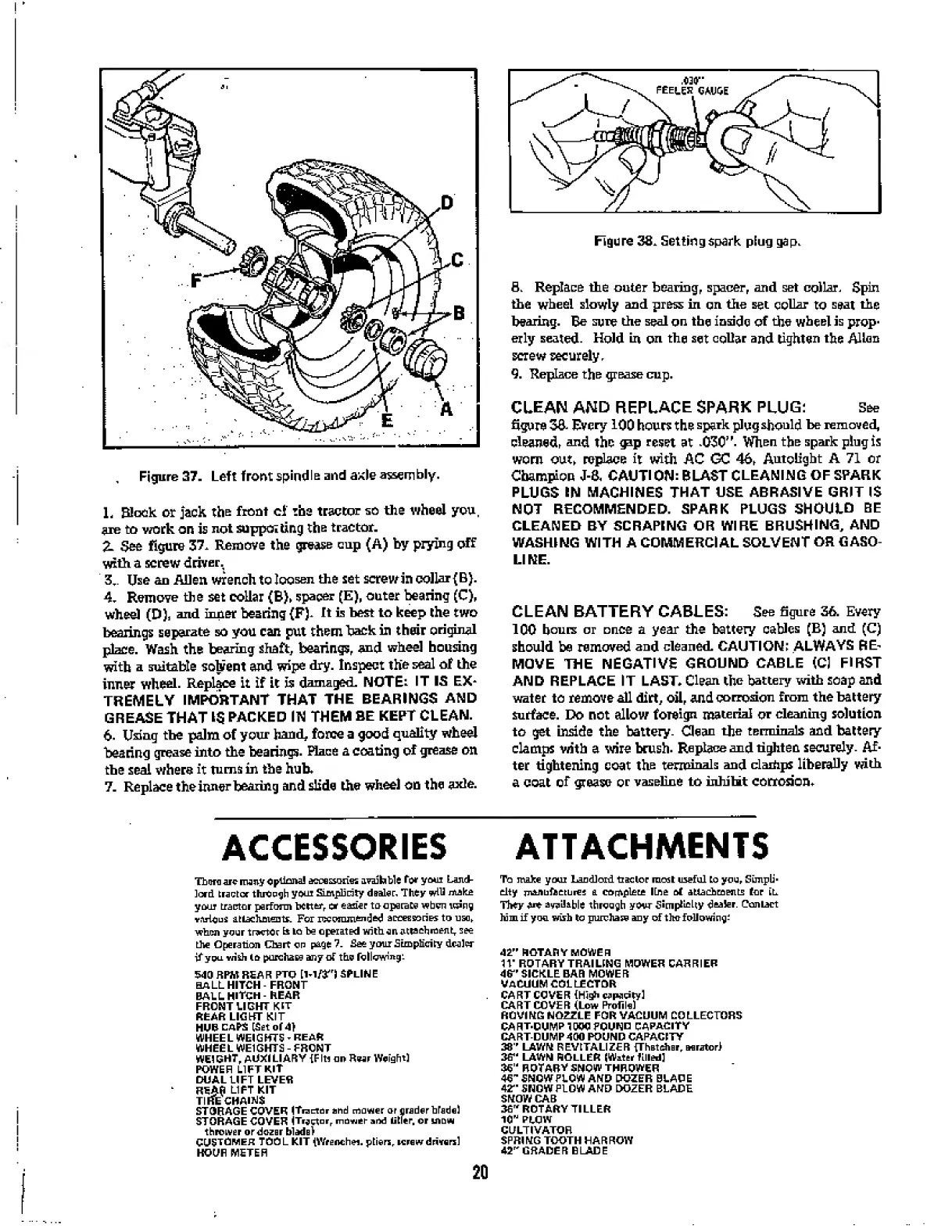

Figure 37. Left front spindle and a>de assembly.
L Block or jack the front cl :ha tractor so the wheel you,
are to work on is not supposing the tractor.
% See figure 37. Remove the grease cup (A) by prying off
with a screw driver.
3.. Use an Alien wrench to loosen the set screwin collar {B}.
4* Remove the set collar (B), spacer (E), outer bearing (C),
wheel (D), and inner bearing {F). It is best to keep the two
bearings separate so you can put them back in their original
place. Wash the bearing shaft, bearings, and wheel housing
with a suitable solvent and wipe dry. Inspect the seal of the
inner wheel. Replace it if it is damaged. NOTE: IT 13 EX¬
TREMELY IMPORTANT THAT THE BEARINGS AND
GREASE THAT IS PACKED IN THEM BE KEPT CLEAN.
6. Using the palm of your hand, force a good quality wheel
bearing grease into the bearings. Place a coating of grease on
tbe seal where it turns in tbe hub.
7. Replace the inner bearing and slide the wheel on the axle.
Figure 38. Setting spark plug gap.
8. Replace the outer bearing, spacer, and set collar. Spin
the wheel slowly and press in on the set collar to seat the
bearing. Be sure the seal on the inside of the wheel is prop¬
erly seated- Hold in on the set collar and tighten the Allen
screw securely.
9. Replace the grease cup.
CLEAN AND REPLACE SPARK PLUG: See
figure 3& Every 100 hours the spark plug should be removed,
cleaned, and the <pp reset at .030”. When the spark plug is
worn out, replace it with AC GC 46, Autolight A 71 or
Champion J-& CAUTION: BLAST CLEANING OF SPARK
PLUGS IN MACHINES THAT USE ABRASIVE GRIT IS
NOT RECOMMENDED. SPARK PLUGS SHOULD BE
CLEANED BY SCRAPING OR WIRE BRUSHING, AND
WASHING WITH A COMMERCIAL SOLVENT OR GASO¬
LINE.
CLEAN BATTERY CABLES: See figure 36. Every
100 boms or once a year the battery cables [B] and (C)
should be removed and cleaned. CAUTION: ALWAYS RE¬
MOVE THE NEGATIVE GROUND CABLE (Cl FIRST
AND REPLACE IT LAST* Clean the battery with soap and
water to remove all dirt, oil, and corrosion from the battery
surface. Do not allow foreign material or cleaning solution
to get inside the battery, dean the terminals and battery
clamps with a wire brush. Replace and tighten securely. Af¬
ter tightening coat the terminals and claihps liberally with
a coat of grease or vaseline to inhitit corrosion*
ACCESSORIES ATTACHMENTS
Th wo art many Optional acceasoiifls available tor your Land¬
lord tractor through youi Simplicity dealer, They wLU make
your tractor parform better. Dr saner too pa rate when using
various attachmenti. For recommended aroeesoriK to use,
when your troctCr Es la be operated with an attachment, see
the Operation Chart tin page 7. See your Simplicity dealer
if you wish la pore ha te any of the following
540 RPM REAR PTO [l-l/tf r > SPLINE
BALL HITCH - FRONT
BALLHlTCH- REAR
FRONT LIGHT KIT
REAR LIGHT KIT
HUB CAPS [Set of 4}
WHEEL WEIGHTS-REAR
WHEEL WEIGHTS - FRONT
WEIGHT, AUXILIARY [Flti on Rear Weight]
POWER LIFT KIT
DUAL LIFT LEVER
REAS LIFT KIT
TIRE CHAINS
STORAGE COVER (Tracrcir and mower or grader hradel
STORAGE COVER iTrjttnr, mower and Utler. or mow
thrower or dozer blade!
CUSTOMER TOOL KIT [Wrencher. ptien. renew driven]
HOUR METER
To make your Landlord tractor most useful to you. Simpli¬
city manufactures a complete ILne oI attachments (or lL
They Ait available through yOw Simplicity dealer. Contact
him if you wirh to pure ham any of the following:
42” ROTARYmOWER
IV ROTARY TRAILING MOWER CARRIER
46” SICKLE BAR MOWER
VACUUM COLLECTOR
CART COVER (Htfi opacity]
CART COVER [Low Profile!
ROVING NOZZLE FOR VACUUM COLLECTORS
CART-DUMPIOM POUND CAPACITY
CART-DUMP 400 POUND CAPACITY
38” LAWN REVtTALIZER [Thatcher, aerator!
36” LAWN ROLLER (Water filled]
36“ ROTARY SNOW THROWER
«" SNOWPLOW AND DOZER BLADE
42" SNOWPLOW AND DOZER BLADE
SNOW CAB
36” ROTARY TILLER
10" PLOW
CULTIVATOR
SPRING TOOTH HARROW
42” GRADER BLADE
