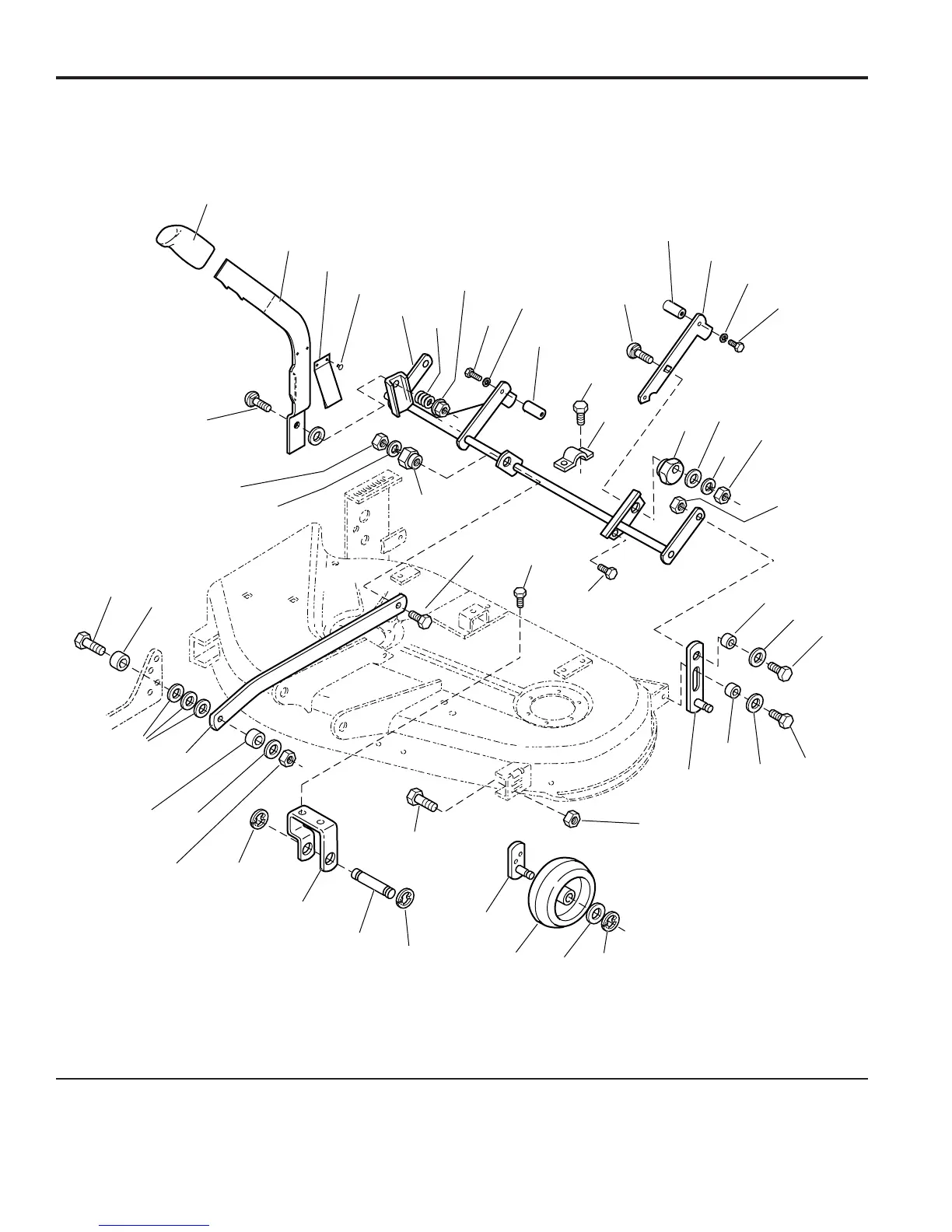

38” Mower Deck - Height Adjustment & Rollers
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-42514A
The above parts group applies to the following Mfg. Nos.:
1692912 38” Mower Deck
1692913 38” Mower Deck
1
2
3
4
5
6
7
8
9
10
11
12
7
13
13
14
7
12
15
16
17
18
19
20
21
22
16
42
23
23
27
28
30
31
32
33
30
34
35
30
11
36
37
38
363636
39
40
26
24
24
25
29
41
