SIMPLIHOME Bedford - STEP 3: Attaching the Top Panel

ASSEMBLY
STEP 3
MODEL # 3AXCBED-03

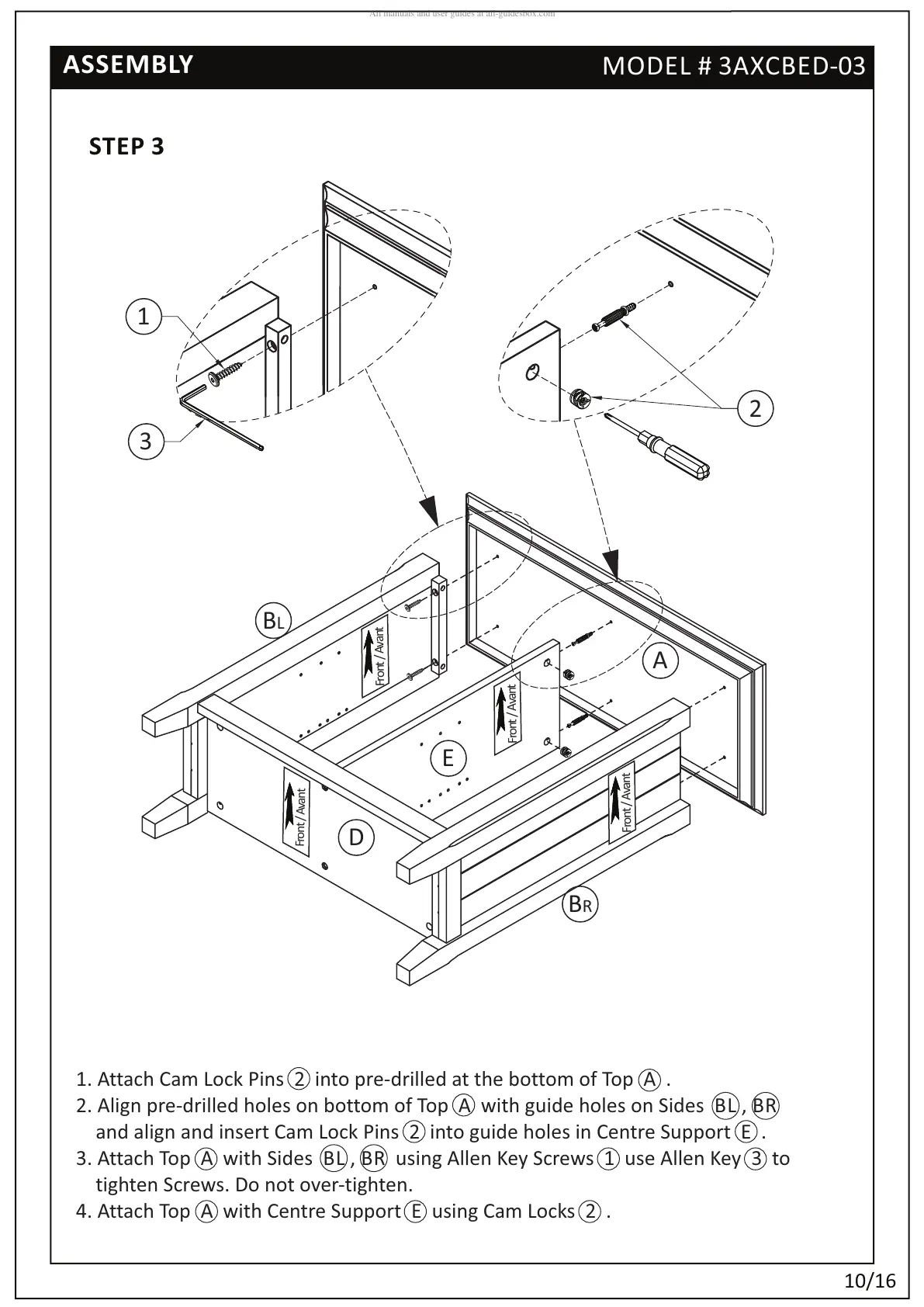

1. Attach Cam Lock Pins 2 into pre-drilled at the bottom of Top A .
2. Align pre-drilled holes on bottom of Top A with guide holes on Sides BL , BR
and align and insert Cam Lock Pins 2 into guide holes in Centre Support E .
3. Attach Top A with Sides BL , BR using Allen Key Screws 1 use Allen Key 3 to
tighten Screws. Do not over-tighten.
4. Attach Top A with Centre Support E using Cam Locks 2 .
10/16
