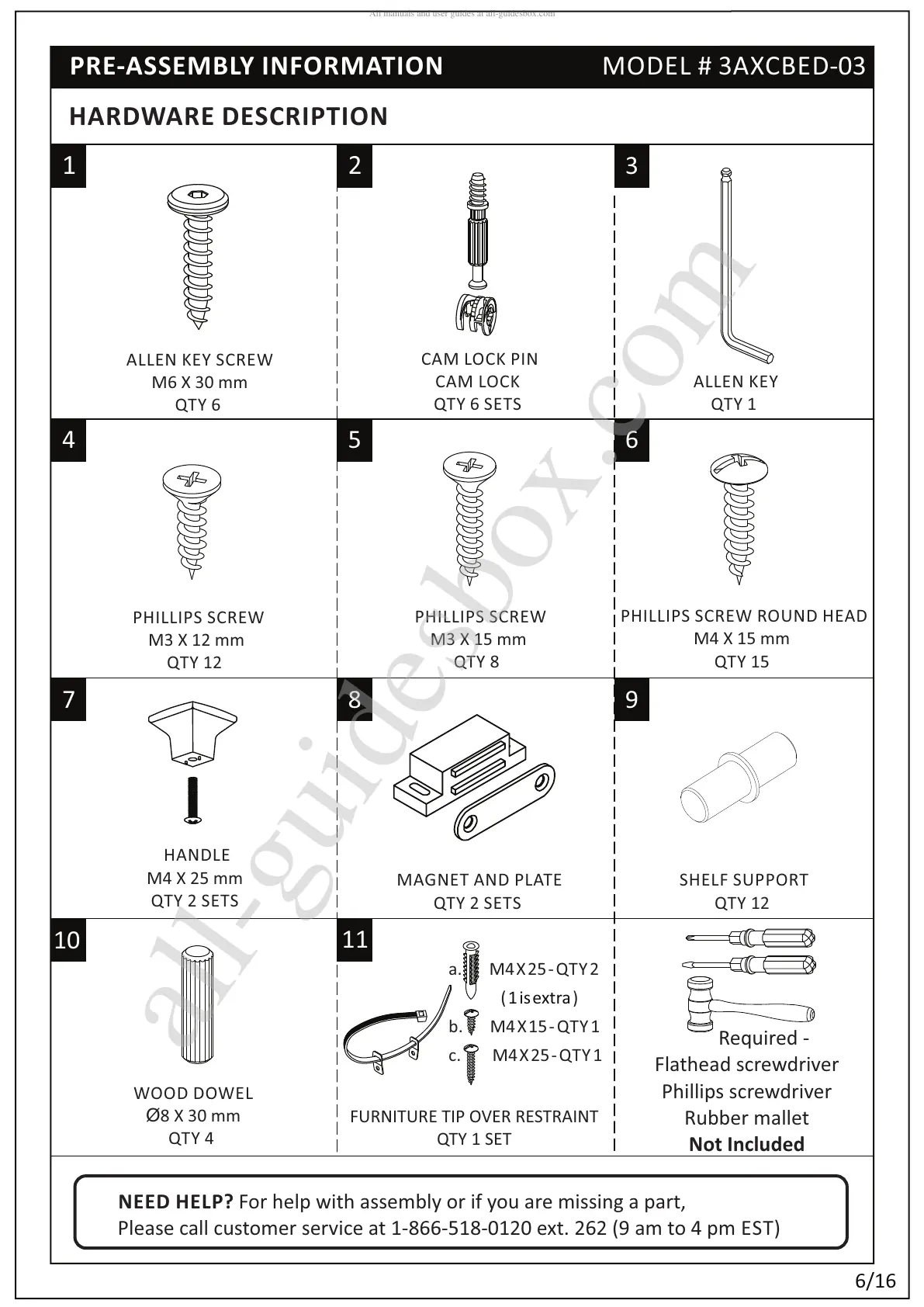

SIMPLIHOME Bedford - HARDWARE DESCRIPTION

1
PRE-ASSEMBLY INFORMATION
HARDWARE DESCRIPTION
2 3
4 5
NEED HELP? For help with assembly or if you are missing a part,
Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST)
6
7
10
8
11
9
MODEL # 3AXCBED-03
ALLEN KEY SCREW
M6 X 30 mm
QTY 6
PHILLIPS SCREW
M3 X 12 mm
QTY 12
HANDLE
M4 X 25 mm
QTY 2 SETS
WOOD DOWEL
Ø8 X 30 mm
QTY 4
CAM LOCK PIN
CAM LOCK
QTY 6 SETS
PHILLIPS SCREW
M3 X 15 mm
QTY 8
MAGNET AND PLATE
QTY 2 SETS
ALLEN KEY
QTY 1
PHILLIPS SCREW ROUND HEAD
M4 X 15 mm
QTY 15
SHELF SUPPORT
QTY 12
6/16
Required -
Flathead screwdriver
Phillips screwdriver
Rubber mallet
Not Included
FURNITURE TIP OVER RESTRAINT
QTY 1 SET
a. M4 X 25 - QTY 2
( )1 is extra
b. M4 X 15 - QTY 1
c. M4 X 25 - QTY 1
