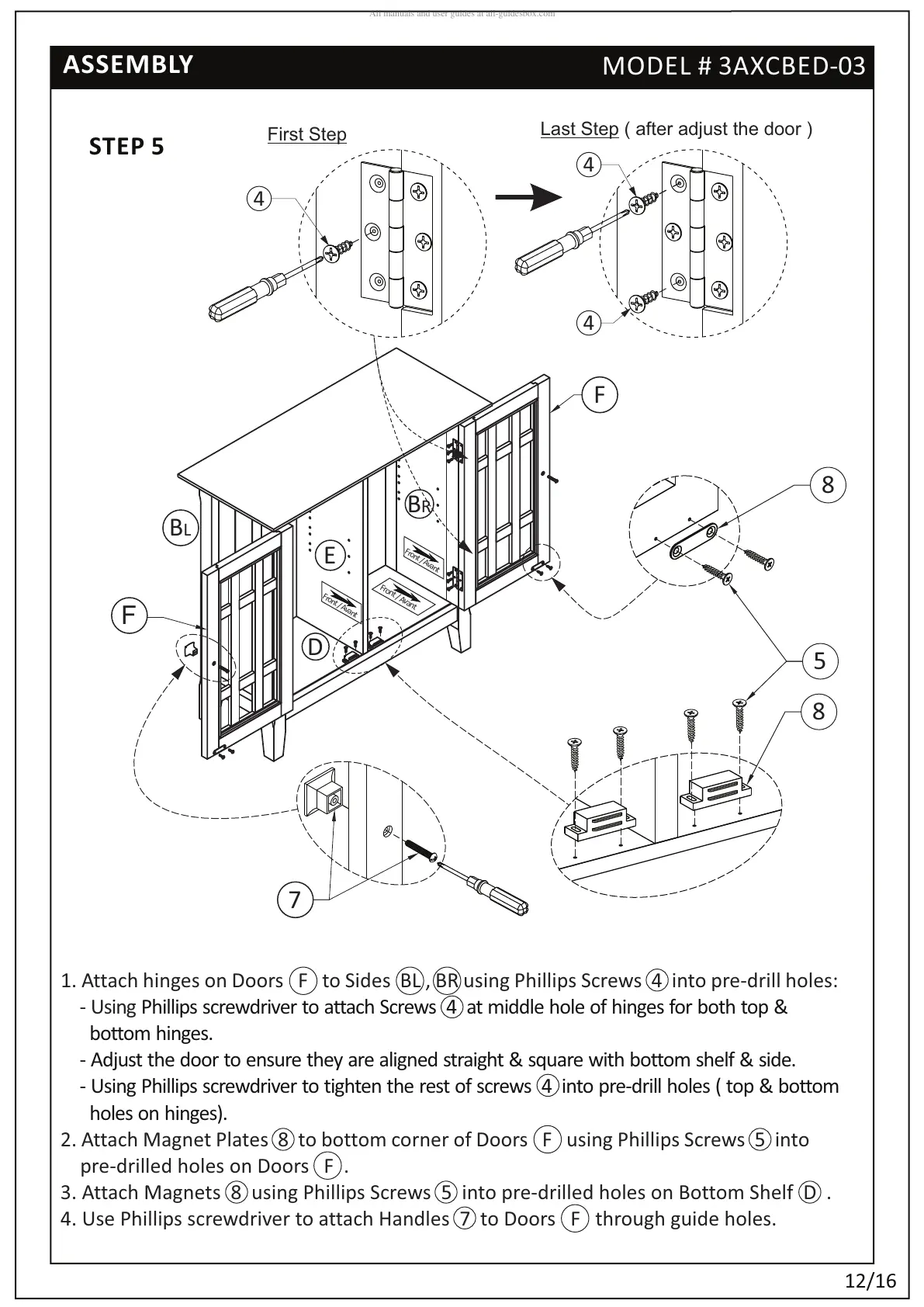

ASSEMBLY
STEP 5
MODEL # 3AXCBED-03
12/16
First Step
4
Last Step ( after adjust the door )
4
4
1. Attach hinges on Doors F to Sides BL , BR using Phillips Screws 4 into pre-drill holes:
- Using Phillips screwdriver to attach Screws 4 at middle hole of hinges for both top &
bottom hinges.
- Adjust the door to ensure they are aligned straight & square with bottom shelf & side.
- Using Phillips screwdriver to tighten the rest of screws 4 into pre-drill holes ( top & bottom
holes on hinges).
2. Attach Magnet Plates 8 to bottom corner of Doors F using Phillips Screws 5 into
pre-drilled holes on Doors F .
3. Attach Magnets 8 using Phillips Screws 5 into pre-drilled holes on Bottom Shelf D .
4. Use Phillips screwdriver to attach Handles 7 to Doors F through guide holes.
F
F
E
D
BR
BL
Fro
n
t
/
Av
a
nt
F
r
on
t /
A
v
an
t
F
r
o
nt
/
Avan
t
7
5
8
8
