Simpson Lawrence Pacific C1250 - Single Direction Wiring (Multiple Switches)

7
+
A
Circuit Breaker/Isolator
70A-0050711-12v
50A-0050710-24v
12v/24v
BATTERY
Single Direction Solenoid
0052505-12v
0052506-24v
B
Inline Fuse
12v-5 AMP, 24v-3.15 AMP
Deck Foot Switch
0052514
QU900/D
QU900/U
D
C
High Load Foot Switch
0052516
LEWP49C
LEWP49CW
+
C1250 CAPSTAN
Total Length Required = A + B + C + D
Only one type of switch is required, though more than one may be fitted.

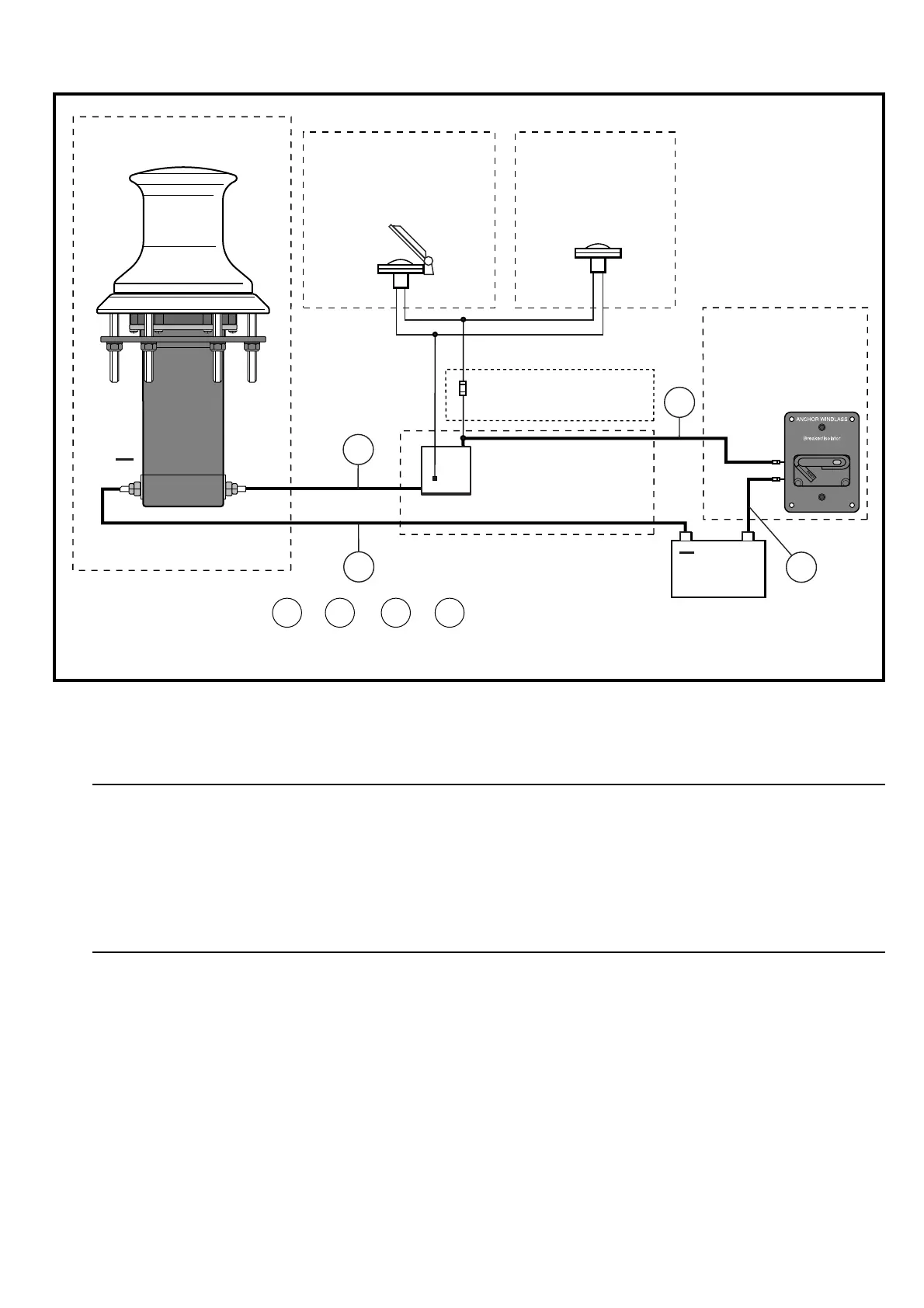

5.5.2 Single Direction Wiring
WIRE FROM TO
Thick cable Positive battery terminal Breaker/Isolator
Thick cable Breaker/Isolator Solenoid
Thick cable Solenoid Capstan positive terminal
Thick cable Negative battery terminal Capstan negative terminal
Thin wire Solenoid Control switch(es)
Thin wire Control switch(es) Main circuit (positive)
Thin wire Solenoid Main circuit (negative)
Warning!: If you are not sure that you understand the above guidelines seek professional advice. NB: Use a minimum wire gauge of
1.5mm² (14 AWG) to connect switches.
Note: Reversing polarity will result in permanent damage to the capstan (see 5.2.1). ALL installations must be carried out in accordance with
USCG, ABYC and NMMA requirements. If you have any questions regarding this installation contact nearest Simpson-Lawrence Agent.
