Simpson Lawrence Pacific C1250 - Wiring Diagrams; Single Direction Wiring (Foot Switch)

6
A
D
C
B
+
+
Circuit Breaker/Isolator
70A-0050711-12v
50A-0050710-24v
12v/24v
BATTERY
High Load Foot Switch
0052516
C1250 CAPSTAN
Total Length Required = A + B + C + D
WIRE FROM TO
Thick cable Positive battery terminal Breaker/Isolator
Thick cable Breaker/Isolator High Load Foot Switch
Thick cable High load foot switch Capstan positive terminal
Thick cable Negative battery terminal Capstan negative terminal
5.5.0 Wiring Diagrams

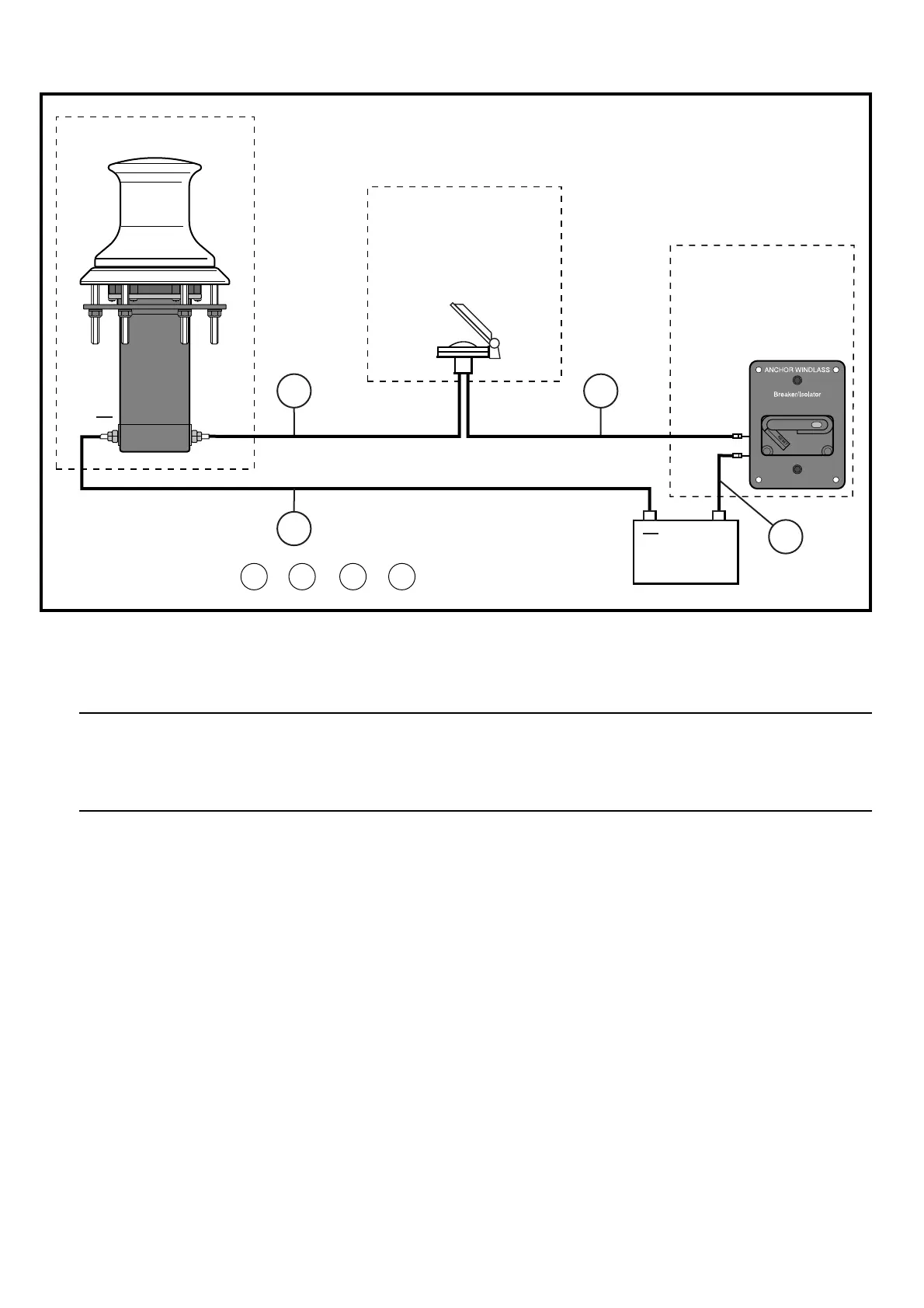

5.5.1 Single Direction Wiring (High Load Foot Switch Only)
Note: Reversing polarity will result in permanent damage to the capstan (see 5.2.1). ALL installations must be carried out in accordance with
USCG, ABYC and NMMA requirements. If you have any questions regarding this installation contact nearest Simpson-Lawrence Agent.
