Introduction
TECHNICAL DATA

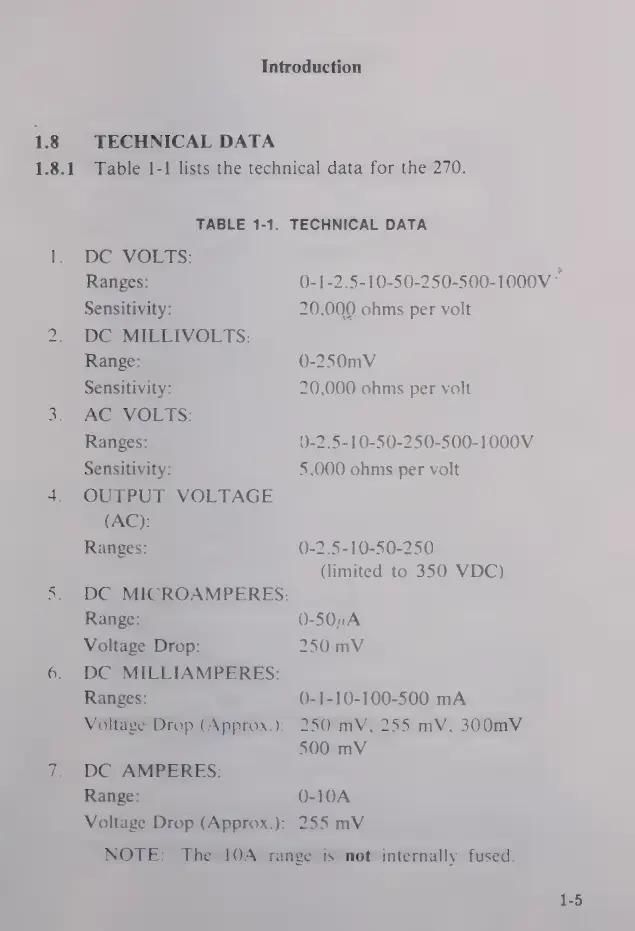

1.8.1 Table 1-1 lists the technical data for the 270.
N
TABLE 1-1. TECHNICAL DATA
DE VOLTS:
Ranges: 0-1-2.5-10-50-250-500-1000V ^
Sensitivity: 20.000 ohms per volt
DC MILLIVOLTS:
Range: 0-250mV
Sensitivity: 20.000 ohms per volt
AC VOETS:
Ranges: 0-2.5-10-50-250-500-1000V
Sensitivity: 5.000 ohms per volt
OUTPUT VOLTAGE
(AC):
Ranges: 0-2.5-10-50-250
(limited to 350 VDC)
DC MICROAMPERES:
Range: 0-504А
Voltage Drop: 250 mV
DC MILLIAMPERES:
Ranges: 0-1-10-100-500 mA
Voltage Drop (Арргох.): 250 mV, 255 mV, 300mV
500 mV
DC AMPERES:
Range: 0-10А
Voltage Drop (Арргох.): 255 mV
NOTE: The 10A range is not internally fused.
