Simpson 270 Series - Page 59

Replacement Parts

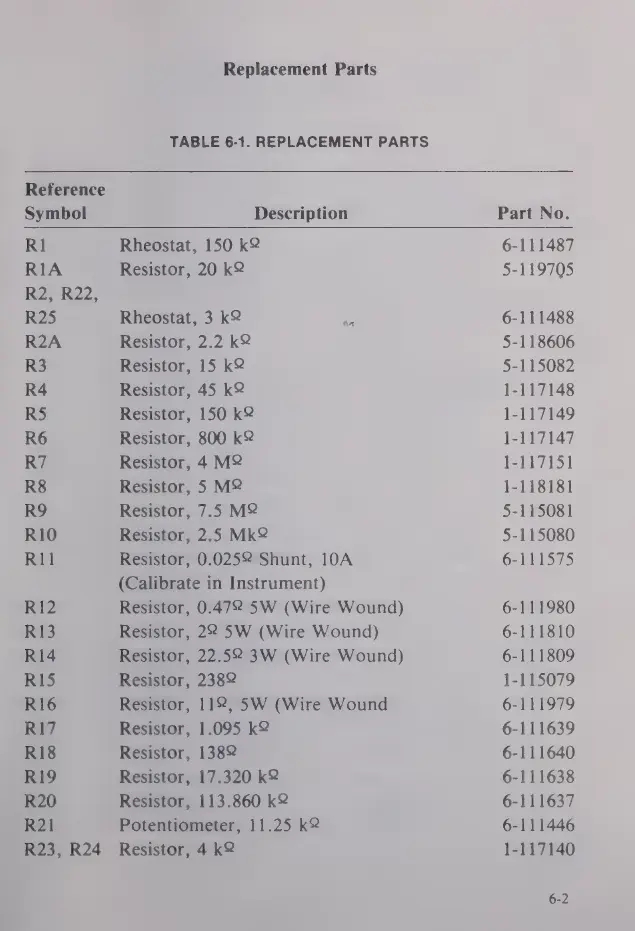

TABLE 6-1. REPLACEMENT PARTS
Reference
Symbol Description Part No.
RI Rheostat, 150 К? 6-111487
RIA Resistor, 20 К? 5-119705
R2; R22;
R25 Rheostat, 3 k9 v: 6-111488
R2A Resistor, 2.2 k9 5-118606
R3 Resistor, 15 k9 5-115082
R4 Resistor, 45 k9 1-117148
RS Resistor, 150 k9 1-117149
R6 Resistor, 800 k9 1-117147
R7 Resistor, 4 M9 1-117151
R8 Resistor, 5 M9 1-118181
R9 Resistor, 7.5 M9 5-115081
R10 Resistor, 2.5 МК? 5-115080
R11 Resistor, 0.0259 Shunt, 10A 6-111575
(Calibrate in Instrument)
R12 Resistor, 0.472 5W (Wire Wound) 6-111980
R13 Resistor, 29 5W (Wire Wound) 6-111810
R14 Resistor, 22.59 3W (Wire Wound) 6-111809
R15 Resistor, 2389 1-115079
R16 Resistor, 119, SW (Wire Wound 6-111979
R17 Resistor, 1.095 k9 6-111639
R18 Resistor, 1389 6-111640
R19 Resistor, 17.320 К9 6-111638
R20 Resistor, 113.860 К9 6-111637
R21 Potentiometer, 11.25 К9 6-111446
R23, R24 Resistor, 4 К9 1-117140
6-2
