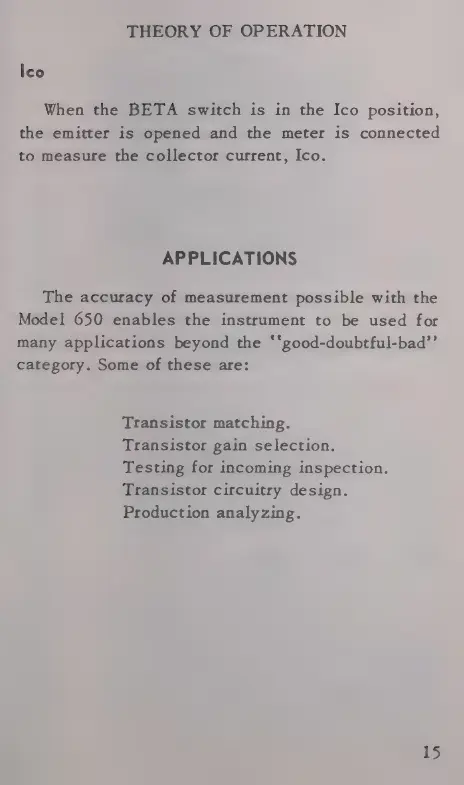

ТНЕОКУ OF OPERATION
|со
When the ВЕТА switch is in the Ico position,
the emitter is opened and the meter is connected
to measure the collector current, Ico.
APPLICATIONS
The accuracy of measurement possible with the
Model 650 enables the instrument to be used for
many applications beyond the ‘‘good-doubtful-bad’’
category. Some of these are:
Transistor matching.
Transistor gain selection.
Testing for incoming inspection.
Transistor circuitry design.
Production analyzing.
15
