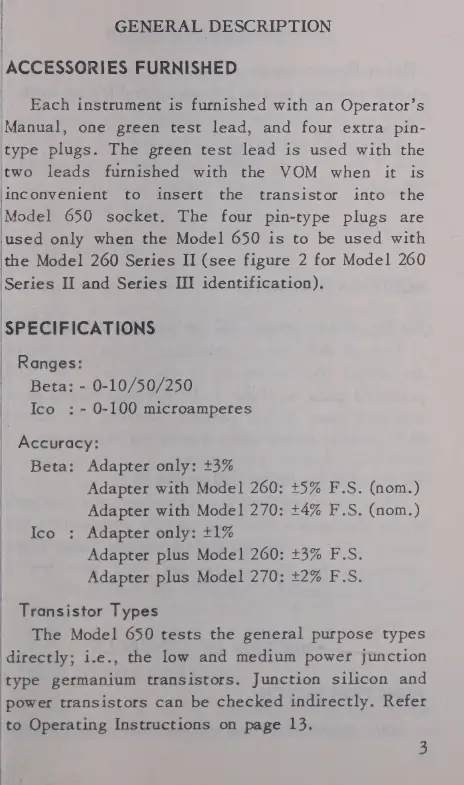

| GENERAL DESCRIPTION
ACCESSORIES FURNISHED
Each instrument is furnished with an Operator's
Manual, one green test lead, and four extra pin-
type plugs. The green test lead is used with the
two leads furnished with the VOM when it is
inconvenient to insert the transistor into the
Model 650 socket. The four pin-type plugs are
‘used only when the Model 650 is to be used with
the Model 260 Series II (see figure 2 for Model 260
Series II and Series HI identification).
SPECIFICATIONS
Ranges:
Beta: - 0-10/50/250
Ico :- 0-100 microamperes
Accuracy:
Beta: Adapter only: +3%
Adapter with Model 260: +5% F.S. (nom.)
Adapter with Model 270: +4% F.S. (nom.)
Ico : Adapter only: +1%
Adapter plus Model 260: +3% F.S.
Adapter plus Model 270: +2% F.S.
| Transistor Types
| The Model 650 tests the general purpose types
directly; i.e., the low and medium power junction
type germanium transistors. Junction silicon and
power transistors can be checked indirectly. Refer
to Operating Instructions on page 13.
| 3
|
*
