MAINTENANCE

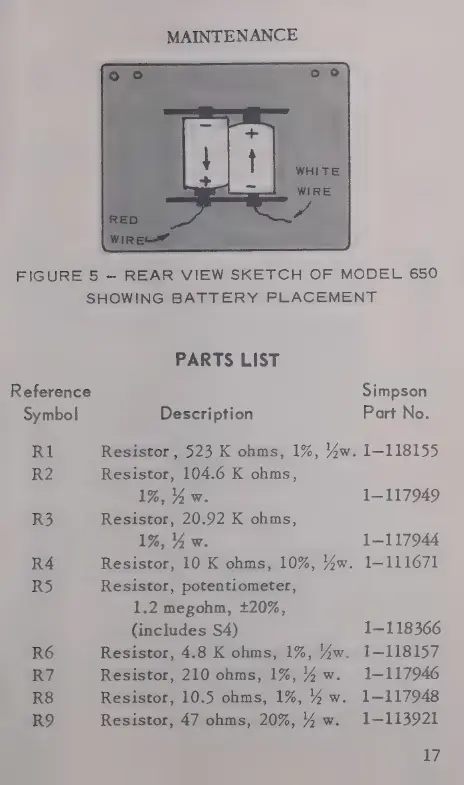

FIGURE 5 — REAR VIEW SKETCH OF MODEL 650
Reference
Symbol
Е1
R2
R3
КА
R5
Ró
R7
R8
R9
PARTS LIST
Description
Resistor, 523 K ohms, 1%, И“.
Resistor, 104.6 K ohms,
1%, Y ж.
Resistor, 20.92 К ohms,
1%, Y w.
Resistor, 10 К ohms, 10%, lw.
Resistor, potentiometer,
1.2 megohm, +20%,
(includes S4)
Resistor, 4.8 K ohms, 1%, Jw.
Resistor, 210 ohms, 1%, 4 w.
Resistor, 10.5 ohms, 1%, Y w.
Resistor, 47 ohms, 20%, Y w.
SHOWING BATTERY PLACEMENT
Simpson
Part No.
1—118155
1—117949
1—117944
1-111671
1—118366
1—118157
1—117946
1—117948
1—113921
