INSTALLATION (Continued)
Separate Grill Wall Ovens
Separate Grill
Underbench Ovens

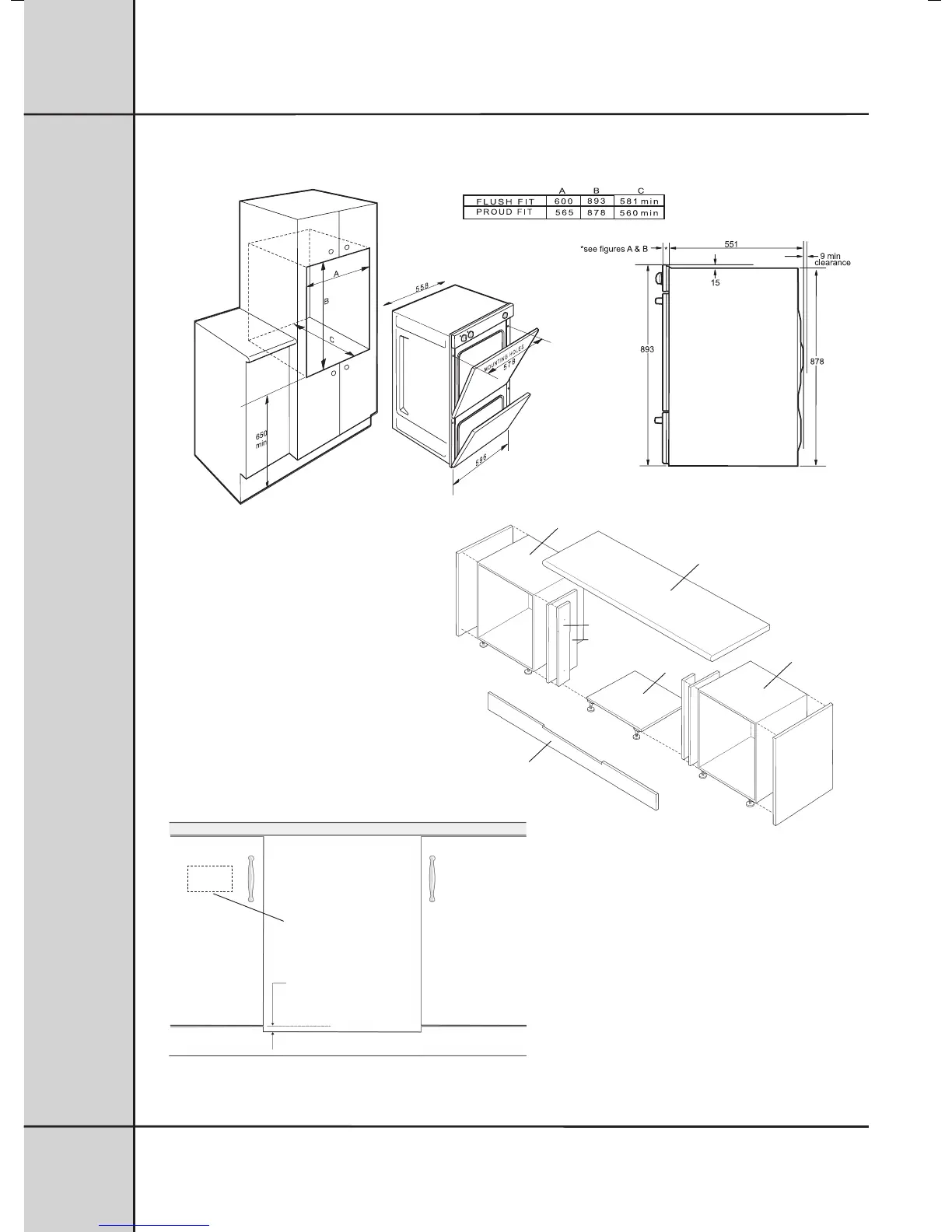

Recommended Cabinet Design
Note: It is imperative that the kick panel be notched for the
full width of aperture to provide cooling air for the appliance
Note: Power point connection must be
accessible with the appliance installed
Front View
Area for mounting of
power point.
Supporting shelf 10mm
below door line to give
perfect alignment of
cooker & cupboard (kick
panel notched to suit).
720mm Module(s)
Bench top
720mm Module(s)
Kick Panel
Infill panel (2)
Cleat (2)
Cooker
platform
30
4
