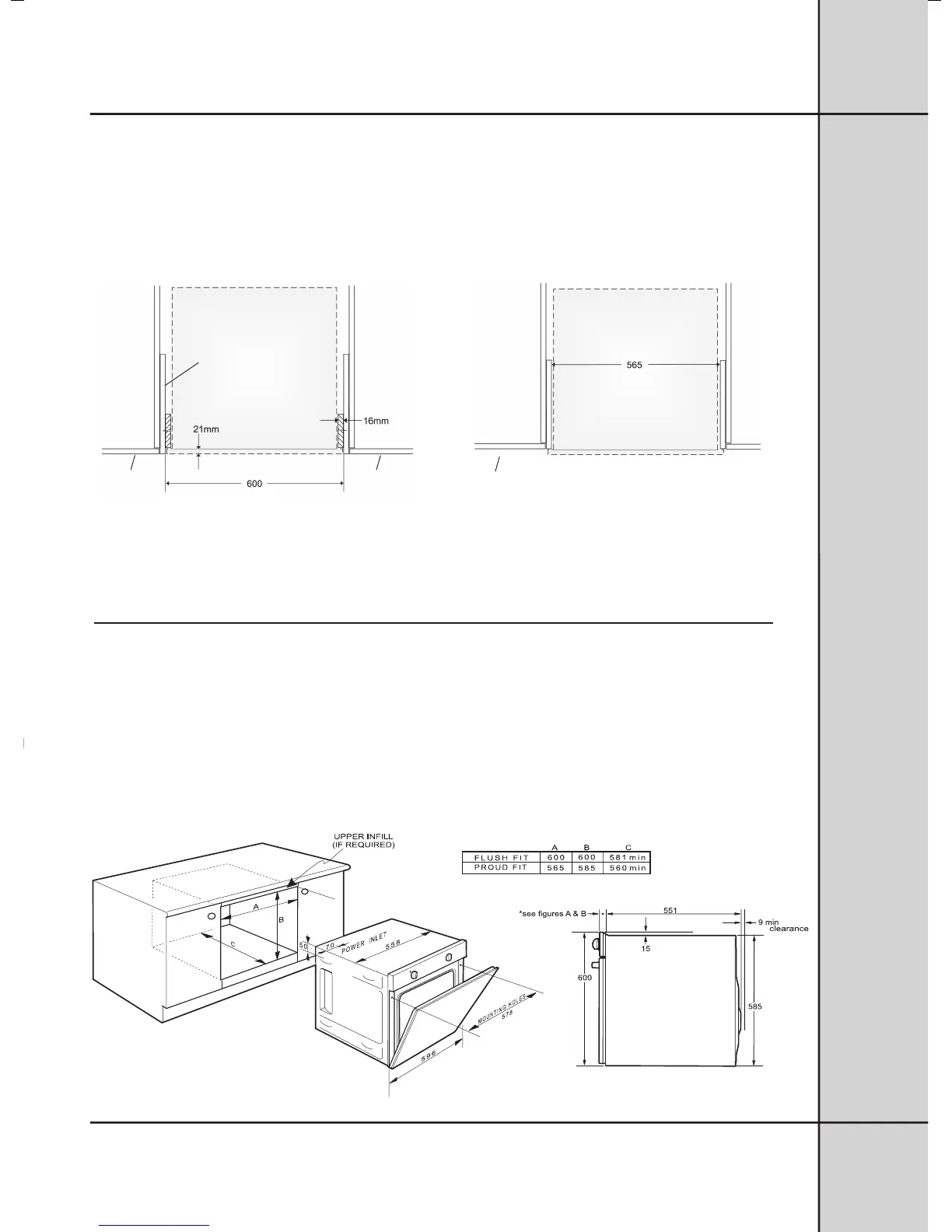

Figure B - Proud fit (top view)
Cabinet Construction for your appliance
For the best integration within a kitchen, install this appliance in a standard 600mm wide cupboard that
gives a flush fit with the surrounding cupboard fronts (figure A).
A recess of 21 mm is ideal. It can also be installed using a proud fit with the surrounding cupboard
(figure B).
Note: Your appliance must be mounted on a flat surface for the full width and depth of the product.
Cleat
Cupboard
door
Cupboard
door
Infill panel
Cupboard front
Figure A - Flush fit (top view)
Underbench Ovens
Your underbench oven looks best when the control panel is directly under the benchtop. An upper
infill panel may have to be added if the cooktop placed above the benchtop is too deep.
Refer to cooktop installation instructions for required clearance between cooktop and oven.
