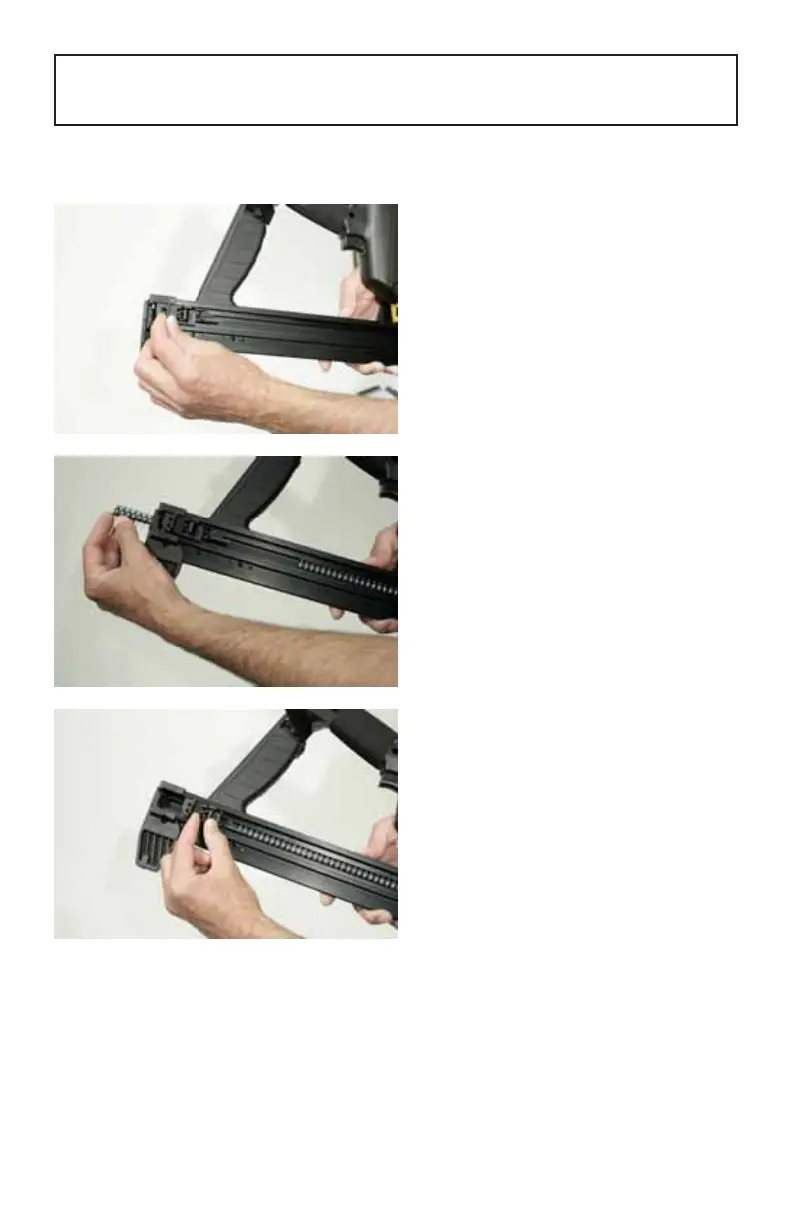

LOADING THE GCN-MEP MAGAZINE (GCN-MEPMAG) WITH GDP STRIP PINS:
1. Pull back the pin feeder boot until it locks
into place.
2. Slide up to (4) strips of GDP pins into the
back of the magazine.
3. Release the pin feeder boot and slide it
back until it is against the last pin.
The magazine is designed to retain two pins during use to prevent the tool from
discharging without a fastener (which can damage the tool and possibly cause injury).
The tool will resume normal operation when additional pins are loaded.
