GET TO KNOW THE pRESSURE WASHER
NOTE: Photographs and line drawings used in this manual are for reference
only and do not represent a specific model.
Compare the illustrations with your unit to familiarize yourself with the location of
various controls and adjustments. Save this manual for future reference.
I
J
G
C
B
1
D
H
A
K
E

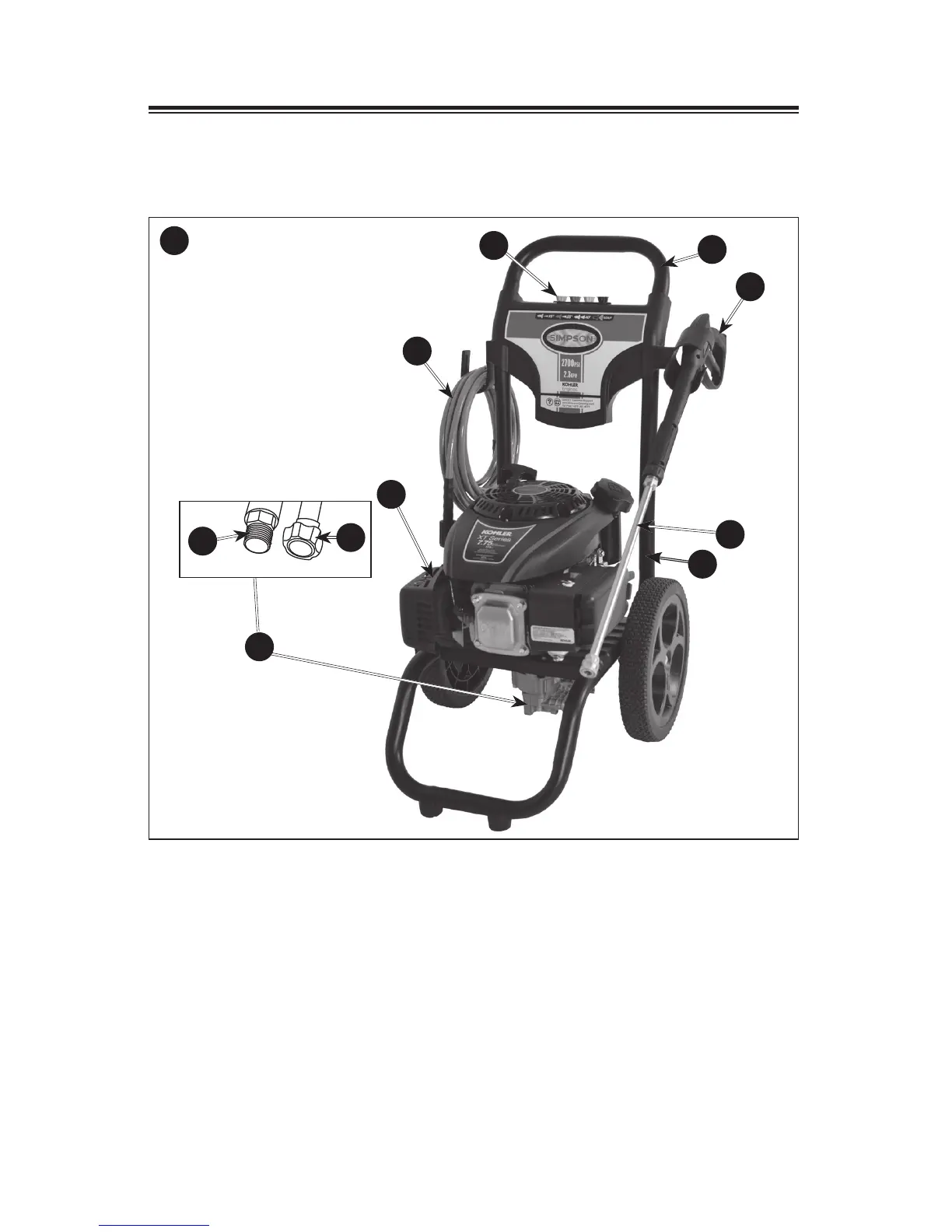

BASIC ELEMENTS OF A pRESSURE WASHER (FIG. 1)
A. High Pressure Pump: Increases the pressure of the water supply.
B. Engine: Drives the high pressure pump. Refer to the Engine Owner's Manual
for location and operation of engine controls.
C. High Pressure Hose: Carries the pressurized water from the pump to the gun
and spray wand.
D. Spray Gun: Connects with spray wand to control water flow rate, direction and
pressure.
E. Quick-Connect Spray Wand: Allows the user to quickly change out high
pressure nozzles. See How To Use Spray Wand instructions in Operation
section.
To Next Page
