Simpson SCGH5500 - Support Bracket Assembly

Page 7 REV F - 07/22/2021Part Number 7115316 / ENGLISH

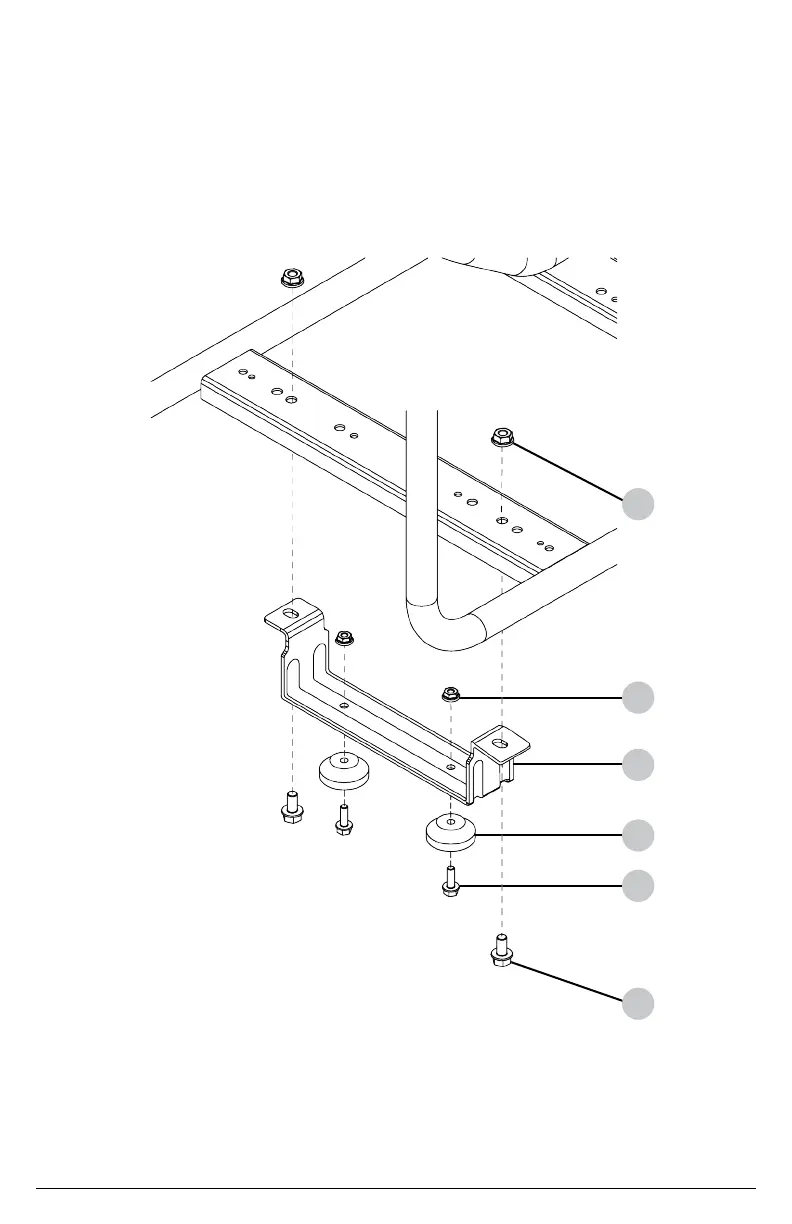

Assembling and Installing the Support Bracket
Assembling bracket: If rubber feet are not already installed on the onto the support bracket,
slide both M6x18 bolts through the rubber feet then through the support bracket, and tighten
M6 nuts onto the bolts to secure the assemblies.
Installing assembled bracket: Slide both M8x16 bolts through the support bracket and
frame, then tighten the M8 nuts onto the bolts to secure the assembly.
2
1
3
4
6
5
1. M6x18 bolts
2. Rubber feet
3. Support bracket
4. M6 nuts
5. M8x16 bolts
6. M8 nuts
