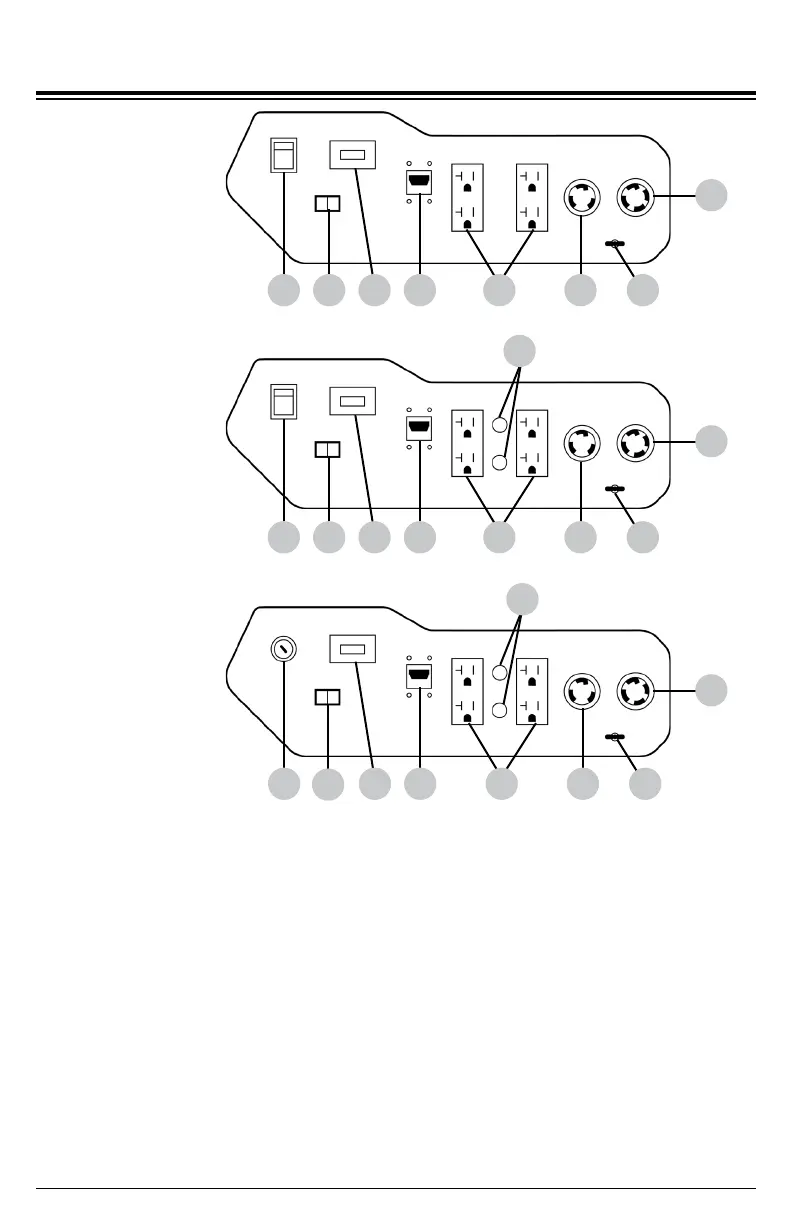

Simpson SCGH5500 - CONTROL PANELS; SCGH5500 Control Panel Overview; SCGH8500 Control Panel Overview; SCGH8500 E Control Panel Overview

Page 11 REV F - 07/22/2021Part Number 7115316 / ENGLISH
1. Engine control switch
2. Idle control switch
3. Hour meter
4. Main breakers SCGH5500 17.5 amp, SCGH8500 & SCGH8500E 30 amp
5. Circuit breakers 20 amp
6. 120v AC, single phase, 60hz duplex receptacle (5-20R)
7. 120v AC, single phase, 60hz receptacle (L5-30R)
8. Ground terminal
9. 120v / 240v AC, single phase, 60hz receptacle (L14-30R)
SCGH5500
SCGH8500
CONTROL PANELS
SCGH8500E
8
8
8
9
9
9
7
7
7
4
4
4
1
1
1
2
2
2
6
6
6
3
3
3
5
5
