13 - ENG

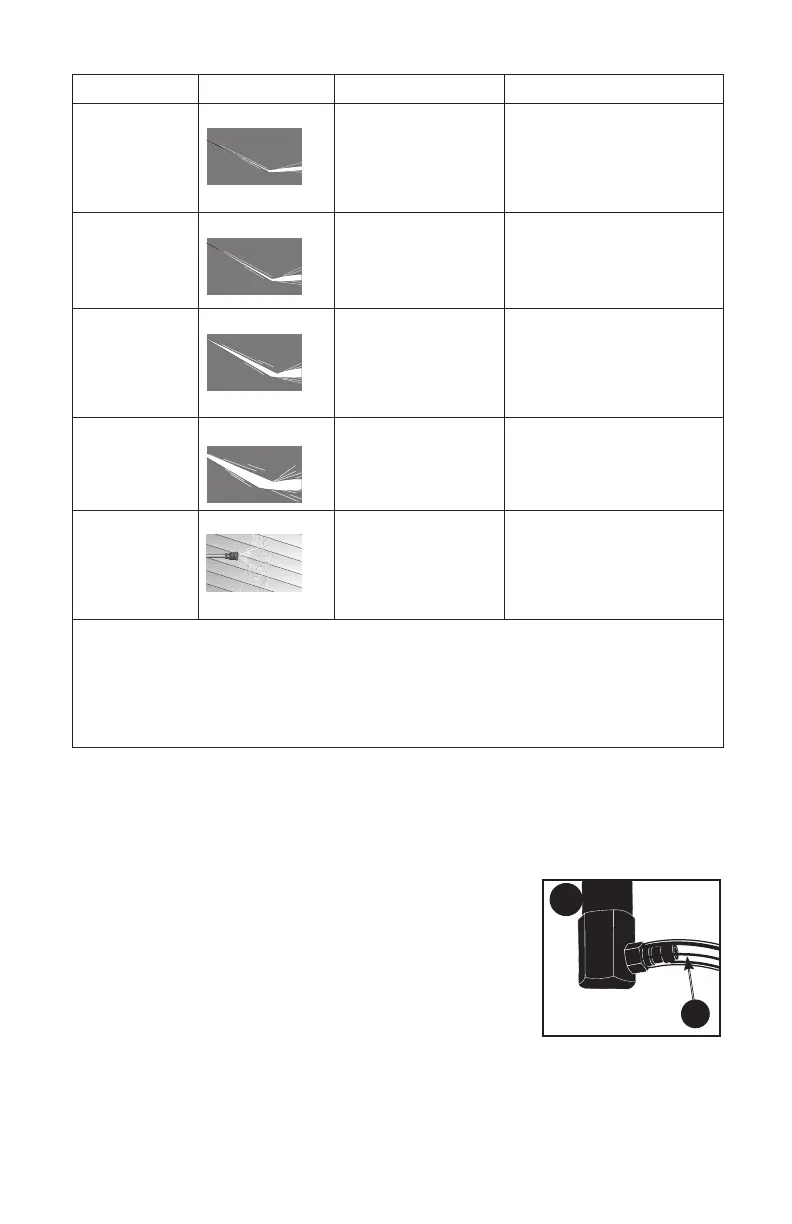

NOzzLE COLOR SpRAY pATTERN USES SURFACES*
Red
0˚
powerful pinpoint
for spot cleaning
of hard, unpainted
surfaces or for
high reach areas
unpainted metal
or concrete;
DO NOT use on wood
Yellow
15˚
intense cleaning
of unpainted
hard surfaces
grills, driveways, concrete
or brick walkways,
unpainted brick or stucco
Green
25˚
standard cleaning
nozzle for most
applications
yard tools, sidewalks,
lawn furniture, unpainted
siding, stucco, gutters
and eaves, concrete,
brick surfaces
White
40˚
cleaning of
painted or delicate
surfaces
auto/RV, marine, wood,
painted brick and stucco,
vinyl, painted siding
Black
low pressure
applies cleaning
solutions
low pressure spray is
safe on all surfaces.
always verify
compatibility of cleaning
solution prior to use
*NOTICE: The high pressure spray from your pressure washer is capable of caus-
ing damage to surfaces such as wood, glass, automobile paint, auto striping and
trim, and delicate objects such as flowers and shrubs. Before spraying, check the
item to be cleaned to assure yourself that it is strong enough to resist damage
from the force of the spray.
HOW TO AppLY CHEMICALS/CLEANING SOLvENTS (FIG. 7)
Applying chemicals or cleaning solvents is a low pressure operation.
NOTE: Use only soaps and chemicals designed for pressure washer use. Do not
use bleach.
To Apply chemicals:
1. Ensure detergent siphon hose (F, Figure 7) is attached
F
7
to barbed fitting location near high pressure hose
connection of pump as shown.
2. Place other end of detergent siphon hose with
filter on it into container holding chemical/cleaning
solution. NOTE: For every 7 gallons of water pumped
1 gallon of chemical/cleaning solution will be used.
3. Install low pressure (black) nozzle into quick connect
fitting of spray wand, see How To Use Spray Wand paragraph in this section.
4. After use of chemicals, place detergent siphon hose into container of clean
water and draw clean water through chemical injection system to rinse system
thoroughly. If chemicals remain in the pump it could be damaged. Pumps
damaged due to chemical residue will not be covered under warranty.
