Dimensional drawings | Halo20, 20+ and 24 Dome Radars Installation Manual

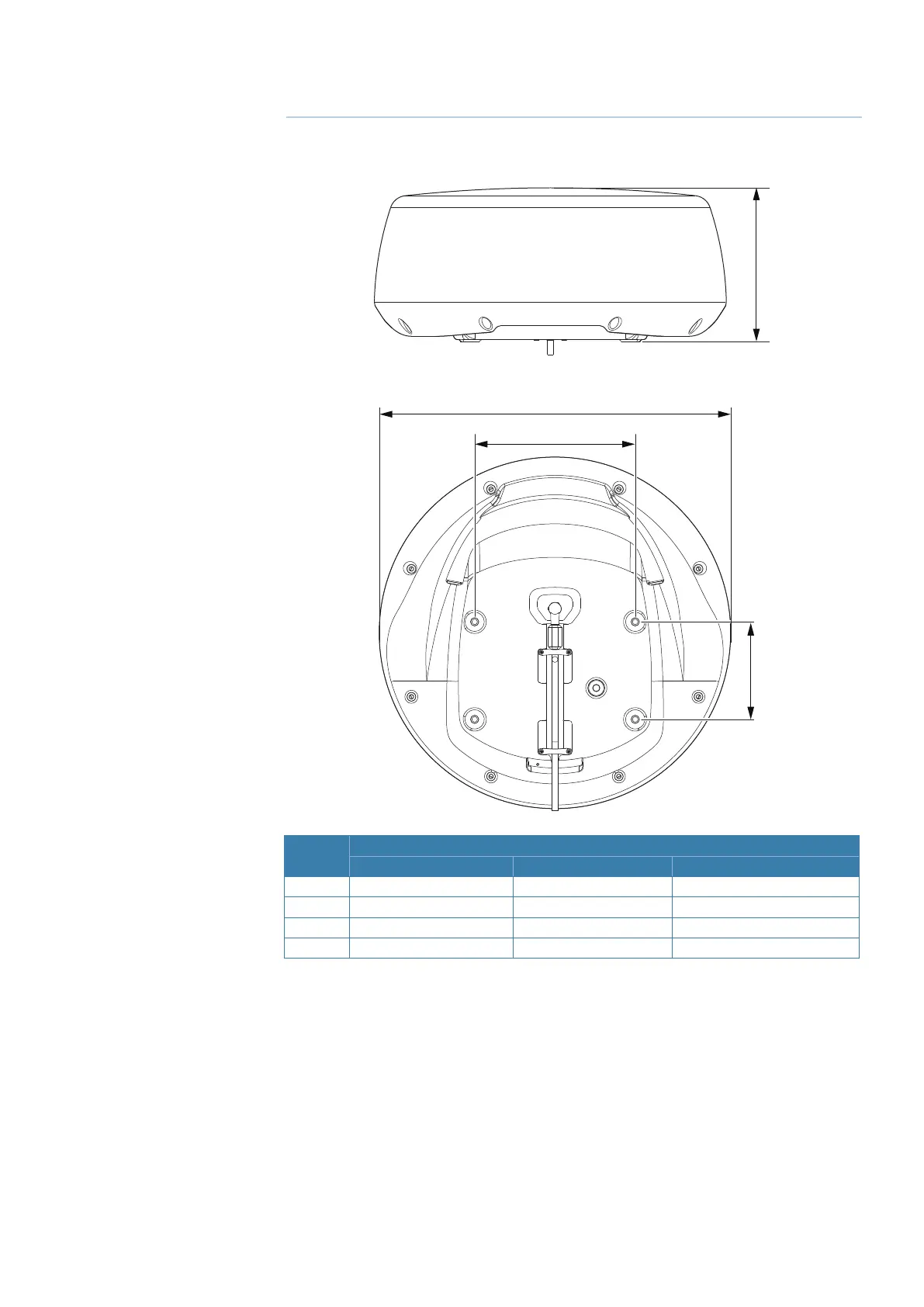

Dimensional drawings
Halo dome radar dimensions
A
C
D
B
Key
Dimensions
Halo20/20+ Radar Halo24 Radar Broadband 3G/4G Radar
A 223.0 mm (8.78”) 225 mm (8.9”) 280 mm (11.02”)
B 510.0 mm (20.08”) 610 mm (24”) 488.6 mm (19.24”)
C 233.0 mm (9.17”) 233.0 mm (9.17”) 233.0 mm (9.17”)
D 141.5 mm (5.57”) 141.5 mm (5.57”) 141.5 mm (5.57”)
¼ Note: The bolt holes are located in the same position for each radar.
