18 |
Installation | V3100 User Manual
AIS silent mode connection
When Silent Mode is required, it is possible to connect a toggle
switch to V3100. Connect the toggle switch between the purple
and brown wires to enable Silent Mode function, as depicted in
figure below.

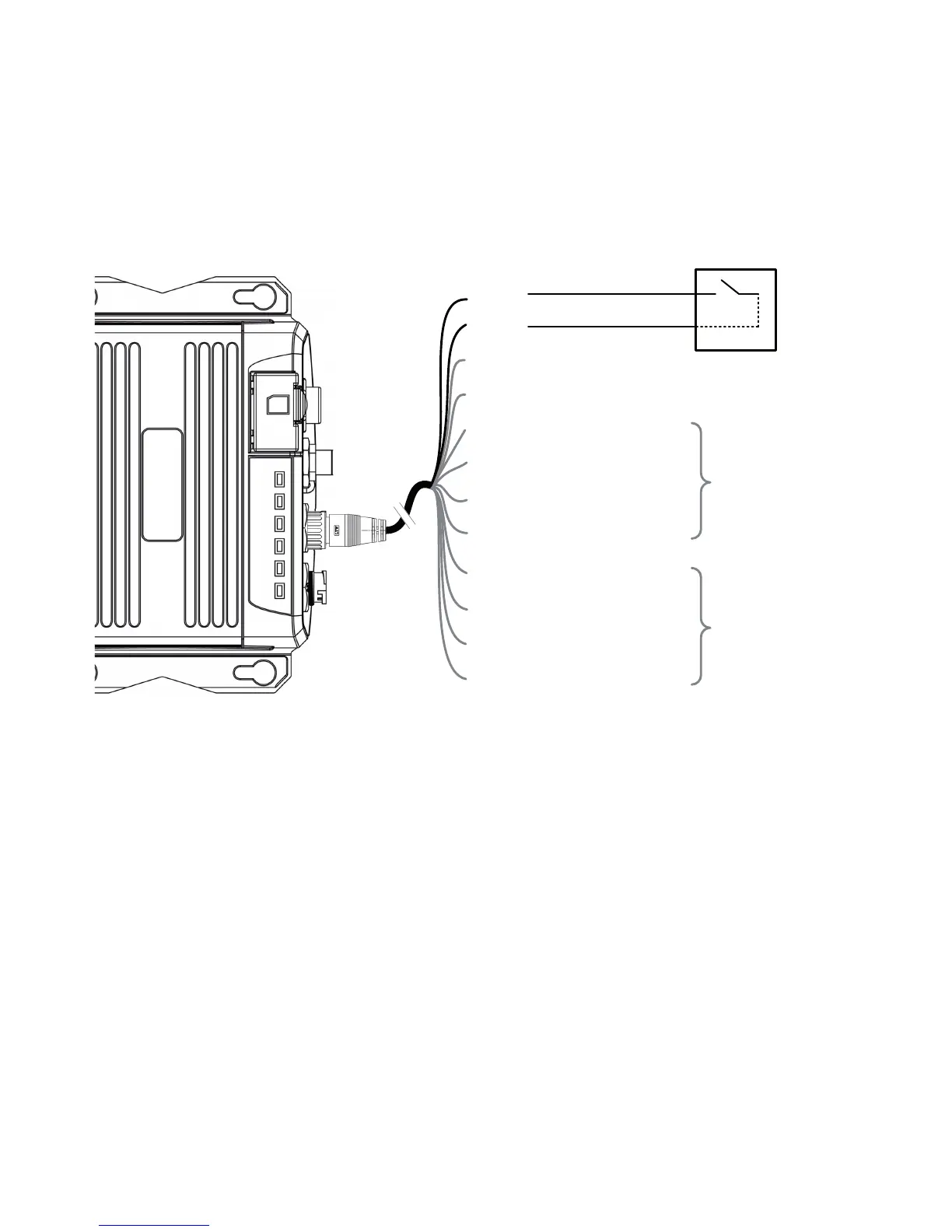

Silent switch connection
Transmit +
Transmit ─
Receive +
Receive ─
Silent
Silent Return
White
Blue
Orange
Green
Brown
Purple
NMEA0183 #1
Baud rate 38400
Transmit +
Transmit ─
Receive +
Receive ─
Gray
Yellow
Black
NMEA0183 #2
Baud rate 4800
Pink
Red
Light Green
Reserved
Reserved
Toggle switch
