SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 1 TROUBLESHOOTING
SimTech Proflame I
Diagram 18

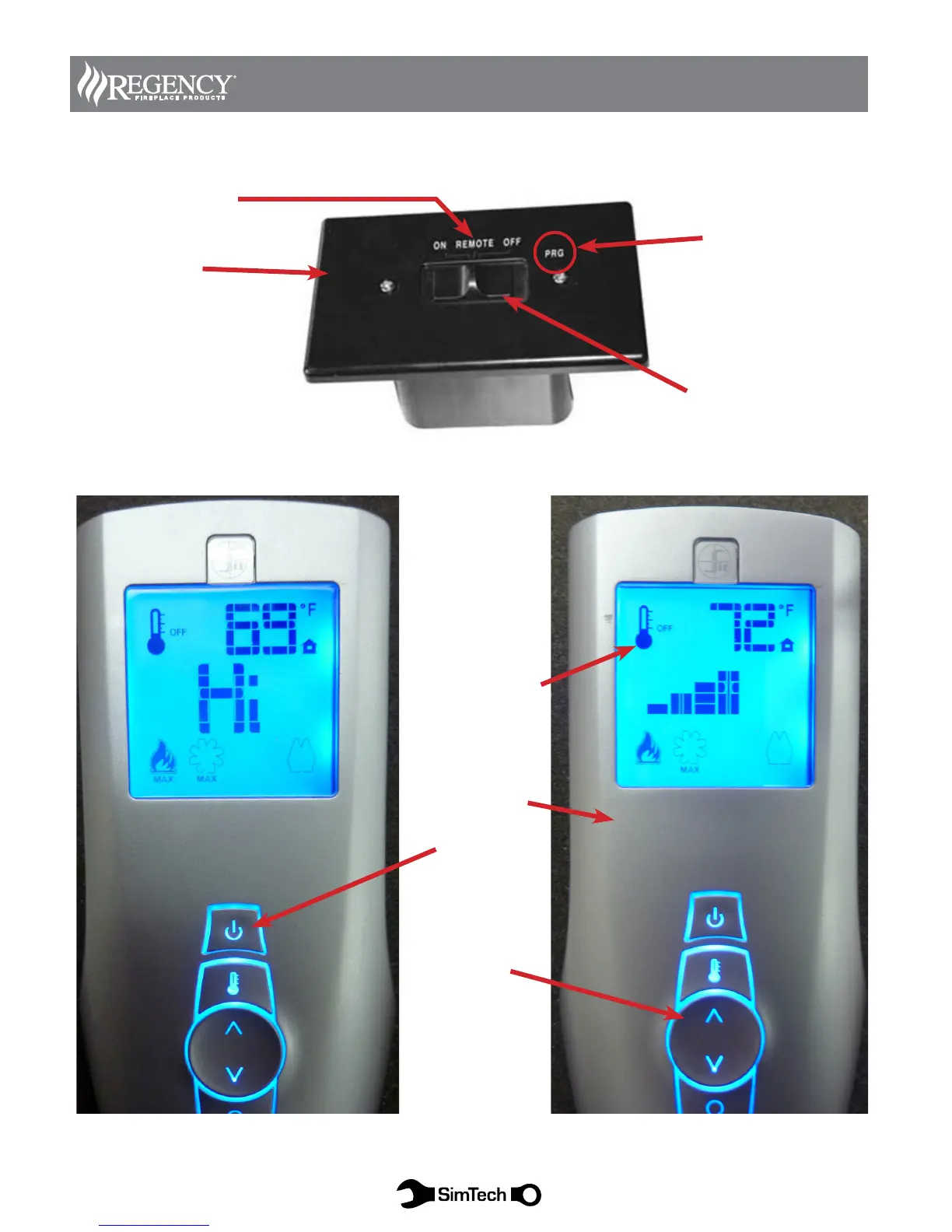

Check to ensure the remote handheld is turned on. The photo on the left shows Manual Mode on high. The photo on
the right shows Manual Mode on flame level 4.
Diagram 17
Check to ensure the receiver switch is set to the remote position (In center).
Set to Remote Position
(In Center)
Receiver Front Cover
Receiver Switch
Hole marked “PRG”
Coding Button
Thermostat Display Off
Indicates
Manual Mode
Remote
Handheld
On/Off Button
Up/Down Arrow
Key for Burner or
Fan
