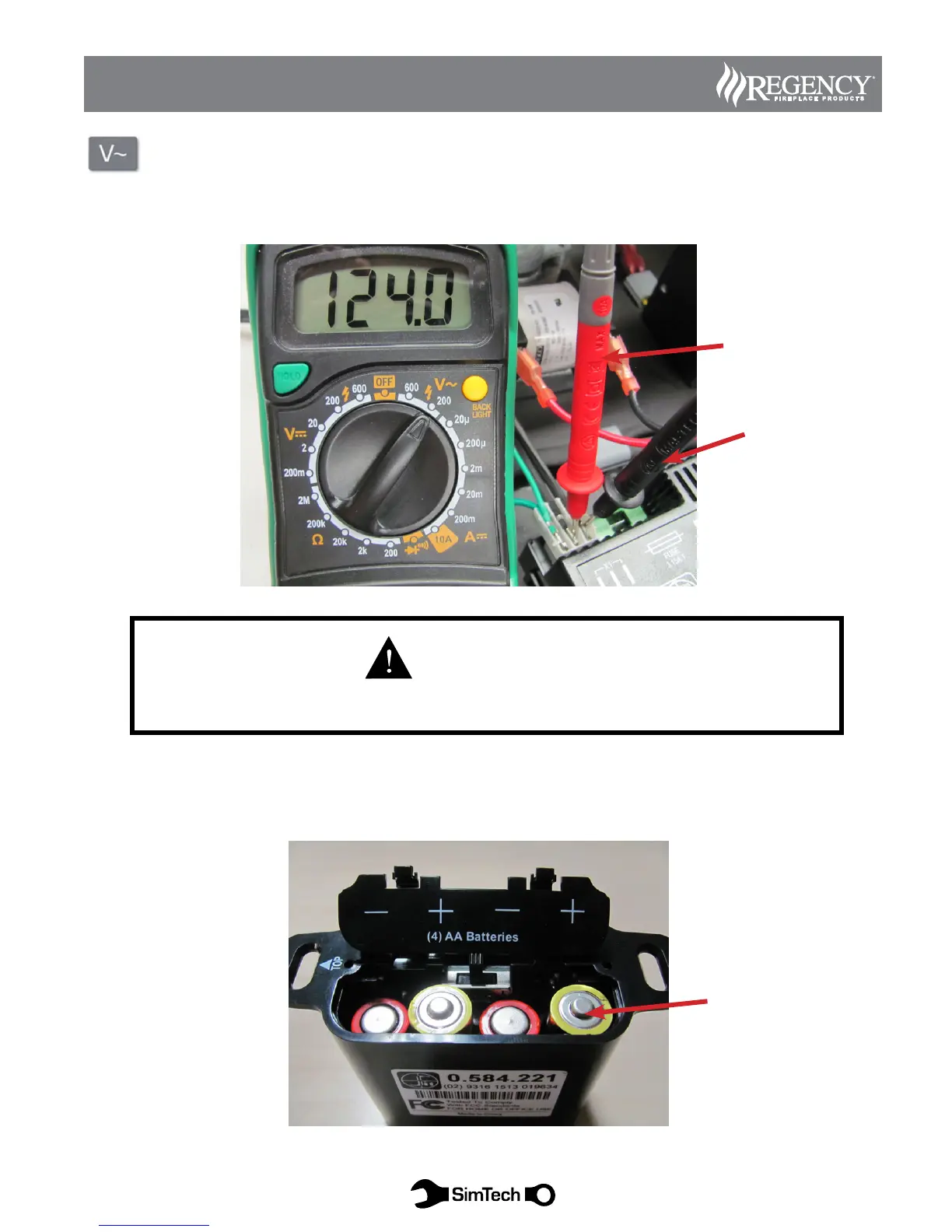

Diagram 1 VOLTS AC TEST (VAC)
Remove power cord from receptacle prior to testing for voltage. Remove plastic cap from the top of the con-
nector—plug power cord back into receptacle. Set meter to 200 VAC to conduct test. The reading should be
approximately 120 VAC. If the correct voltage is present—see next Step.
WARNING
RISK OF ELECTRICAL SHOCK. USE CAUTION WHEN CONDUCTING TESTS
Diagram 2
If batteries are being used to operate the system, ensure the batteries are correctly installed in the holder. Notice the polarity of
individual battery cells.
4 x AA Batteries
Red Probe to N-Neutral
Black Probe to L-Live
35
SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 2 TROUBLESHOOTING
SimTech Proflame II
