SimTech ProFlame 1 - Performing Voltage Readings on Lights and Fan Kits

Testing the Fan
Testing the Lights

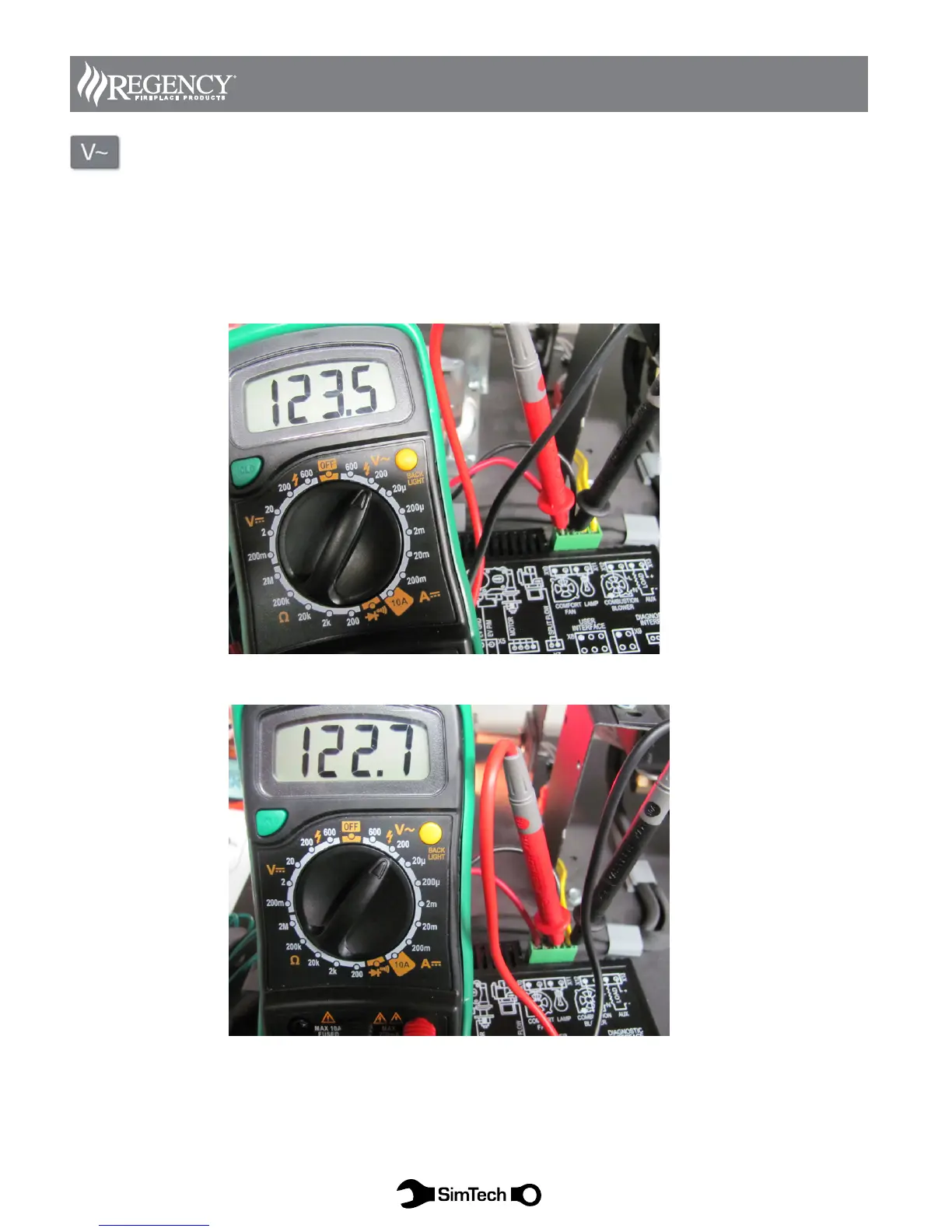

Diagram 17 Performing Voltage Readings on Lights and Fan Kits
When testing the comfort fan at X10, place one multi meter probe on the red wire and the other on the black lead, your
reading should be approximately 120 VAC on HI.
When testing the lights at X11, set meter to VAC and test between the 2 yellow wires at X11. Should be approximately
120 VAC on high.
NOTE: Use care when conducting tests—shock can occur.
Diagram 17a
50
SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 2 TROUBLESHOOTING
SimTech Proflame II
