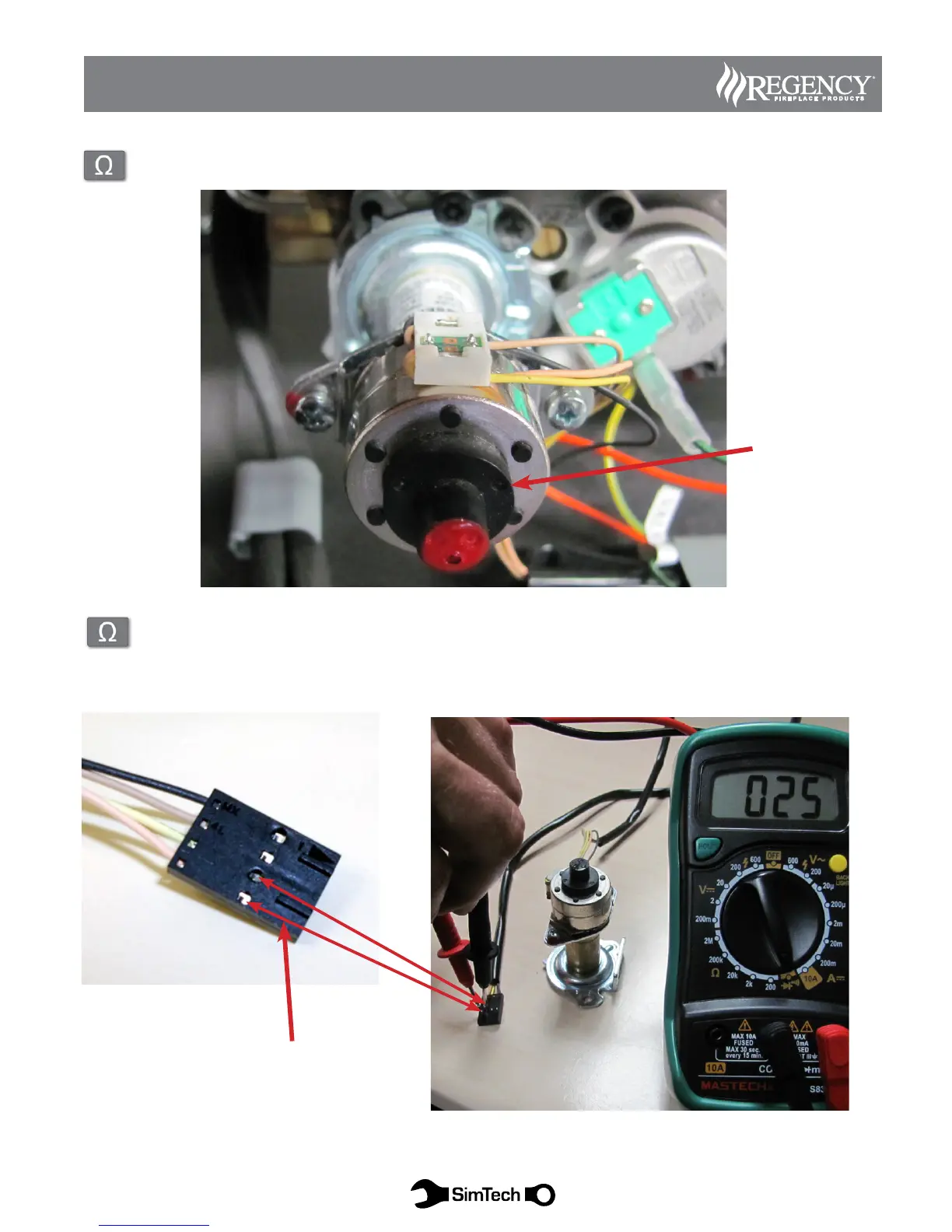

Diagram 16
Check the flame modulator.
Flame Modulator
Black Plug for Modulator
Diagram 16a Continuity Test (Ohms)
Check the modulator for continuity. First test the orange and yellow wires at the contact points, second, check the black
and brown wires.
The reading should be approximately 26 ohms for each test.
49
SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 2 TROUBLESHOOTING
SimTech Proflame II
