S.I.T. PROFLAME 1 TROUBLESHOOTING
SimTech Proflame I

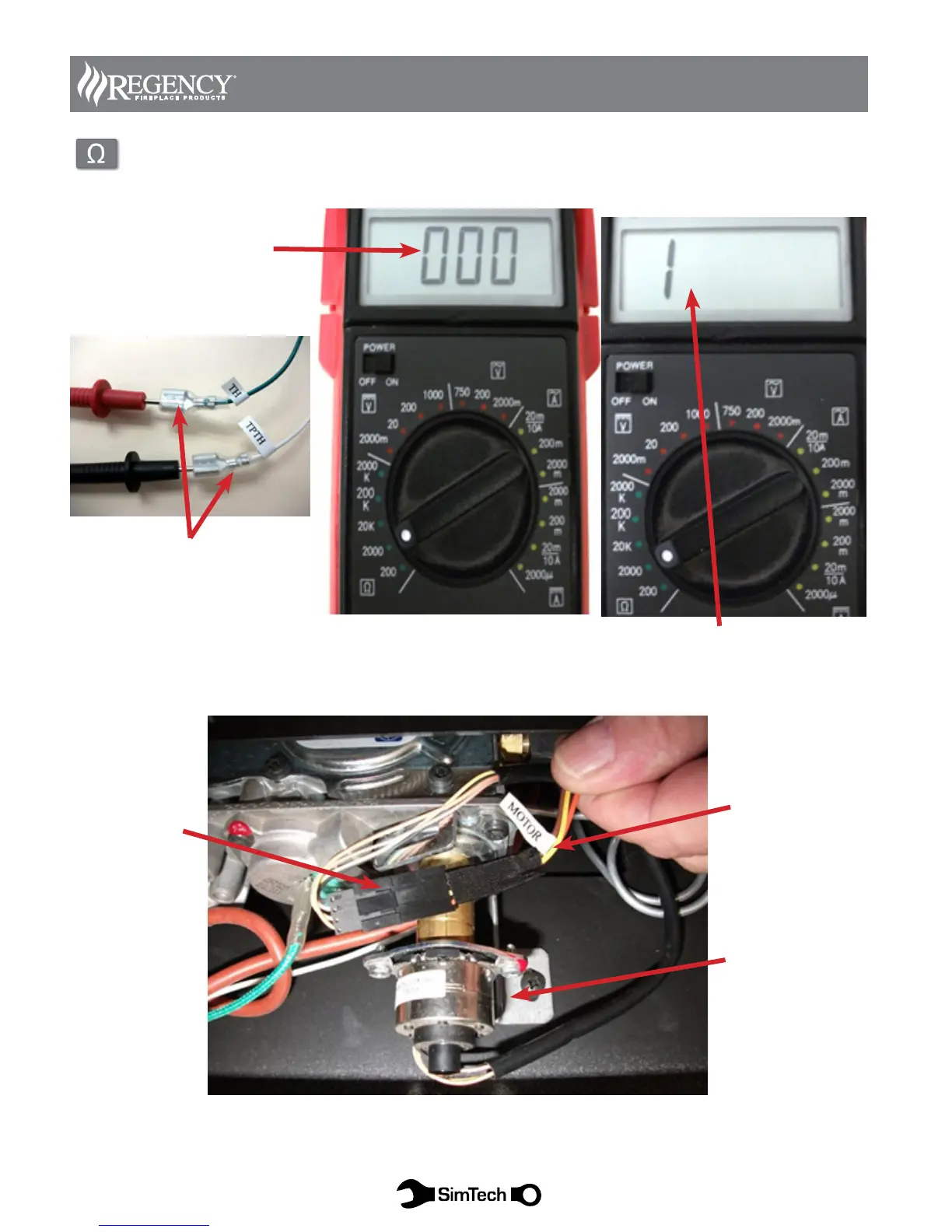

Diagram 26 Continuity Test (Ohms)
Place leads on the green and whites wires. When burner is signaled to come on you should see continuity. If
not, follow the previous troubleshooting flowchart to check the DFC and the valve.
Diagram 27
Check the flame modulator and connection
Wires Marked “Motor”
Flame Modulator
Connect Harness
Meter shows no continuity or “Open Circuit”
Meter shows Continuity
One lead to Green Wire and One lead
to White Wire
To Next Page
