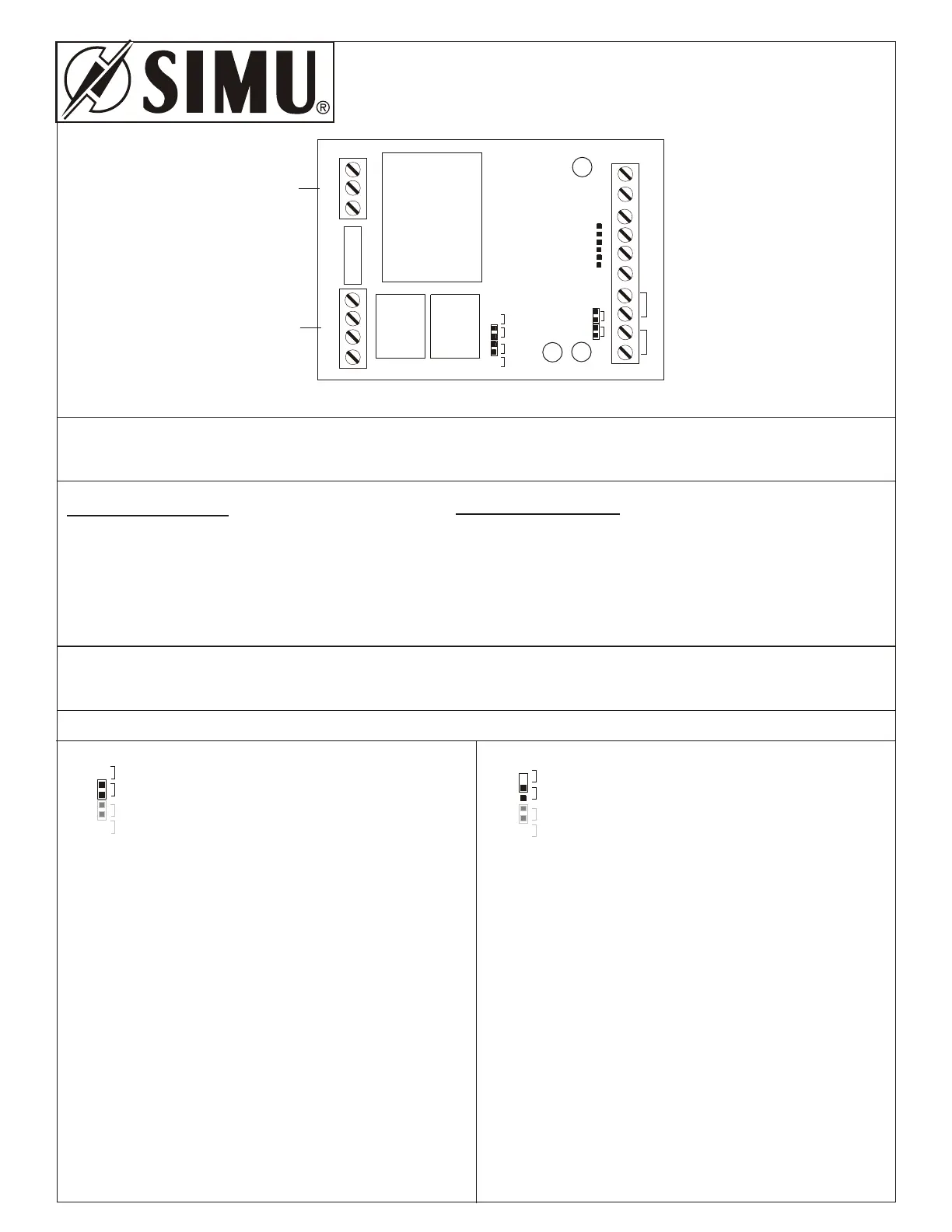

Simu SMC - High Voltage Connections

FUSE
FUSE ONLY WITH
8 AMP 125 VOLTS
G
N
L
U
D
G
N
SE2
SE1
STOP
DN
UP
SEQ
12
GND
POWERPOWER
SAFETY
STOP
JP1
+
JP3
JP4
J1
NC
NO
MOM
CONT
POWER INPUTS: G - GROUND
N - 120 VAC NEUTRAL
L - 120VAC HOT
POWER INPUTS:
MOTOR INPUTS: G - MOTOR GROUND (GREEN)
N - MOTOR NEUTRAL (WHITE)
U - MOTOR UP (BLACK*)
D - MOTOR DOWN (RED*)
*IF MOTOR RUNS IN WRONG DIRECTION, REVERSE
THE RED AND BLACK MOTOR WIRES
MOTOR INPUTS:
HIGH VOLTAGE CONNECTIONS
MOTOR INPUTSMOTOR INPUTS
POWER INPUTSPOWER INPUTS
JUMPERS
JP1
NCNC
NONO
MOM
CONT
JP1
NCNC
NONO
MOM
CONT
RUN TIME JUMPER JP1 (TOP)
JUMPER ON (MOM)
WITH THE JUMPER ON, THE RUN TIMER IS OFF AND THE
SMC WILL DRIVE THE MOTOR ONLY AS LONG AS THE UP
OR DOWN BUTTON IS PRESSED
NOTES:
1) THE REVERSING DETECTOR CONTROLS ARE
DEACTIVATED IN THIS MODE.
2) THE SEQUENCING CONTROL IS DEACTIVATED IN THIS
MODE.
3) THIS MODE CAN BE USED TO CLOSE THE DOOR IF
THERE IS A MALFUNCTION IN THE REVERSING
DETECTORS. THIS MUST ONLY BE DONE IF THE
UP/DOWN SWITCH IS IN DIRECT VIEW OF THE DOOR.
THE REVERSING DETECTORS MUST BE SERVICED AS
SOON AS POSSIBLE AND THE DOOR RETURNED TO ITS
NORMAL OPERATING MODE.
JUMPER OFF (CONT)
WITH THE JUMPER OFF, THE RUN TIMER IS ACTIVE AND
THE SMC WILL DRIVE THE MOTOR FOR 1 MINUTE (OR
TO THE MOTOR LIMIT) WHEN THE UP OR DOWN BUTTON
IS PRESSED. PRESSING THE OTHER DIRECTION WHEN THE
MOTOR IS RUNNING WILL CAUSE THE MOTOR TO STOP
FOR 1/4 SECOND BEFORE REVERSING DIRECTIONS.
.
NOTES:
1) THE SMC MUST BE IN THIS MODE FOR THE
SEQUENCING AND REVERSING DETECTORS TO BE
ACTIVE.
INSTALLERS MANUAL
PAGE: 1 OF 5
SIMU U.S.INC
6100 BROKEN SOUND PKWY. N.W., #14
BOCA RATON, FL 33487
PHONE: 800-822-7468 A FAX: 561-995-7502
