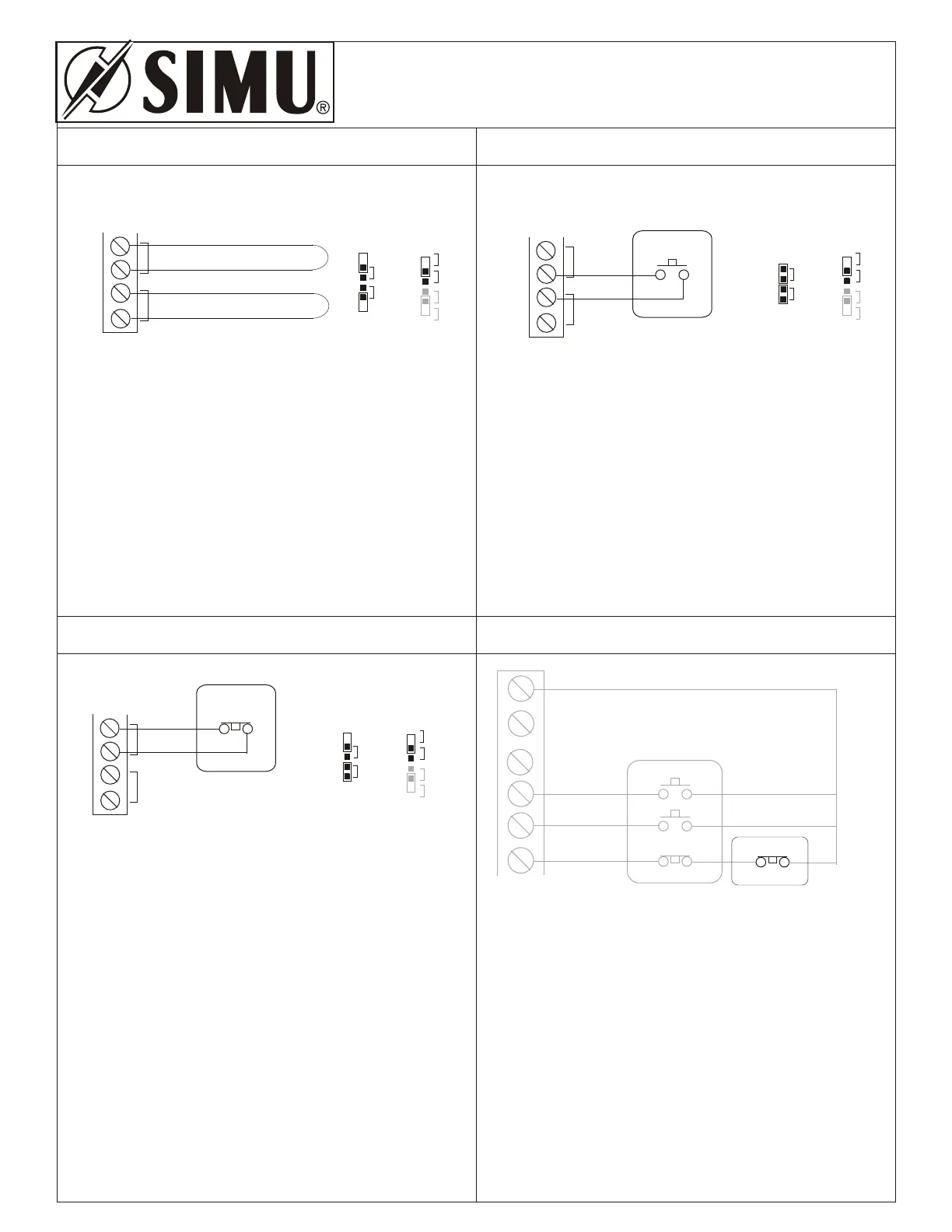

Simu SMC - Reversing Sensor

JP3
JP4
JP3
JP4
SE2SE2
SE1SE1
JP1JP1
NCNC
NONO
MOMMOM
CONTCONT
4 WIRE SENSING EDGE
LOOP 1
LOOP 2
NOTES:
1) JUMPERS JP3 AND JP4 MUST BE OFF WHEN USING
A 4 WIRE SENSING EDGE.
2) JP1 TOP JUMPER MUST BE OFF (CONT). THIS SETS
THE SMC RUN TIMER ON.
3) JP1 LOWER JUMPER SETTING DEPENDS ON STOP
BUTTON.
4) CHECK SENSING EDGE FUNCTION. IF THE MOTOR
REVERSES UPON SENSING EDGE ACTIVATION WHEN
THE DOOR IS GOING UP INSTEAD OF DOWN,
REVERSE THE RED AND BLACK MOTOR LEADS.
NCNC
NONO
MOMMOM
CONTCONT
N.O.
SE2SE2
SE1SE1
NOTES:
1) JUMPERS JP3 AND JP4 MUST BE ON WHEN USING
A NORMALLY OPEN SENSING (2 WIRE) EDGE.
2) JP1 TOP JUMPER MUST BE OFF (CONT). THIS SETS
THE SMC RUN TIMER ON.
3) JP1 LOWER JUMPER SETTING DEPENDS ON THE STOP
BUTTON.
4) CHECK SENSING EDGE FUNCTION. IF THE MOTOR
REVERSES UPON SENSING EDGE ACTIVATION WHEN
THE DOOR IS GOING UP INSTEAD OF DOWN,
REVERSE THE RED AND BLACK MOTOR LEADS.
JP1JP1
N.O. SENSING EDGE (2 WIRE)
JP3
JP4
N.O.
SE2SE2
SE1SE1
NCNC
NONO
MOMMOM
CONTCONT
JP1JP1
NOTES:
1) JUMPER JP3 MUST BE ON AND JP4 MUST BE OFF
WHEN USING NORMALLY CLOSE REVERSING
SENSOR.
2) JP1 TOP JUMPER MUST BE OFF (CONT). THIS SETS
THE SMC RUN TIMER ON.
3) JP1 LOWER JUMPER SETTING DEPENDS ON STOP
BUTTON.
4) CHECK SENSING EDGE FUNCTION. IF THE MOTOR
REVERSES UPON SENSING EDGE ACTIVATION WHEN
THE DOOR IS GOING UP INSTEAD OF DOWN,
REVERSE THE RED AND BLACK MOTOR LEADS.
STOPSTOP
DNDN
UPUP
SEQSEQ
1212
GNDGND
++
N.C.N.C.
N.O.N.O.
N.O.N.O.
3 BUTTON STATION3 BUTTON STATION
INTERLOCK (KEYED LOCK OUT)
NOTES:
1) A NORMALLY CLOSED INTERLOCK
(KEYED LOCK OUT) CAN BE CONNECTED IN SERIES
WITH THE N.C. STOP BUTTON.
2) SHOULD BE USED WITH REVERSING SENSORS
3) SHOWN CONFIGURED FOR A N.C. STOP BUTTON.
N.C.N.C.
INTERLOCK
N.C. REVERSING SENSOR
INSTALLERS MANUAL
PAGE: 4 OF 5
