Programming the rst individual control point
5
Programming a new (individual, group or general) control point
6
This operation can only be performed from the transmitter that was used for operation 4.1.
- Press the transmitter “PROG“ Key for approximately one second. The
motor will run for 0,5 second in one direction and then in the other.
Your transmitter is now programmed to control the motor in stable mode.
PROG 1s.
1
>>
6.1- Open the memory of the motor from the control transmitter:
- Press the “PROG” key of the transmitter for about 3 seconds. The motor
will run for 0,5 second in one direction and then in the other.
6.2- Conrm the operation from the new transmitter you want to
program:
- Press the “PROG” key of the transmitter for 1 second. The motor will run
for 0,5 second in one direction and then in the other.
PROG ≥ 3s.
1
2
>>
PROG ≤ 1s.
1
2
>>
- For group controls, repeat operations 6.1 and 6.2 for each motor in the group.
- For general controls, repeat operations 6.1 and 6.2 for each motor in the installation.
- To delete an transmitter from the memory of a motor, perform operations 6.1 with a programmed transmitter, then perform the operation 6.2
with the transmitter to be deleted.

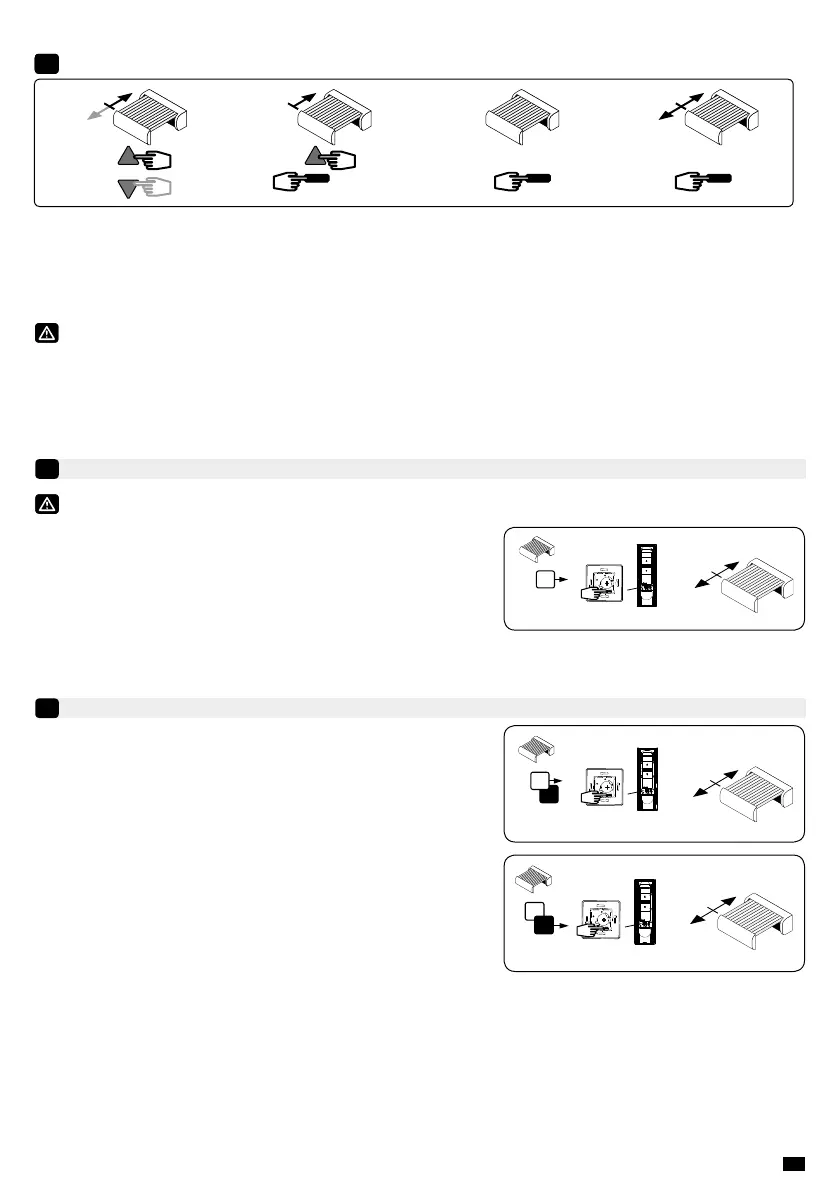

4.3- Adjustment of the down end limit:
With the T5E-SP Hz / T6E-SP Hz motor, there is no adjustment of the up end limit.
i
1 2 3
2s
4
1- Move the motor to the wished down end limit position using the “Down” and “Up” buttons.
2- To memorize the Down end limit position, press simultaneously the “Stop” and “Up” buttons. The motor will run
automatically in the up direction.
3- Before the motor reaches the Up end limit, press the “Stop” button.
4- Press 2s on the “Stop” button to conrm the adjustments. The motor will stop and will run for 0,5 second in one direc-
tion and then in the other. The operation is completed. Go to step 5.
If you do not want to use this transmitter as the individual control:
- cut the power supply (2 seconds minimum).
- repeat the operation 4.1* with a new transmitter and then go to step §5.
* In this case, the motor will run for 0,5 second in both directions, that means the limits setting is already done.
