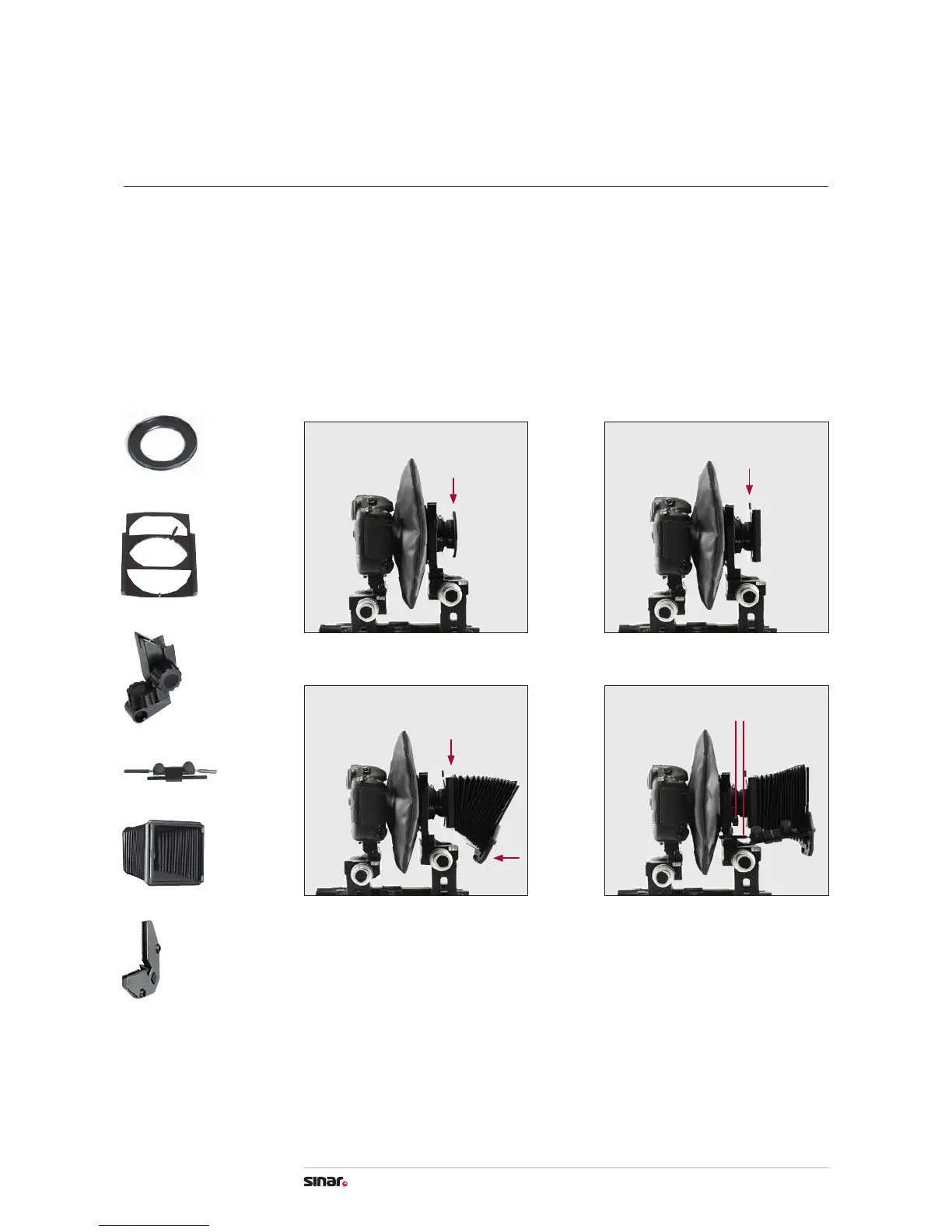

7. Attaching the Bellows Lens Hood
To attach the Sinar bellows lens hood please proceed as follows:
1. Equip your lens with the corresponding Lens Adapter Ring.
2. Attach the Bellows / Filter Holder 100 on the adapter ring and x the screw.
3. Insert the Tapered Bellows from the top into the Bellows / Filter Holder 100.
4. Attach the Bellows Clip to the bottom right corner of the Tapered Bellows.
5. Fix the Rod Holder 100 on the front standard.
6. Insert the Joint Rod 2 into the notch of the Rod Holder 100 and x the screw
on the Joint Rod.
Attaching the
Bellows Lens Hood
1
3/4
2
5/6
Rod Holder 100
Tapered Bellows 4x5/100
Lens Adapter Ring
Bellows / Filter Holder 100
Joint Rod 2
Bellows Holder Clip
5 6
13
