Sinar P-SLR - Bellows Lens Hood Assembly Part 2

7. Attaching the Bellows Lens Hood
7. Insert the other side of the Joint Rod 2 into the notch of the Bellows Clip.
Position the Bellows Lens Hood avoiding vignetting and x the screws.

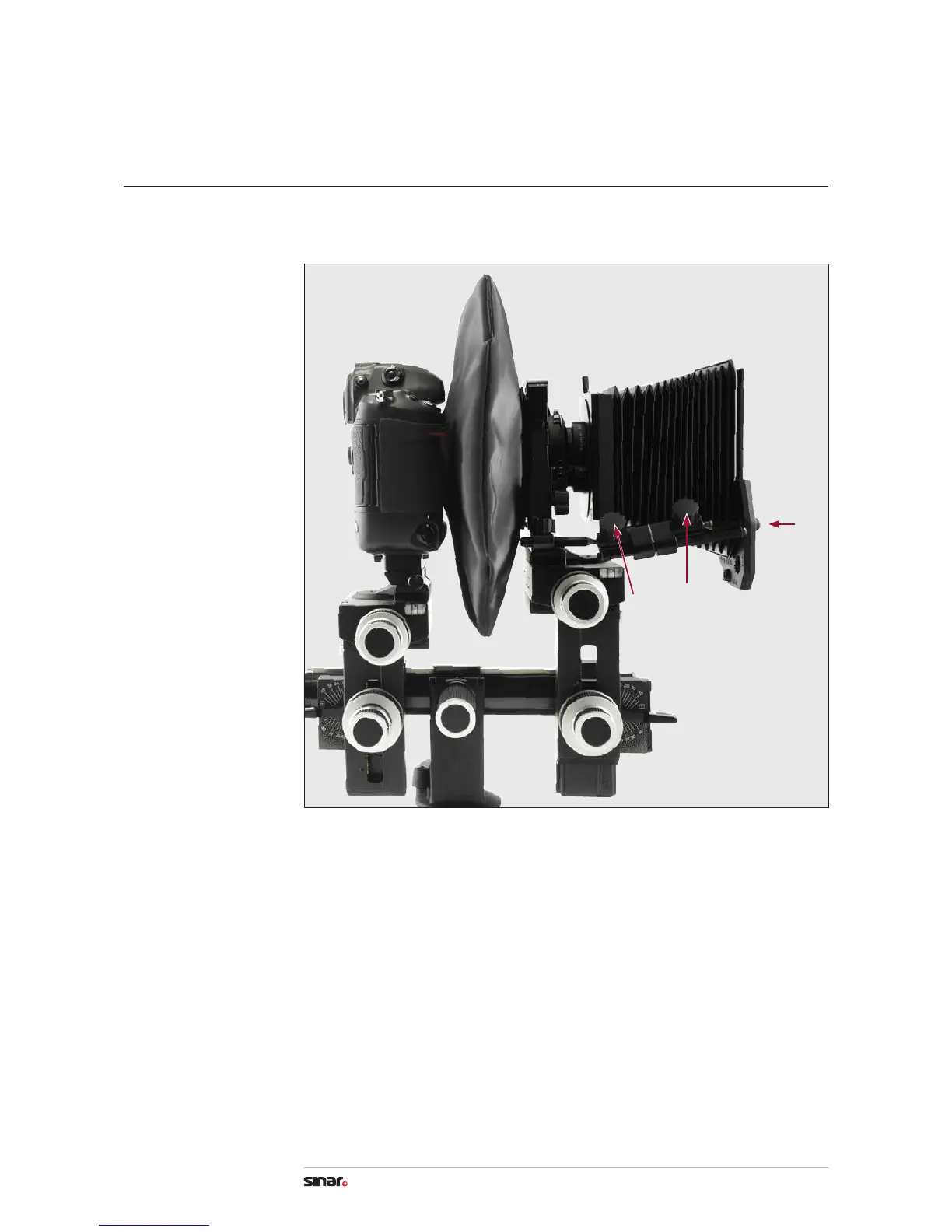

Fully assembled Bellows Lens Hood on the Sinar p-slr.
Attaching the
Bellows Lens Hood 2
14
p-slr User Manual
