Fig
.48
Fig
.49
13

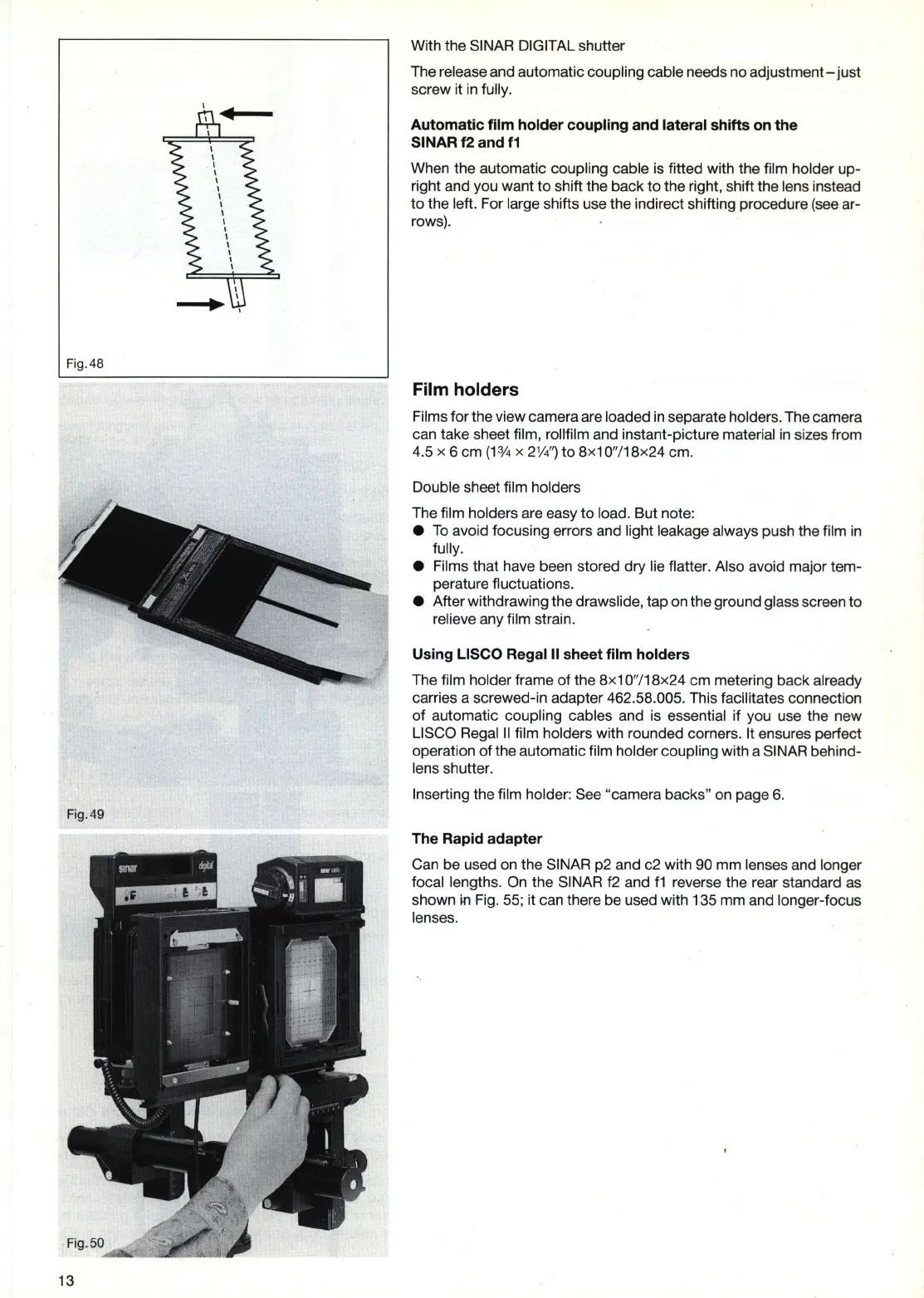

With the SINAR DIGITAL shutter
The release and automatic coupling cable needs no adjustment - just
screw it
in
fully.
Automatic film holder coupling and lateral shifts on the
SINAR f2 and
f1
When the automatic coupling cable is fitted with the film holder up-
right and you want
to
shift the back
to
the right, shift the lens instead
to
the left. For large shifts use the indirect shifting procedure (see ar-
rows). .
Film holders
Films for the view camera are loaded
in
separate holders. The camera
can take sheet film, rollfilm and instant-picture materi
al
in
sizes from
4.5 x 6 cm
(1
3/
4 x 2W1
to
8x1 0"/18x24 cm.
Double sheet film holders
The film holders are easy
to
load. But note:
•
To
avoid focusing errors and light leakage always push the film
in
fully.
• Films that have been stored dry lie flatter. Also avoid major tem-
perature fluctuations.
• After withdrawing the drawslide, tap
on
the ground glass screen to
relieve any film strain.
Using LISCO Regal II sheet film holders
The film holder frame of the 8x1 0"/18x24 cm metering back already
carries a screwed-in adapter 462.58.005. This facilitates connection
of
automatic coupling cables and
is
essential if you use the new
LISCO Regal
II
film holders with rounded corners. It ensures perfect
operation
of
the automatic film holder coupling with a SINAR behind-
lens shutter.
Inserting the film holder: See "camera backs"
on
page
6.
The Rapid adapter
Can be used on the SINAR p2 and c2 with 90 mm lenses and longer
focal lengths.
On
the SINAR
f2
and
f1
reverse the rear standard
as
shown
in
Fig.
55
; it can there be used with 135 mm and longer-focus
lenses.
