Sinar p2 - The Cameras; Operating Controls of the SINAR p2 and c2

Fi g.1
Contents The cameras 2
- Controls 2
- Zero settings
3
- Mounting the camera 4
- The spirit levels 4
- The base rail 4
- Changing components 4
- The bellows
5
- Camera backs
5
- Switching formats on the SINAR p2 and c2
6
- Switching formats on the SINAR f2 and f1
8
- The convertible camera
8
- The bellows hood 9
- Viewing aids
9
- Transport
10
The
view camera movements
10
2

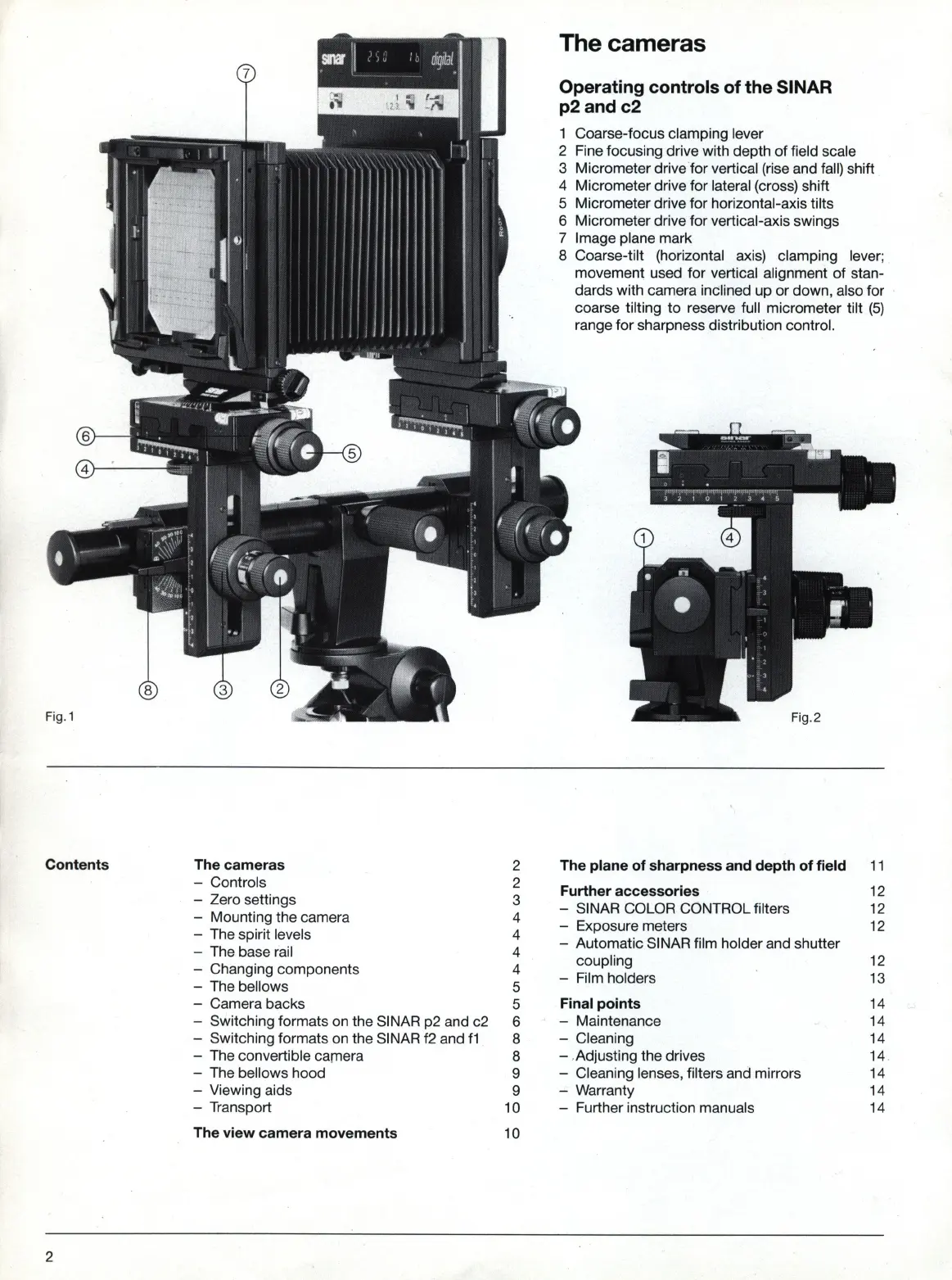

The cameras
Operating controls of the SINAR
p2and c2
1 Coarse-focus clamping lever
2 Fine focusing drive with depth of field scale
3 Micrometer drive for vertical (rise and fall) shift
4 Micrometer drive for lateral (cross) shift
5 Micrometer drive for horizontal-axis tilts
6 Micrometer drive for vertical-axis swings
7 Image plane mark
8 Coarse-tilt (horizontal axis) clamping lever;
movement used for vertical alignment of stan-
dards with camera inclined up or down, also for
coarse tilting to reserve full micrometer tilt
(5)
range for sharpness distribution control.
The plane
of sharpness and depth of field 11
Further accessories
12
- SINAR COLOR CONTROL filters
12
- Exposure meters 12
- Automatic SINAR film holder and shutter
coupling
12
- Film holders
13
Final points
14
- Maintenance
14
- Cleaning 14
- .Adjusting the drives 14
- Cleaning lenses, filters and mirrors 14
- Warranty
14
- Further instruction manuals
14
