DC Inverter UNI SPLIT Series Duct Type Unit
32
Unit: mm

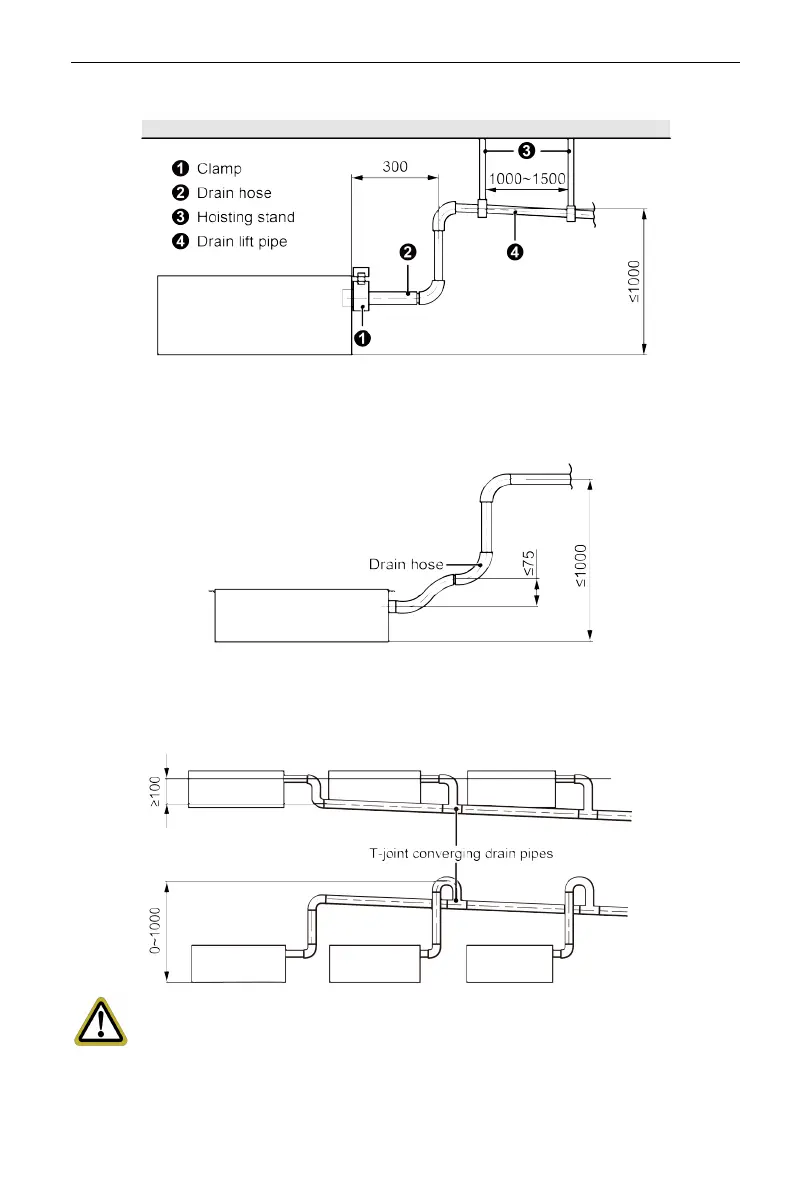

The vertical height of the drain hose should be 75mm or less so that it is
unnecessary for the drain port to withstand additional force.
Unit: mm
When multiple drain hoses are used, their installation should be performed as
shown in the figure below.
Unit: mm
NOTE:
The specification of the selected merged drainage pipe shall be
appropriate for the operation capacity of the unit.
