DC Inverter UNI SPLIT Series
Duct
Type Unit
40
Unit: mm
(3) How to connect the connection wire and power cord.

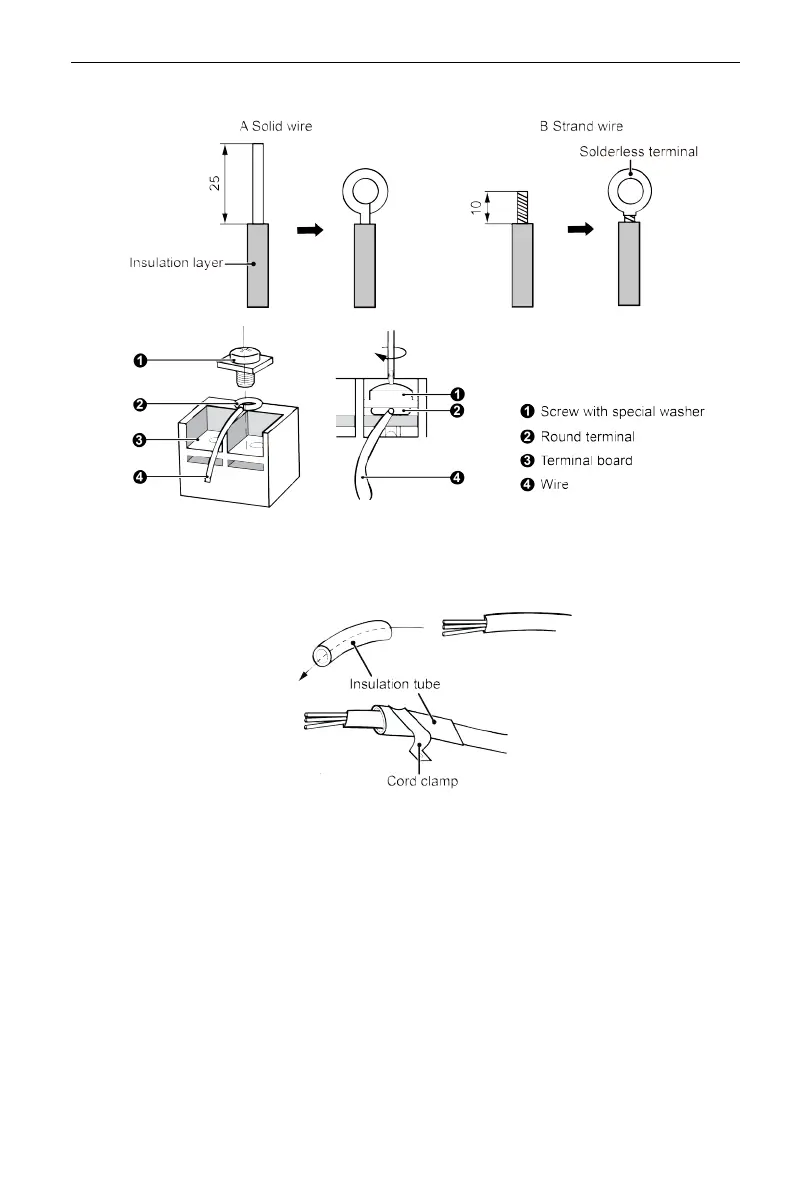

Lead the connection wire and power cord through the insulation tube. Then fix
the wires with wire clamps (as shown in the following figure).
For
the
indoor
unit
whose
packaging
materials
are
with
the
buckle
magnetic
ring.
The
engineering
electric
wires
(live
wire,
neutral
wire,
earthing
wire
and
communication cable)
should pass through the
buckle
magnetic ring before entering
into
the
unit.
The
magnetic
ring
should
be
fixed
reliably
by
cable
tie.
The
engineering wires and
buckle
magnetic ring are not allowed to
touch sharp edges.
(Note
：
Only
for
ASD-48BI2 units.)
