Sinclair ASH-12AIE2 Service Manual

5
Technical Information
Service Manual

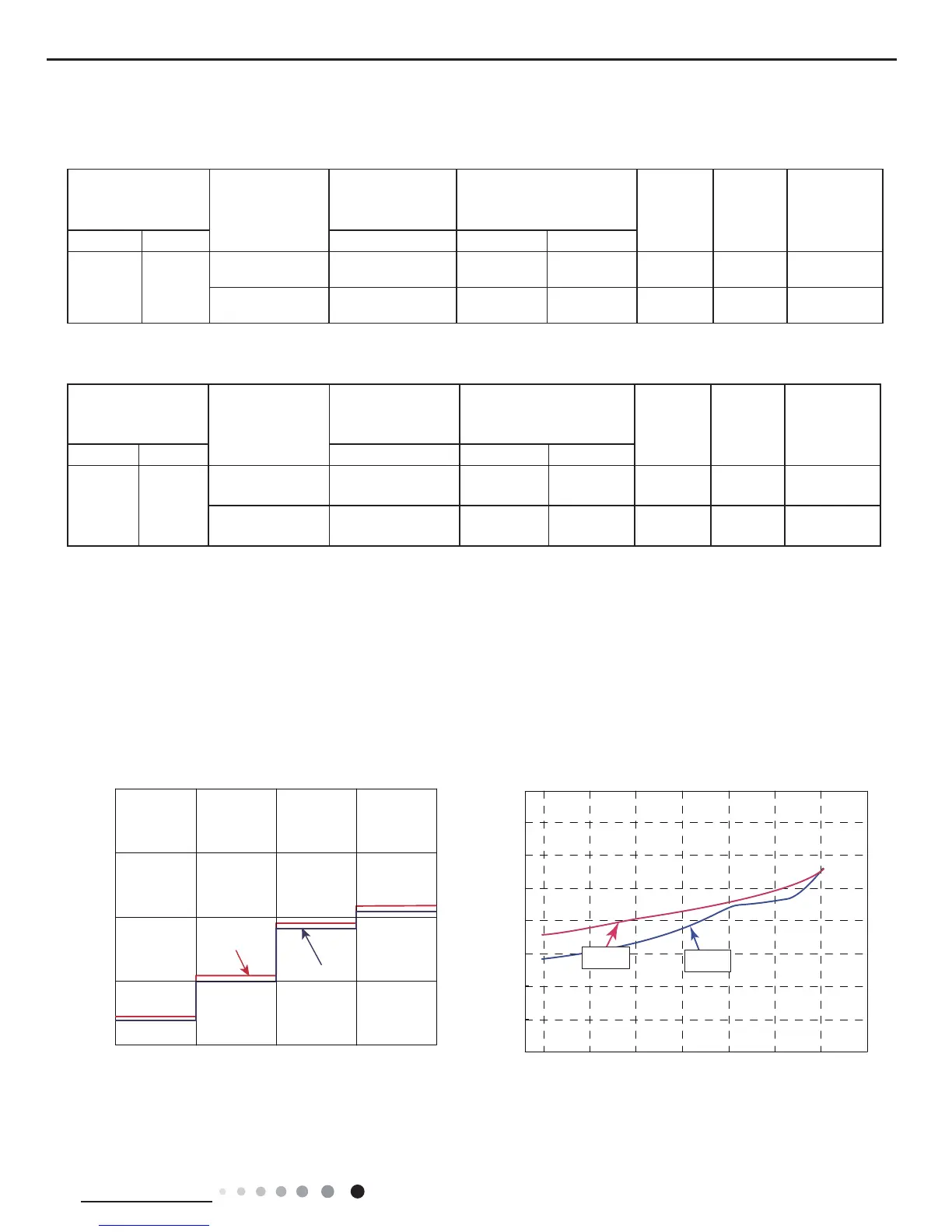

2.4 Cooling and Heating Data Sheet in Rated Frequency
Instruction:
T1: Inlet and outlet pipe temperature of evaporator
T2: Inlet and outlet pipe temperature of condenser
P: Pressure at the side of big valve
Connection pipe length:5 m.
Cooling:
Heating:
Rated cooling
condition(°C) (DB/WB)
Model
Pressure of gas pipe
connecting indoor
and outdoor unit
Inlet and outlet pipe
temperature of heat
exchanger
Fan speed
of indoor
unit
Fan speed
of outdoor
unit
Compressor
revolution (rps)
Indoor Outdoor P (MPa) T1 (°C) T2 (°C)
27/19 35/24
ASH-09AIE2 0.9 to 1.1 12 to 14 75 to 37 Super High High 63
ASH-12AIE2 0.8 to 1.0 10 to 12 85 to 43 Super High High 70
Rated heating
condition(°C) (DB/WB)
Model
Pressure of gas pipe
connecting indoor
and outdoor unit
Inlet and outlet pipe
temperature of heat
exchanger
Fan speed
of indoor
unit
Fan speed
of outdoor
unit
Compressor
revolution (rps)
Indoor Outdoor P (MPa) T1 (°C) T2 (°C)
20/15 7/6
ASH-09AIE2
2.4 to 2.6 70 to 35
2 to 4
Super High High
69
ASH-12AIE2 2.4 to 2.6 70 to 35 2 to 4 Super High High 72
2.5 Noise Curve
Indoor side noise when blowing Outdoor side noise when blowing
Indoor fan motor rotating speed
Compressor frequency(Hz)
Noise/dB(A)
50
60
30
40
20
Low
Middle
High
Super High
ASH-12AIE2
ASH-09AIE2
40
42
44
46
48
50
52
54
56
20 4030 50 60 70 80
90
Noise dB(A)
Cooling
Heating
