4 Use protective sleeve to wrap the wiring terminal, stick the protective sleeve and
then use cable tie to bundle them tightly.
Note: 1. The fixing position of cable must be at both ends of wiring terminal.
2. Before installing the front panel of indoor unit, put the thermal insulating
jacket on top of the air duct.
front panel
Insulating
sheath
wind-path

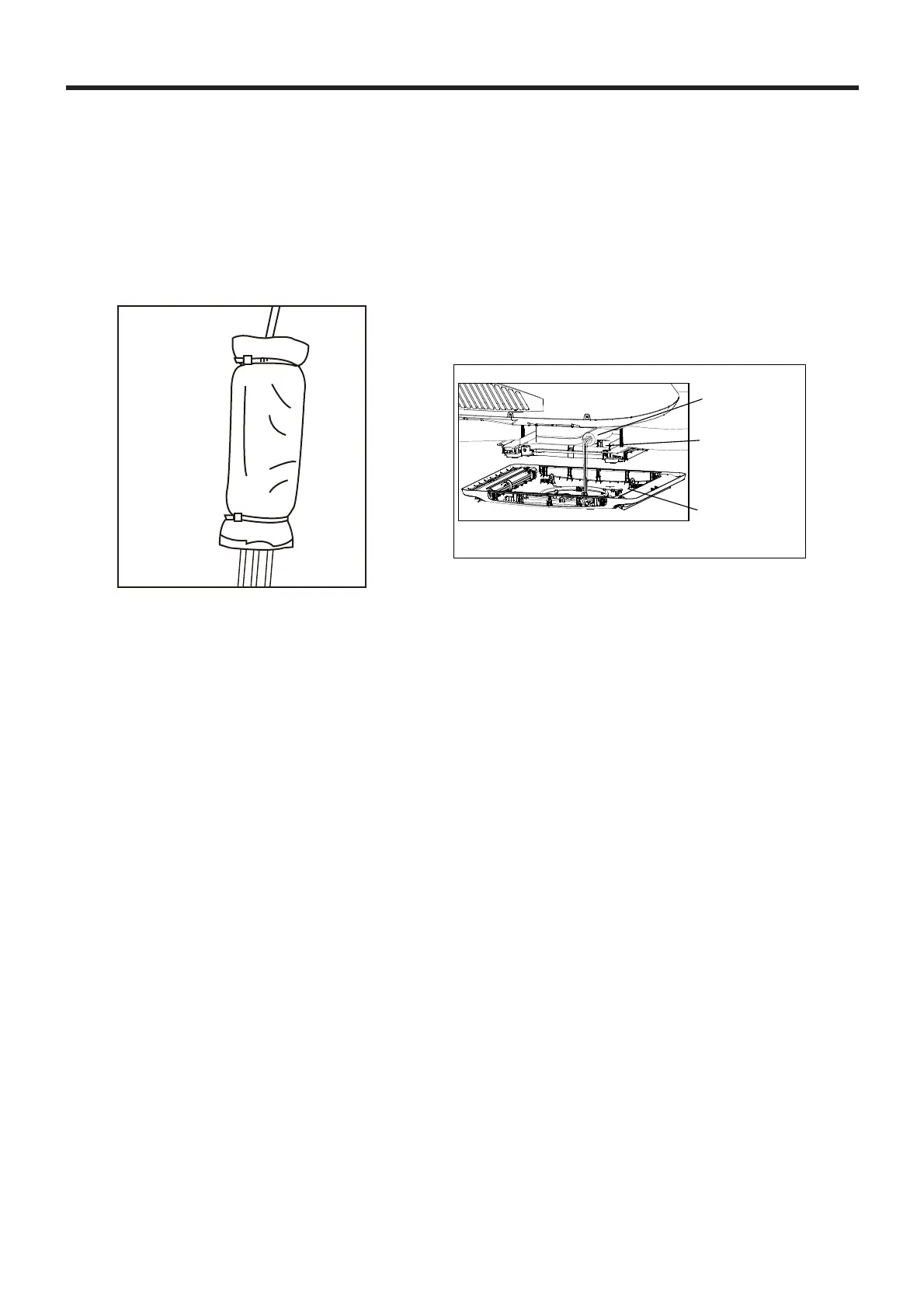

Figure 8-1
Figure 8-2
