Sinclair ASV-35BS User Manual

- 14 -
STEP 3-MOUNTING OUTDOOR UNIT
1.Open the package and take out the outdoor
unit
2.Put the outdoor unit at the mounting plate of
switchover opening.

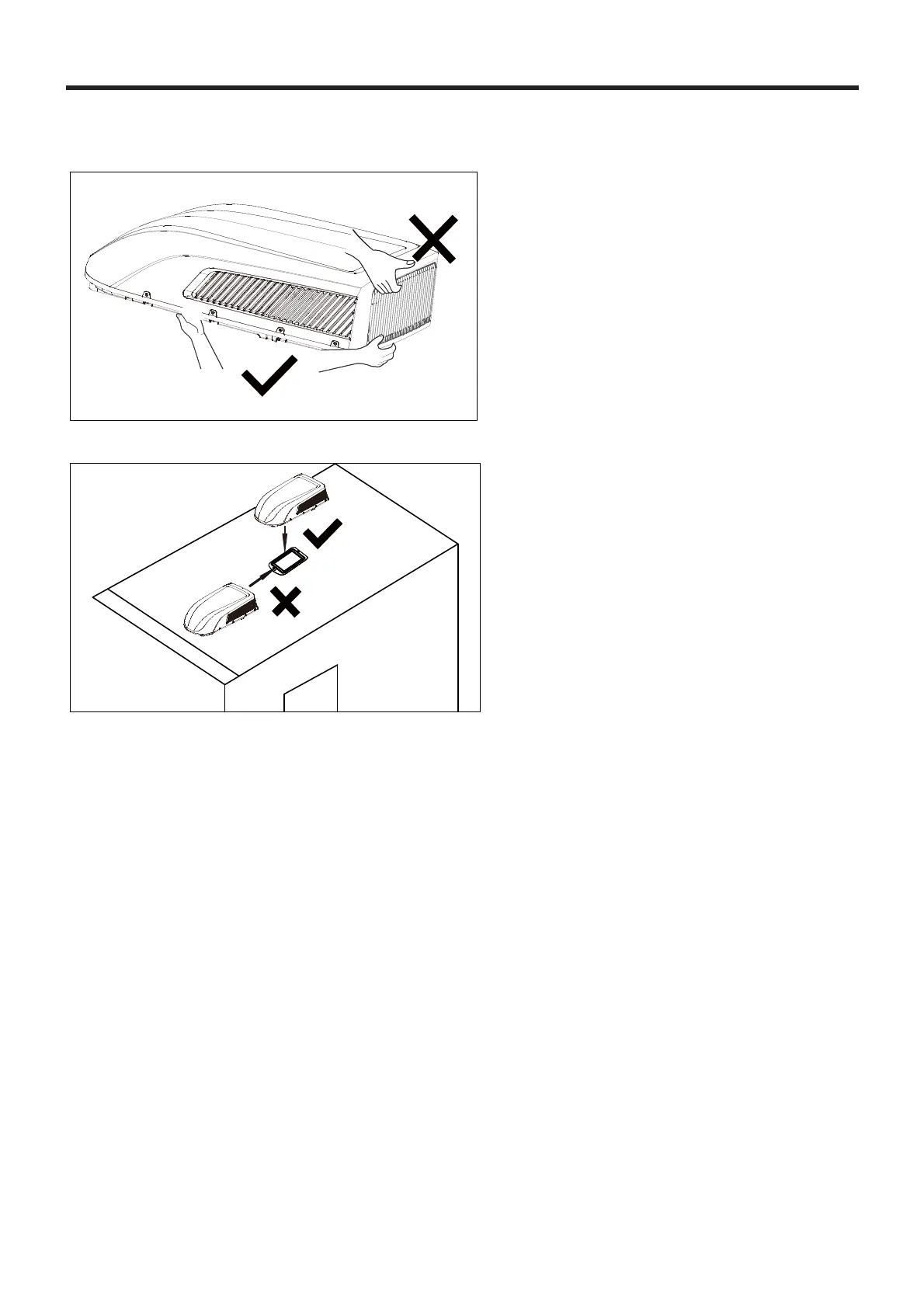

1) When taking out the outdoor unit after
unpacking, do not lift the air outlet grille at
the back of outer case
1) Lift the outdoor unit. During the movement,
it is strictly forbidden to hoist the plastic outer
caser of outer unit of the air conditioner.
2) Put it on the mounting plate of the prepared
switchover opening to make the sealing strip
of outdoor unit match with the groove on the
surface of the mounting plate.Do not drag the
outdoor unit. Otherwise, the seal may fall off.
(see Figure 4-1).
Figure 4-1
Figure 4-2
