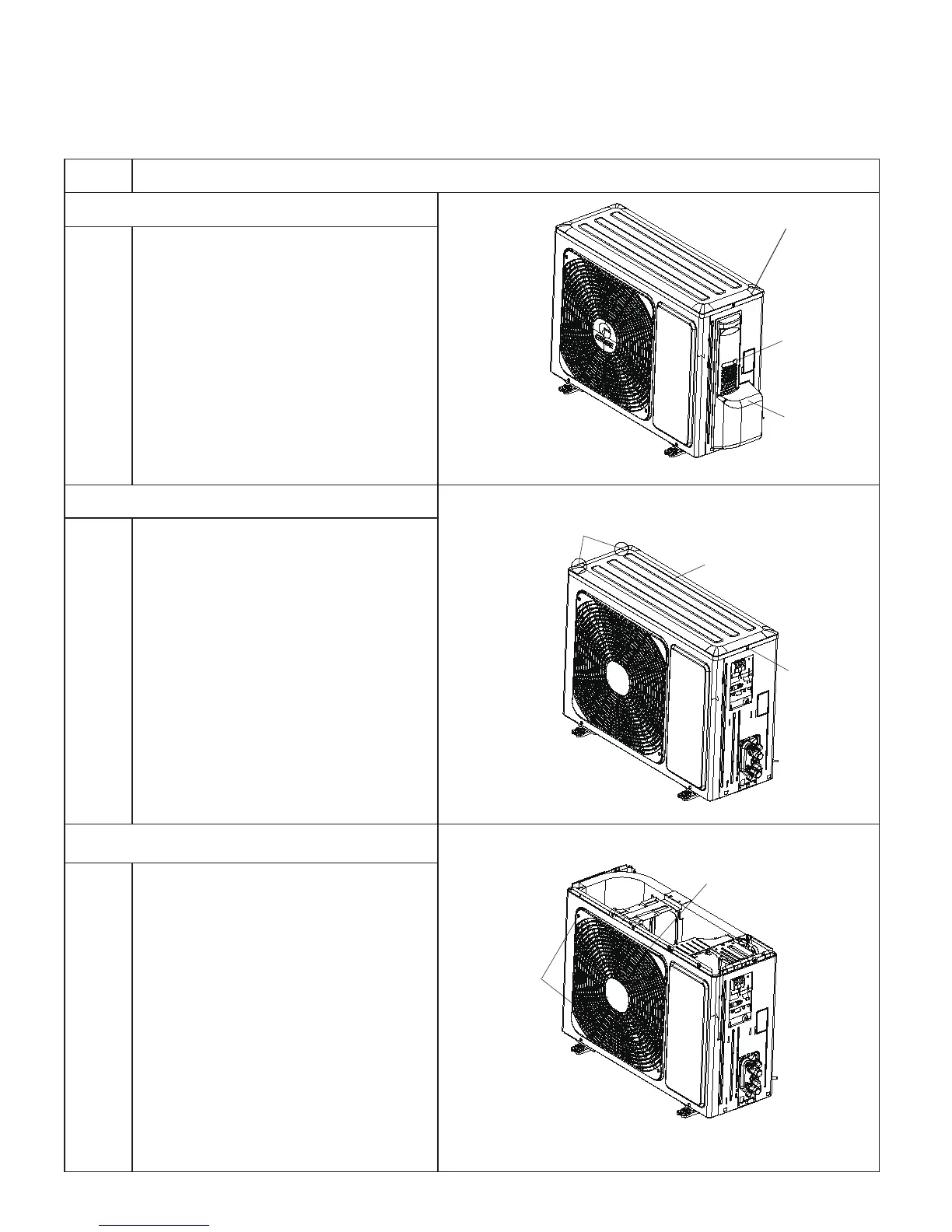

11.2 Removal Procedure of Outdoor Unit
2. Remove top panel
1. Remove big handle
Top panel
Right side plate
Big handle
Screw
Screws
Screw
Remove the screw xing big handle; slide out
the big handle upwards to make the clasp of
big handle separate from the groove of right
side plate, and then remove the big handle.
Remove the screws xing top panel and
then remove the top panel.
ProcedureStep
Screws
Front grille
Remove connection screws between the front
grille and the front panel. Then remove the
front grille.
3. Remove front grille
